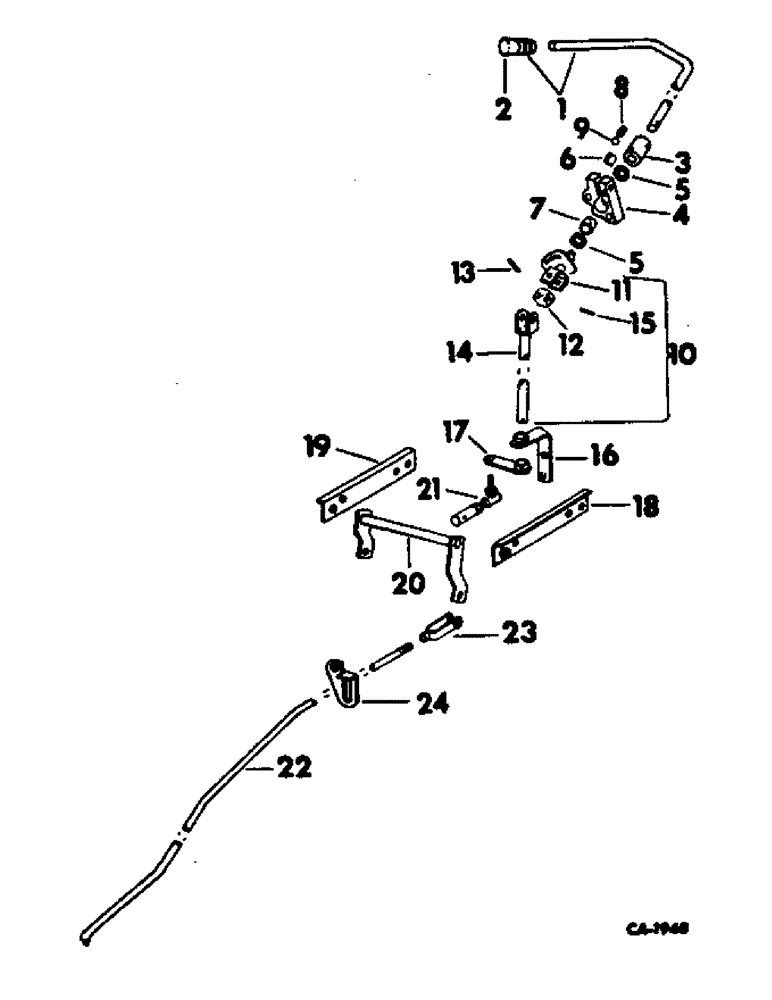

Запчасти Case IH 1566 (12-10) - POWER, GOVERNOR AND FUEL SHUT-OFF CONTROLS, 1566 TRACTORS Power

1

533206R93

HANDLE

ASSY, governor control

1шт.

2

397931R2

GRIP

1шт.

2

397931R2GV

SPRING

Value, Knob

1шт.

3

533208R1

COUPLING

governor control

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

4

104084C1

CLAMP

friction adjusting

1шт.

181004

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

SCREW, 5/16-24 x 1-1/8 znd hex-hd cap

2шт.

5

535684R1

WASHER

lever stop felt

2шт.

6

535685R1

SPACER

lever stop felt

1шт.

7

533210R1

BUSHING,19.07mm ID x 20.79mm OD x 17.02mm L

BEARING, friction

1шт.

20057R1

NUT

SCREW, 5/16-24 x 1-1/4 znd hex-hd cap

1шт.

178383R1

WASHER, 17/32 x 1 x 16 ga C-Z

1шт.

8

400209R1

VALVE SPRING

SPRING, governor control poppet

1шт.

9

16011R1

BALL

11/32 cr-stl

1шт.

10

67812C91

JOINT

AND SHAFT ASSY, governor control

1шт.

11

67813C1

STOP

ASSY, lever

1шт.

12

382691R1

CROSS

BLOCK, universal joint center

1шт.

13

382692R1

PIN

center block

1шт.

14

382694R11

ROD

SHAFT ASSY, governor control lower

1шт.

15

385681R1

PIN

1шт.

16

382695R11

BRACKET

SUPPORT ASSY, governor control shaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

17

392955R11

LEVER

ASSY, governor control rod operating

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

18

533215R11

BRACKET ASSY, cross shaft support LH

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

1шт.

19

533216R11

BRACKET ASSY, cross shaft support RH

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

1шт.

20

533217R1

SHAFT

ASSY, governor control cross

1шт.

396349R1

BOLT (SPREADER),Hex, 3/8" - 24 x 0.72"

PIN, cross shaft support

2шт.

21

393354R91

BALL JOINT

JOINT ASSY, double end ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

2шт.

21496R1

WASHER

11/32 x 3/4 x .120

1шт.

22

67815C1

ROD

governor control front

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

95-11028

WASHER,1/4"

9/32 x 11/16 x .065

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

23

104037

CLEVIS

5/16-24 x 2-1/4 adj rod end

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN, 5/16 x 31/32 rod end

1шт.

21496R1

WASHER

11/32 x 3/4 x .120

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

179814

SPACER

1шт.

24

533588R1

GUIDE

governor control rod

1шт.
