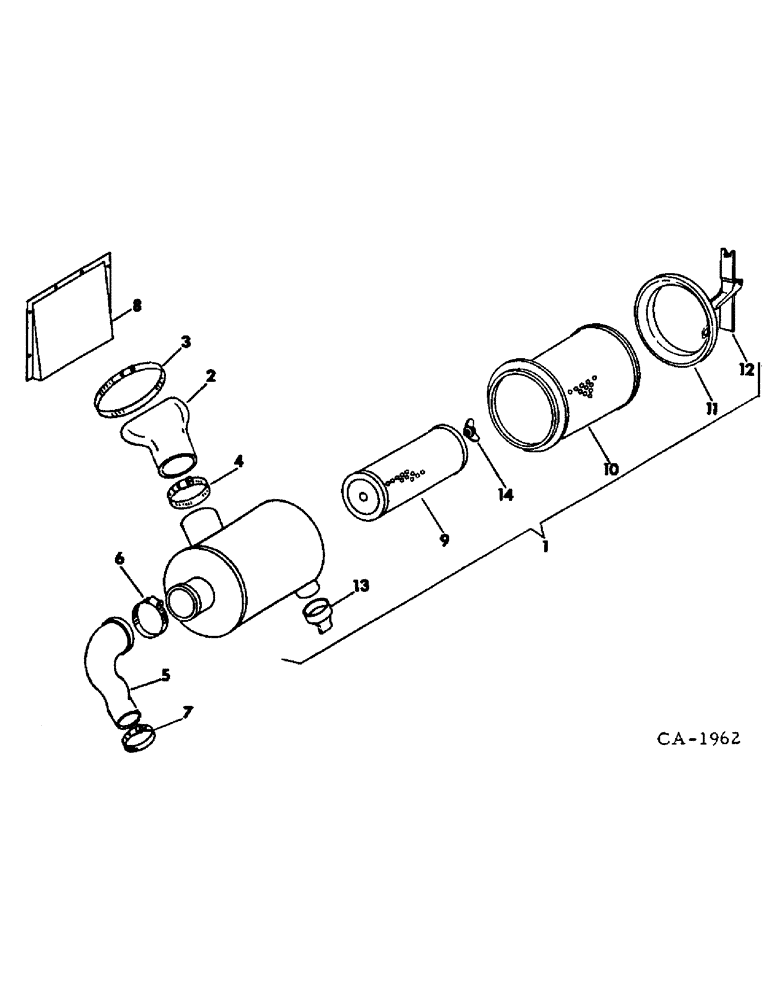

Запчасти Case IH 1566 (12-02) - POWER, AIR CLEANER AND CONNECTIONS, 1566 TRACTORS Power

1

67685C93

FILTER CARTRIDGE

CLEANER ASSY, air, composed of ref nos 9, 10, 12 and 13

1шт.

179902

BOLT,Hex, 9/16" - 12 x 1", Gr 5

SCREW, 9/16-12 x 1 hex-hd cap

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

NLS

NO LONGER SERVICED

19/32 x 1-3/16 x 13 ga

1шт.

2

532455R1

INTAKE AIR HOSE

HOSE, air cleaner intake

1шт.

3

427312R91

HOSE CLAMP,#100, 5.88/6.75 Type F Worm

CLAMP, intake hose front

1шт.

4

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP, intake hose rear

1шт.

5

67684C1

INTAKE AIR HOSE,101.60 mm ID x 138.00 mm

- Air cleaner outlet 101.60 mm ID x 138.00 mm

1шт.

6

397270R1

HOSE CLAMP,#72, 4.06/5.00 Type F Worm, W/liner

CLAMP, air cleaner outlet hose front

1шт.

7

400446R1

HOSE CLAMP,#56, 3.06/4.00 Type F Worm, W/liner

CLAMP, air cleaner outlet hose rear

1шт.

8

120201C1

BAFFLE

pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

9

67975C1

AIR FILTER

ELEMENT, safety

1шт.

10

67974C2

ELEMENT

filter

1шт.

11

NOT USED IN THIS APPLICATION

1шт.

12

67980C1

LATCH

ASSY

1шт.

13

383734R2

VALVE

unloader

1шт.

14

NOT USED IN THIS APPLICATION

1шт.
