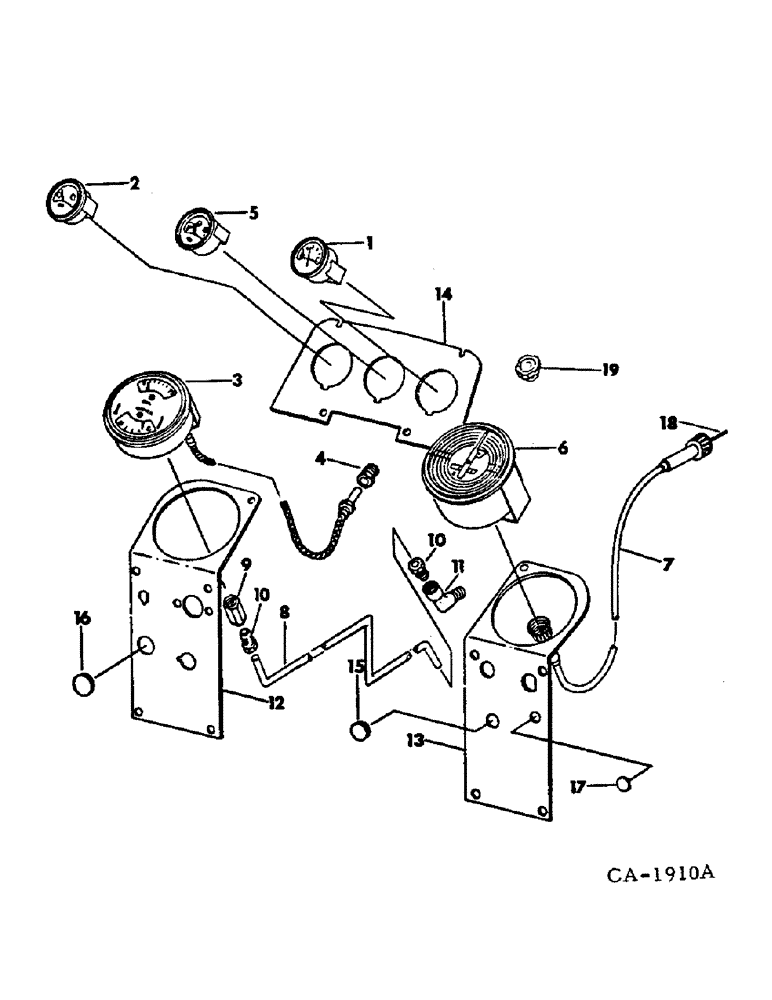

Запчасти Case IH 1566 (11-02) - INSTRUMENTS, INSTRUMENT PANELS AND GAUGES, 1566 TRACTORS Instruments

1

533990R1

GAUGE ASSY.

GAUGE ASSY, charge indicator

1шт.

2

533991R1

GAUGE ASSY.

INDICATOR ASSY, electric air cleaner

1шт.

3

534057R2

CLUSTER

OIL AND TEMP. GAUGE

1шт.

4

51510DA

RESTRICTOR

BUSHING, capillary tube bulb installation

1шт.

5

533992R1

GAUGE ASSY.

GAUGE ASSY, fuel

1шт.

6

68265C1

SPEEDOMETER

GAUGE ASSY, speedometer/tachometer

1шт.

7

396386R93

CABLE PULLING GRIP

CABLE ASSY, tachometer flexible drive, Includes ref no. 18

1шт.

8

533169R1

PIPE CLAMP

PIPE, oil pressure gauge

1шт.

9

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, oil pressure gauge pipe, to connect pipe to gauge

1шт.

10

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 hi-duty tube fitting, oil pressure gauge pipe

2шт.

11

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

5/16-24 hi-duty tube fitting male pipe, oil pressure gauge pipe

1шт.

12

532421R1

PANEL ASSY, instrument LH

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 cdp hex. washer hd cap, panel mounting

5шт.

13

532423R1

PANEL ASSY, instrument RH

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 cdp hex. washer hd cap, panel mounting

5шт.

14

532425R1

PANEL

ASSY, instrument upper

1шт.

171730

GUARD

SCREW, 10-32 x 3/8 C-Z slt-pan-hd tap.

4шт.

15

374342R1

PLUG

horn switch hole button

1шт.

16

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 button, cigarette lighter hole

1шт.

17

383621R1

PLUG, choke control hole button

1шт.

18

401140R2

CABLE ASSY.

CORE ASSY, tachometer flexible drive cable, part of cable 396386R93

1шт.

19

71242C1

KNOB

speedometer/tachometer gauge

1шт.

CLIPS, tachometer & speedometer cables, refer to clips listing, group 8

1шт.

671806C1

DRIVE

ADAPTER tachometer, model 1566, see eng 5 catalog, section K, Figure 18

1шт.
