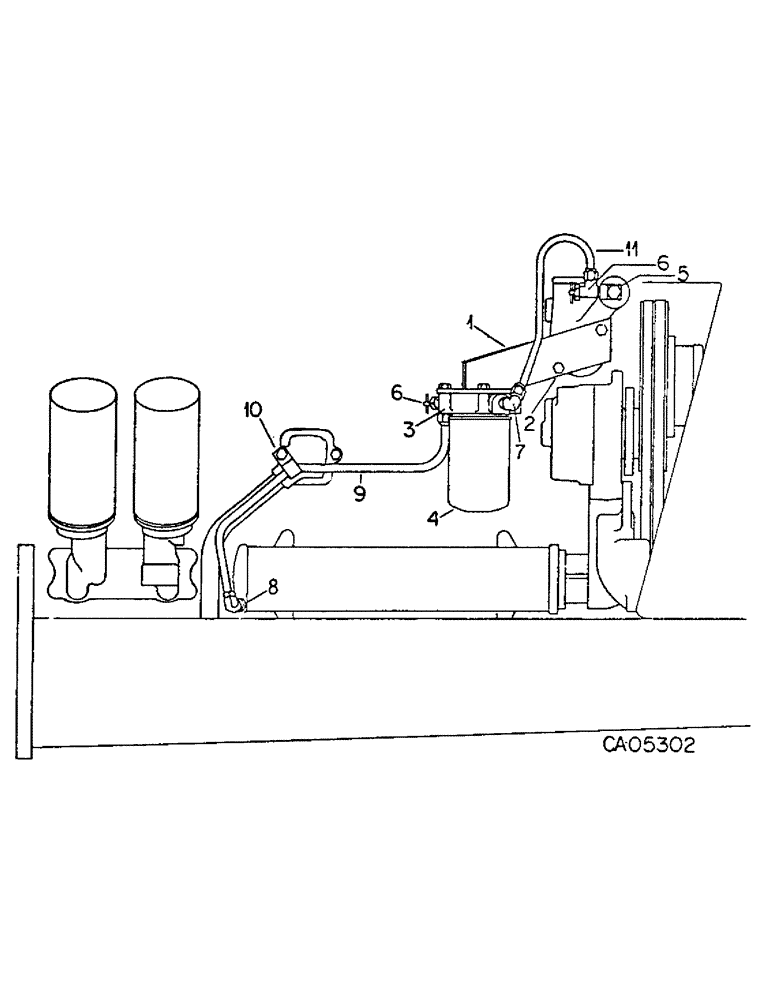

Запчасти Case IH 1566 (06-07) - COOLING, COOLANT FILTER, CONDITIONER Cooling

121897C92

FILTER

PARTS ACCESSORY, coolant filter conditioner, Consists of ref. nos. 1 thur 11 plus

1шт.

11224

TAPERED BEARING

ADAPTER

1шт.

144041

SEAL,3/4" NPT Male x 3/8" NPT Fem

OR

1шт.

308576R1

CLAMP

1шт.

675384C1

GASKET

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG

1шт.

1

121881C1

BRACKET

ASSY, water filter

1шт.

2

SA2172

SPACER,3/8" Pipe x 1/2"

3/8 x 1/2 std pipe

2шт.

24844R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

2шт.

3

427446C1

HEAD

BASE, water filter

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

4

462816C1

ELEMENT

water filter

1шт.

5

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

3/8-18 brass auto pipe

1шт.

6

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE, shut off

2шт.

7

606618C1

ELBOW UNION

ELBOW, water filter base

1шт.

8

121750C1

ELBOW

oil cooler

1шт.

9

TUBE, water inlet, Use 23.1 in. of 3/8 OD tubing from a 50 ft. roll marked 995063R1, plus 1 nut 137399, 1 nut 256205R1 and 1 sleeve 265204R1

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, water inlet tube hold-down

1шт.

11

TUBE, water outlet, Use 14 in. of 3/8 OD tubing from a 50 ft. roll marked 995063R1, plus 2 nuts 265R1 and two sleeves 256204R1

1шт.

64889C1

CABLE SHEATH

CONDUIT, alternator wire insulation

1шт.
