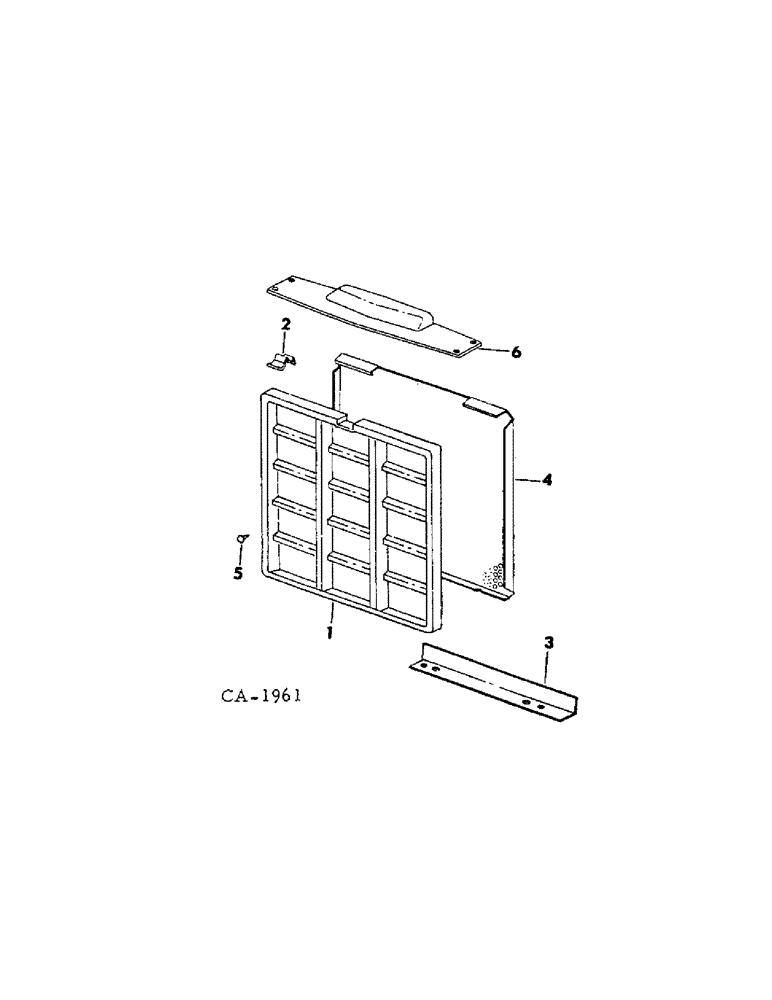

Запчасти Case IH 1566 (06-05) - COOLING, RADIATOR SCREEN AND GRILLE Cooling

1

531231R1

GRILLE ASSY

GRILLE, radiator

1шт.

2

531223R1

SPRING CLIP

LATCH, radiator grille

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-pan-hd mach, die cast aluminum grille

2шт.

27581R1

SCREW, 1/4-20 x 3/4 pan-hd cr rec tapping type bf, plastic grille

2шт.

3

531224R1

BAFFLE, radiator air

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

4

531233R2

GRILLE ASSY

SCREEN, radiator grille

1шт.

5

368175R1

BUMPER

grille screen

4шт.

6

531221R2

COVER ASSY

COVER, head light support

1шт.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 hex-washer-hd cap

4шт.
