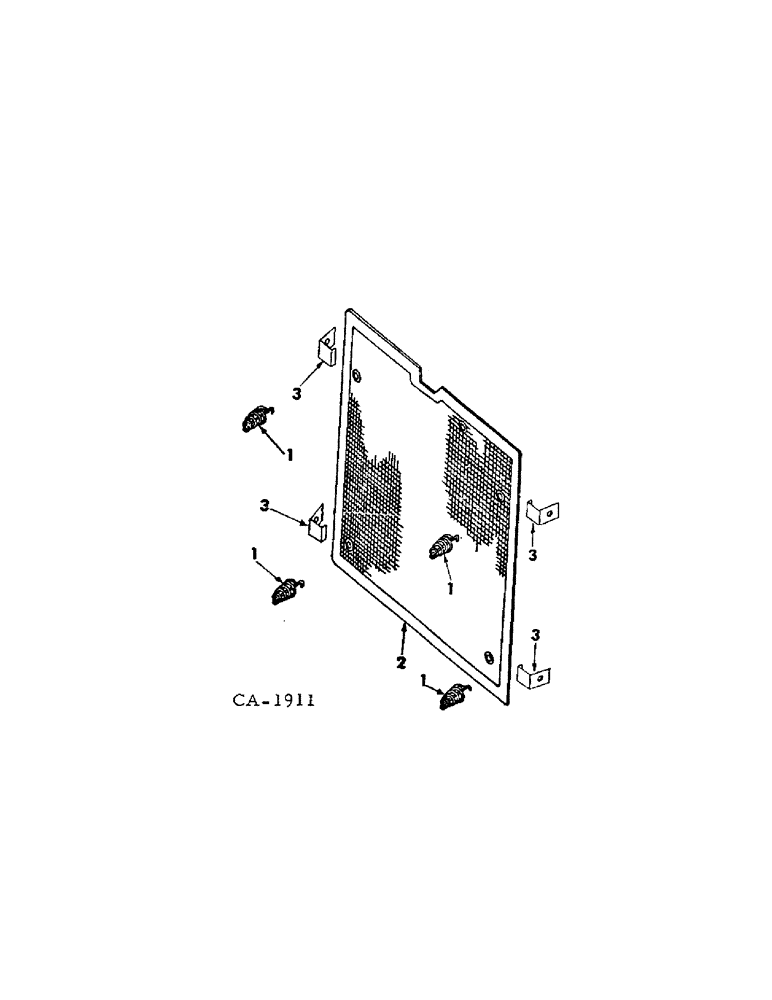

Запчасти Case IH 1566 (06-05[A]) - COOLING, RADIATOR AUXILIARY SCREEN Cooling

1

534635R91

STRIPPER PACKAGE

PARTS ACCESSORY, radiator auxiliary screen

1шт.

392525R1

FASTENER

coil spring, radiator auxiliary screen

4шт.

2

SCREEN, radiator auxiliary, Not available separately order parts accessory, 534635R91

1шт.

3

534634R1

CLIP

screen fastener, radiator auxiliary

4шт.

436765

SCREW, 12-24 x 3/8 C-Z slt-pan-hd mach, radiator auxiliary screen

4шт.

492-11012

LOCK WASHER,#12

Washer, Lock, , Radiator auxiliary screen #12

4шт.

225-14112

NUT,#12-24

12-24 znd hex. mach screw, radiator auxiliary screen

4шт.
