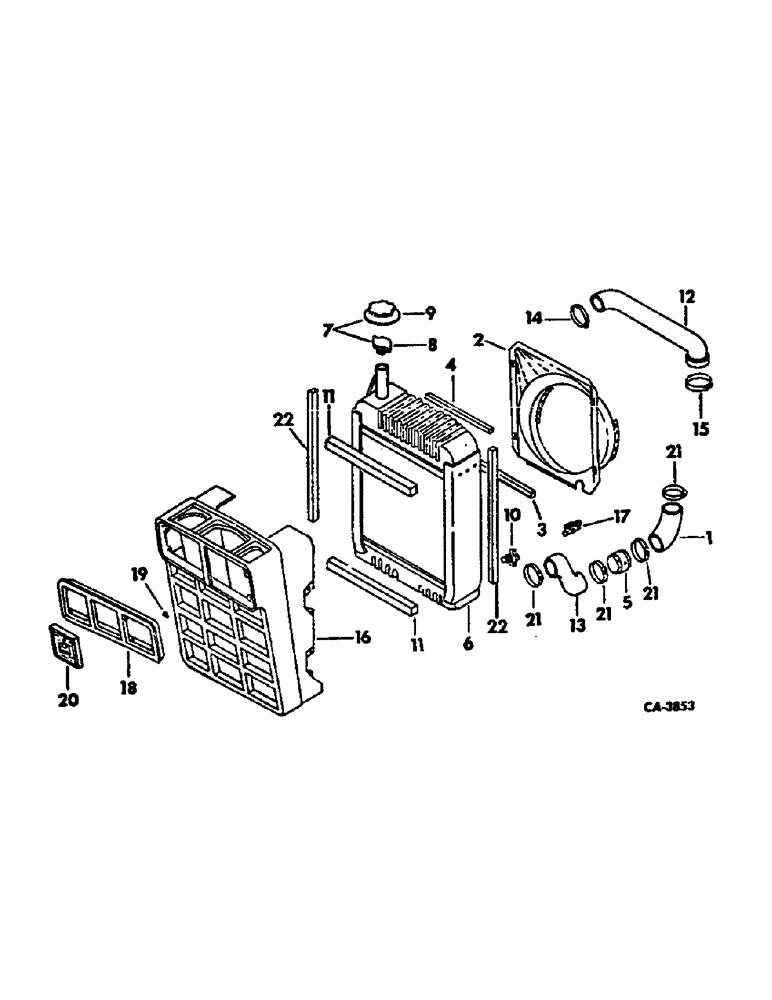

Запчасти Case IH 1566 (06-04) - COOLING, RADIATOR AND CONNECTIONS, 1568 TRACTORS Cooling

1

538103R1

RADIATOR HOSE,2.62" ID x 4.60", SAE 20R4, CLASS 5C, SAE 20R4 CLASS R, GRADE 1A.

Outlet Rear 2.62" ID x 4.60", SAE 20R4, CLASS 5C, SAE 20R4 CLASS R, GRADE 1A.

1шт.

2

538090R1

SHROUD ASSY, fan

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

147697

WASHER

.312 x .875 x .051

5шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

SEAL, fan shroud, lower, Furnish 15.0 in. from a 4 ft. length marked 73213C1

1шт.

4

SEAL, fan shroud, upper, Furnish 19.6 in. from a 4 ft. length marked 73213C1

1шт.

5

538101R1

TUBE ASSY, radiator outlet

1шт.

6

67394C2

RADIATOR

ASSY, less filler cap

1шт.

7

532672R91

CAP

W/COVER, radiator

1шт.

8

532673R1

CAP

ASSY

1шт.

9

532674R1

PLUG

COVER

1шт.

10

614201R1

VALVE

COCK, radiator drain

1шт.

11

SEAL, radiator air, Furnish 22.5 in. from a 4 ft. length marked 73213C1

2шт.

12

538099R1

RADIATOR HOSE,60.40 mm ID x 416.60 mm, SAE 20 R4 CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

Inlet 60.40 mm ID x 416.60 mm, SAE 20 R4 CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

1шт.

13

538100R1

RADIATOR HOSE,2.50" ID, 2.62" ID x 9.90", SAE 20R4 CLASS CS. GRADE 1A.

2.50" ID, 2.62" mm ID X 9.90", SAE 20R4 CLASS CS. GRADE 1A., Outlet Front

1шт.

14

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose

1шт.

15

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, HOSE

1шт.

16

71782C91

SUPPORT ASSY.

SUPPORT, radiator and grille

1шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

104520C1

PLUG

radiator support

1шт.

17

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

18

531217R1

SUPPORT ASSY.

SUPPORT, head light

1шт.

156265

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

1/4-20 x 1 cr-red-f-hd mach

2шт.

19

531225R1

SQ HOLE WASHER

head light support

6шт.

20

531218R2

SCREEN

head light support

1шт.

21

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP, no. 44 hose

4шт.

22

SEAL, radiator to support side, Furnish 28.0 in. from a 4 ft. length marked 73213C1

2шт.

STRIP, radiator support panel foam, Use in 3 inch strip from a 4 ft. length marked 73213C1

1шт.
