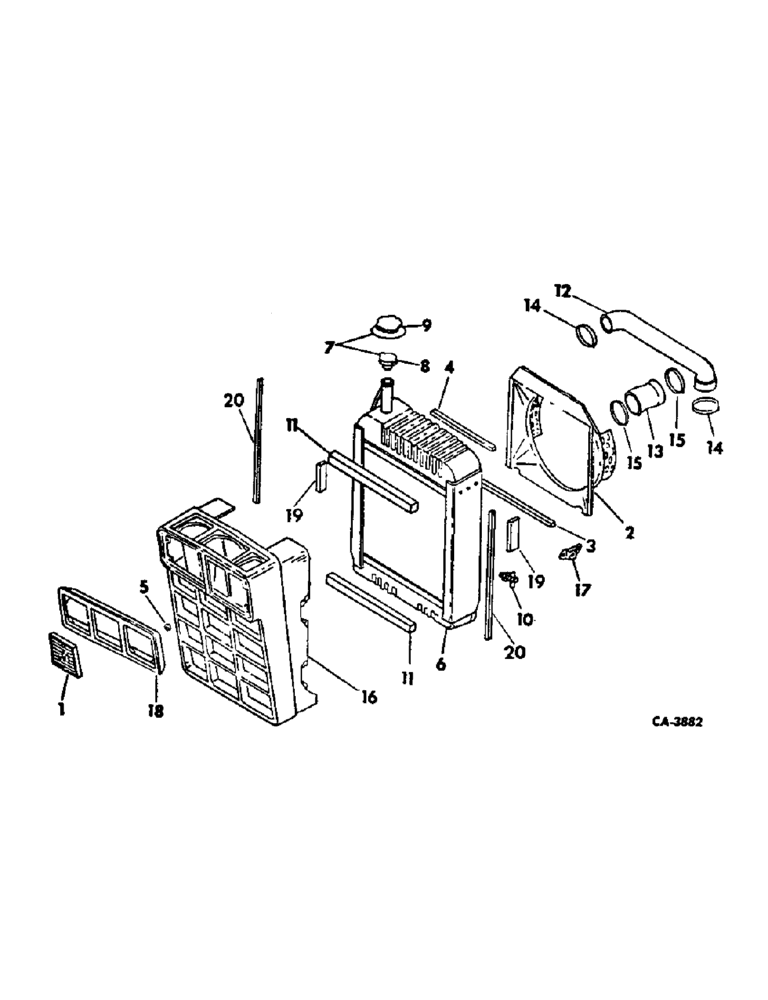

Запчасти Case IH 1566 (06-03) - COOLING, RADIATOR AND CONNECTIONS, 1566 TRACTOR Cooling

1

531218R2

SCREEN

head light support

1шт.

2

67391C1

SHROUD

ASSY, fan

1шт.

.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

3

SEAL, fan shroud, lower, Furnish 15.0 in. from a 4 ft. length marked 73213C1

1шт.

4

SEAL, fan shroud, upper, Furnish 19.6 in. from a 4 ft. length marked 73213C1

1шт.

5

531225R1

SQ HOLE WASHER

head light support

6шт.

6

121725C1

RADIATOR

ASSY, less filler cap

1шт.

.

68429C1

CLIP

radiator overflow hose

1шт.

.

306132C1

CABLE TIE,14.5" L

STRAP, hose lock

1шт.

.

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8-27 hex-hd mach

1шт.

7

532672R91

CAP

W/COVER, radiator

1шт.

8

532673R1

CAP

ASSY

1шт.

9

532674R1

PLUG

COVER

1шт.

10

614201R1

VALVE

COCK, radiator drain

1шт.

11

SEAL, radiator air, Furnish 22.5 in. from a 4 ft. length marked 73213C1

1шт.

12

532680R1

RADIATOR HOSE,57.20 mm ID x 302.30 mm, SAE 20R4 CLASS 5C, SAE 20 R4 CLASS R, GRADE 1A

Inlet 57.20 mm ID x 302.30 mm, SAE 20R4 CLASS 5C, SAE 20 R4 CLASS R, GRADE 1A

1шт.

12

532680R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

13

532681R1

RADIATOR HOSE,66.50 mm ID x 106.68 mm, SAE 20R4, CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

Outlet 66.50 mm ID x 106.68 mm, SAE 20R4, CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

1шт.

13

532681R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

14

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose

2шт.

15

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, hose

2шт.

16

71782C91

SUPPORT ASSY.

SUPPORT, radiator and grille

1шт.

.

19555R1

PIN,5/16" x 1", Coiled

2шт.

.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11, 2-3/4 hex-hd cap

6шт.

.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

.

104520C1

PLUG

radiator support

1шт.

.

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

18

531217R1

SUPPORT ASSY.

SUPPORT, head light

1шт.

.

156265

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

1/4-20 x 1 cr-rec-f-hd mach

2шт.

19

SEAL, radiator to shroud side, Furnish 6.0 in. from a 4 ft. length marked 73213C1

2шт.

20

SEAL, radiator to support side, Furnish 28.0 in. from a 4 ft. length marked 73213C1

2шт.

.

STRIP, radiator support panel foam, Use in 3 inch strip from a 4 ft. length marked 73213C1

1шт.
