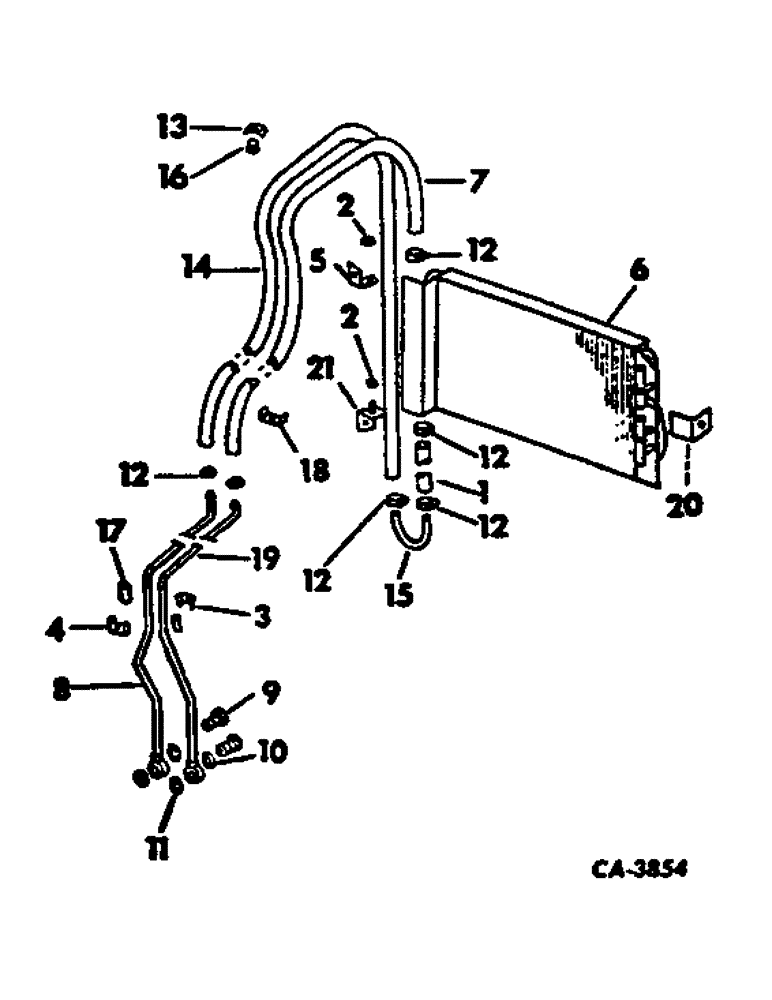

Запчасти Case IH 1566 (06-02) - COOLING, OIL COOLER AND CONNECTIONS Cooling

1

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

HOSE, oil cooler outlet pipe lower, 4.2 in. required

1шт.

2

387327R1

BUSHING

BUSHING, oil cooler pivot

2шт.

3

384855R1

CLAMP

CLAMP, oil cooler pipes

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

384855R11

CLAMP

CLAMP ASSY, oil cooler rear pipes

1шт.

5

533235R2

HINGE

HINGE, upper mounting

1шт.

6

68437C1

COOLER

COOLER ASSY, oil

1шт.

7

549957R1

HYDRAULIC HOSE,0.5" ID x 176.00", SAE 100R6, SAE J517

Oil Cooler Inlet Pipe Upper, 85.00" Required

1шт.

8

533245R1

SPARE PART TUBE ASSY, oil cooler inlet rear, 1566 tractors, Serial Range: -9064

1шт.

8

71079C1

TUBE

SPARE PART TUBE ASSY, oil cooler inlet rear, 1566 tractors, Start Serial: 9065

1шт.

8

71079C1

TUBE

SPARE PART TUBE ASSY, oil cooler inlet rear, 1568 tractors

1шт.

9

384577R1

NIPPLE, LUBE

NIPPLE PLUG, inlet rear tube union

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 41/64 x 13/16 x 3/32

2шт.

11

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

O-RING, 13/16 x 15/16 x 1/16

2шт.

12

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose

6шт.

13

67620C1

SPARE PART GUIDE, oil cooler hose

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/2", G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

549957R1

HYDRAULIC HOSE,0.5" ID x 176.00", SAE 100R6, SAE J517

Oil Cooler Outlet, 93.00" Required

1шт.

15

533243R1

PIPE

SPARE PART PIPE, oil cooler front lower

1шт.

16

371108R1

SPACER,3/8" Pipe x .844"

SPACER, 3/8 x .844 clamp

1шт.

17

HOSE, tube bumper, Furnish two inches from six inch hose, 535257R1

2шт.

18

384586R1

GUIDE

GUIDE, oil cooler hose

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 3/4 hex-hd cap

1шт.

19

533246R1

TUBE

SPARE PART TUBE ASSY, oil cooler outlet rear, 1566 tractors, Serial Range: -9064

1шт.

19

71080C1

SPARE PART TUBE ASSY, oil cooler outlet rear, 1566 tractors, Start Serial: 9065

1шт.

19

71080C1

SPARE PART TUBE ASSY, oil cooler outlet rear, 1568 tractors

1шт.

20

533241R2

BRACKET

BRACKET ASSY, oil cooler latch

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .051

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

1шт.

21

533236R2

SUPPORT

BRACKET ASSY, oil cooler mounting

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

2шт.
