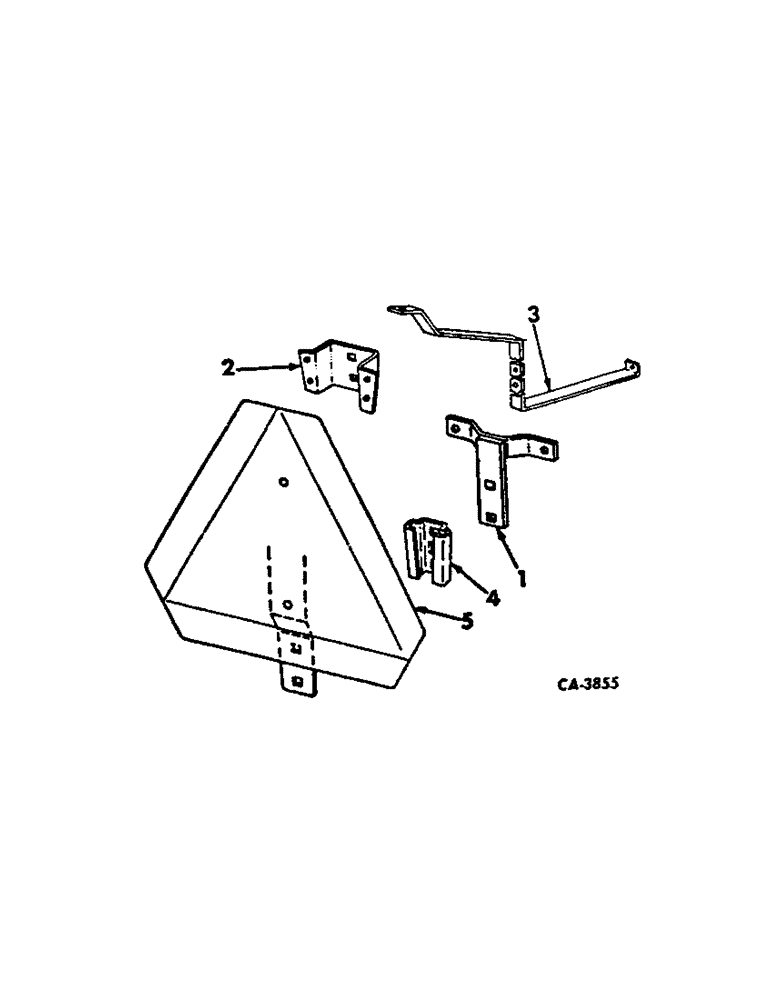

Запчасти Case IH 1566 (02-03[A]) - MISCELLANEOUS, SLOW MOVING VEHICLE REFLECTOR EMBLEM AND MOUNTING BRACKET Accessories & Attachments / Miscellaneous

1

398973R1

BRACKET

ASSY, reflector mounting, For tractors equipped w/vertical acting seat

1шт.

2

401375R1

SUPPORT, reflector mounting, For tractor equipped w/hyd seat

1шт.

130141

SCREW,Sl Rnd Hd, #12 - 11 x 7/8"

12-11 x 7/8 C-Z rd-hd slt wood

4шт.

3

69552C1

SUPPORT ASSY, slow moving vehicle emblem mounting, For tractors with deluxe cab

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

398976R1

BRACKET

SOCKET, slow moving vehicle emblem mounting

1шт.

19428R1

BOLT, 5/16-18 x 5/8 cd short sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

407220R1

PRODUCT GRAPHIC

PACKAGE, slow moving vehicle emblem

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 pan-hd slt mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 ext tooth lock

2шт.
