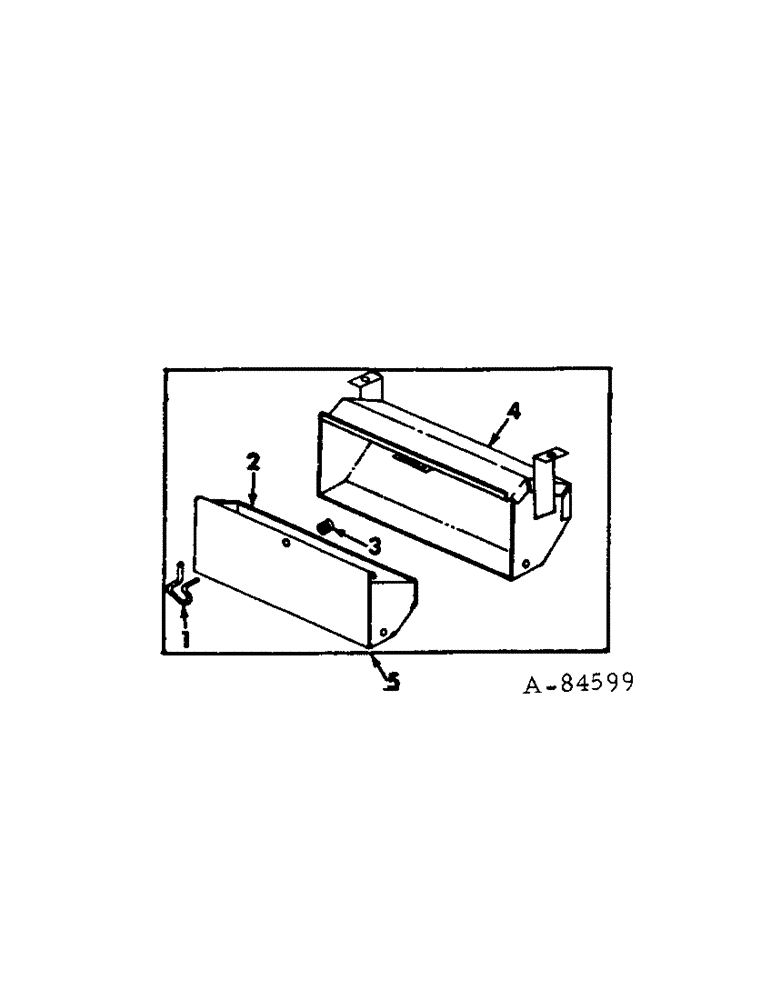

Запчасти Case IH 1566 (02-02) - MISCELLANEOUS, TOOL BOX, BASIC Accessories & Attachments / Miscellaneous

1

383114R1

HANDLE

tool box

1шт.

114856

PIN, 3/64 x 1/2 cot.

1шт.

103338

WASHER,#10

7/32 x 1/2 x 16 ga

1шт.

2

NOT SERVICED SEPARATELY ORDER TOOL BOX ASSY, 383115R91

1шт.

3

27452D

VALVE SPRING

SPRING, tool box handle

1шт.

113354

RIVET

3/16 x 1/4 ov-hd tubular

2шт.

4

383116R91

COVER ASSY, tool box

3шт.

W6075

SPACER, tool box mtg

2шт.

5

383115R91

BOX

ASSY, tool

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.
