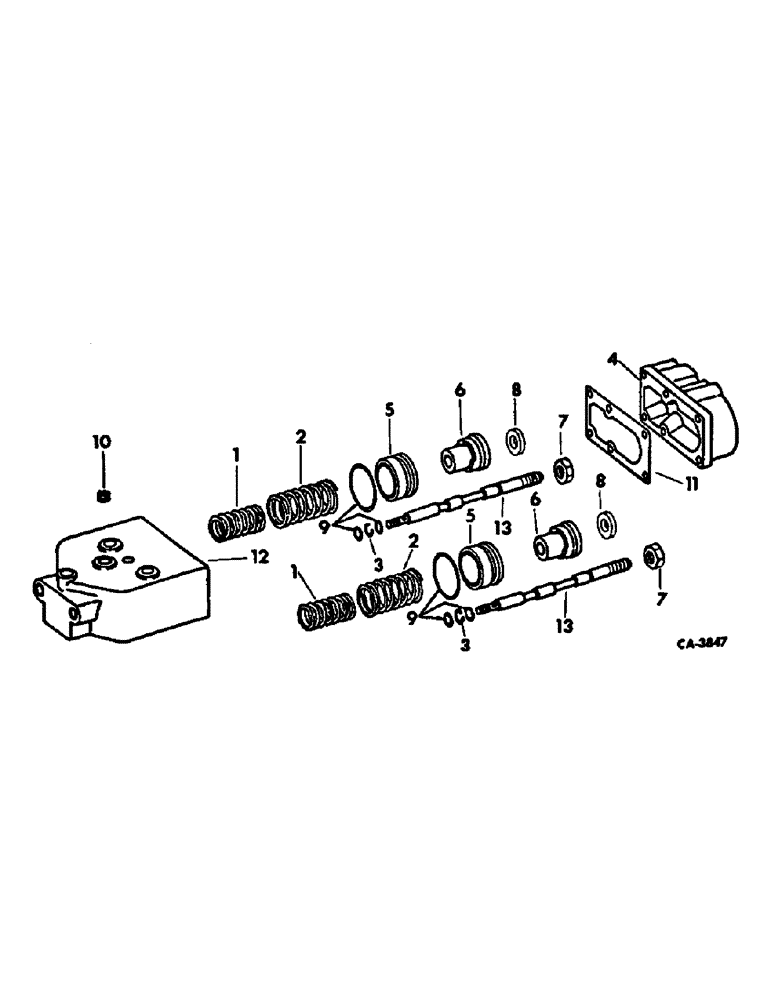

Запчасти Case IH 1566 (04-04) - BRAKES, POWER BRAKE VALVE (5.1) - BRAKES

72807C92

KIT

PACKAGE, hyd power brake valve, Consists of

1шт.

123331C92

VALVE

(NSS)

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTION SHEET

1шт.

68220C92

VALVE

ASSY, power brake, Order service package 72807C92 for replacement

1шт.

1

71707C1

SPRING

return

2шт.

2

71708C1

SPRING

large piston

2шт.

3

85633R1

RING

1/2 sq sect snap

2шт.

4

384495R1

CAP

body

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/2-20 x 7/8 hex-hd cap

6шт.

5

69156C2

PISTON

large

2шт.

6

69157C1

PISTON

small

2шт.

7

9411648

LOCK NUT,1/2"-20, GC

LOCKNUT, 1/2-20

2шт.

8

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

piston

2шт.

9

71487C91

PACKAGE

brake valve o-ring & gasket, Consists of

1шт.

384503R2

GASKET,0.38mm Thk

1шт.

399906R1

O-RING,12.37mm ID x 2.62mm Width

(NSS)

4шт.

399907R1

O-RING,48.9mm ID x 2.62mm Width

(NSS)

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

70340C1

O-RING

(NSS)

2шт.

10

384501R1

PLATE

orifice

1шт.

11

384503R2

GASKET,0.38mm Thk

body cap

1шт.

12

BODY, power brake valve, Not serviced separately order valve assy, 123331C91

1шт.

13

SPOOL, valve, Not serviced seperately order valve assy, 123331C91

1шт.
