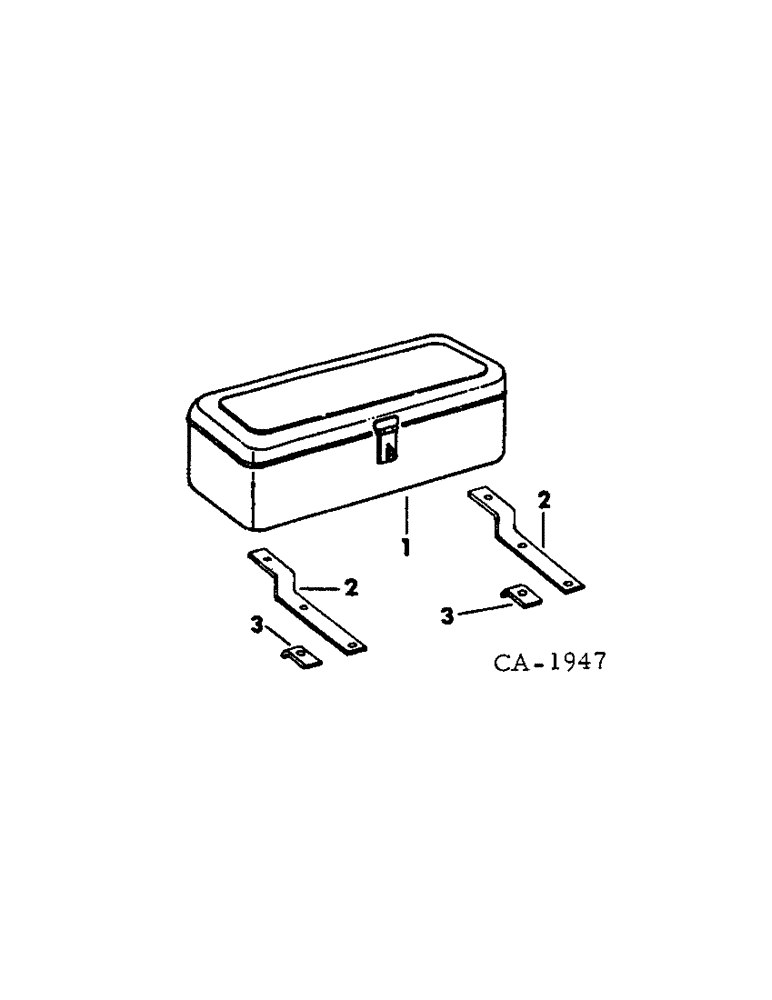

Запчасти Case IH 1566 (02-02[A]) - MISCELLANEOUS, TOOL BOX MOUNTED ON FRONT FRAME CHANNELS Accessories & Attachments / Miscellaneous

1

400455R1

BOX, TOOL

BOX ASSY, tool

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

Q1597

WASHER

13/32, 3/4 x 16 ga

4шт.

2

539555R1

BRACKET, tool box mounting

2шт.

3

535446R1

CLAMP, tool box bracket

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

102635

NUT,3/8"-16, G5

2шт.
