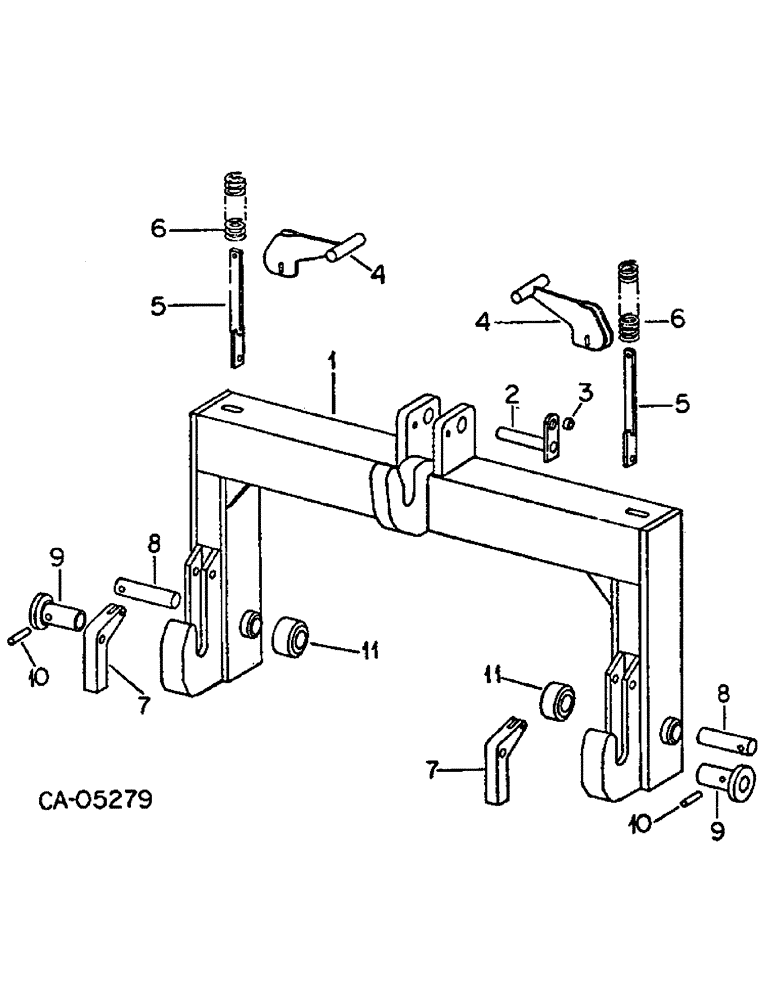

Запчасти Case IH 1566 (09-18) - FRAME, THREE POINT HITCH, QUICK COUPLER ATTACHMENT (12) - FRAME

64726C92

COUPLING

COUPLER ASSY, category III quick

1шт.

1

64720C1

FRAME

ASSY, coupler main

1шт.

2

64721C1

LARGE PIN

PIN ASSY, upper link

1шт.

3

64714C1

BUSHING

pin retainer

3шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074 znd

3шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2-13 x 1-1/4 pt hex-hd cap

3шт.

4

64715C1

HANDLE

ASSY, latch

2шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1-1/6 clevis ht

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

64723C2

BAR

spring

2шт.

6

64717C1

SPRING

latch

2шт.

7

64724C1

LUG

lock, latch

2шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

8

64722C1

PIN

ASSY, lower link

2шт.

9

401232R1

ADAPTER

implement lower hitch pin

2шт.

10

21926R1

PIN,7/16" x 1 3/8", Coiled

2шт.

11

401233R1

COLLAR

BUSHING, implement lower hitch pin, catergory III

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.
