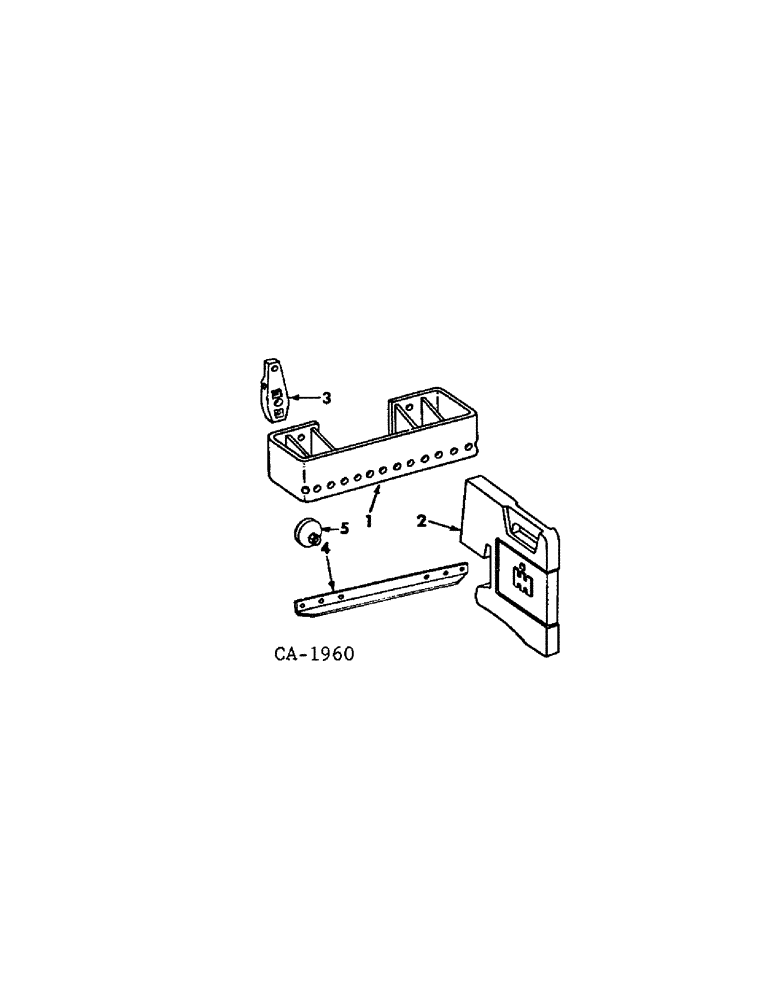

Запчасти Case IH 1566 (09-17) - FRAME, FRONT END WEIGHT BRACKET AND WEIGHTS (12) - FRAME

1

120428C1

BRACKET

ASSY, front weight, also order two screws, 271728, For use of up to 12 weight, Replaces 394447R21 & 70484C1

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga

2шт.

2

71199C1

WEIGHT

front end, 67 lbs

1шт.

2

71200C1

WEIGHT

front end, 100 lbs

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap, 1 per weight

1шт.

125536

SQUARE NUT

1/2-13 C-Z square, 1 per weight

1шт.

3

536041R1

SPACER

front weight bracket, Used with bracket 394447R21 only

2шт.

4

536043R1

BAR

front weight retaining

1шт.

5

536044R1

ROD

CAM ASSY, front weight locking

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

2шт.

21793R1

WASHER

21/32 x 1-1/4 x 7 ga

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.
