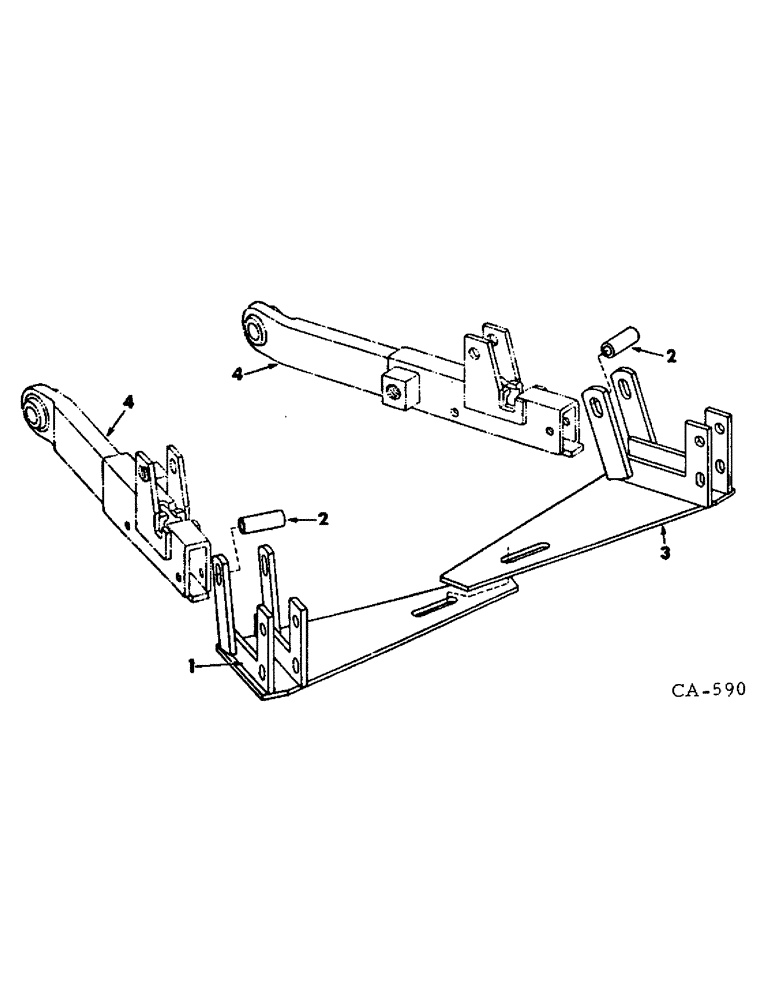

Запчасти Case IH 1566 (09-15) - FRAME, THREE POINT HITCH STABILIZER, NOT FOR TRACTORS WITH CAM SWAY LIMITING HITCH (12) - FRAME

ATTACHMENT, three point hitch stabilizer, 530864R91

1шт.

1

530865R1

PLATE

ASSY, cross tie LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280954

NUT,3/4"-10, G5

2шт.

211216R1

BOLT,Hex, 1/2" - 13 x 4", Gr 8

SCREW, 1/2-13 x 4 znd hex-hd cap

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap

1шт.

271782

CASE,Hex, 3/4" - 10 x 4 3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x 13 ga C-Z

2шт.

2

661095R1

SPACER, 3/4 x 2-3/4 std pipe

2шт.

3

530866R1

PLATE ASSY, cross tie RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280954

NUT,3/4"-10, G5

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

211216R1

BOLT,Hex, 1/2" - 13 x 4", Gr 8

SCREW, 1/2-13 x 4 znd hex-hd cap

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap

1шт.

271782

CASE,Hex, 3/4" - 10 x 4 3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 znd hex-hd cap

1шт.

271817

CLIP,Hex, 7/8" - 9 x 2 1/2", Gr 5

SCREW, 7/8-9 x 2-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

131047

WASHER,7/8"

7/8"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x 13 ga C-Z

2шт.

131018

WASHER

15/16 x 1-3/4 x 11 ga C-Z

2шт.

4

LINK W/BUSHING, front section lower RH, refer to three point hitch listing, this group

1шт.

4

LINK W/BUSHING, front section lower LH, refer to three point hitch listing, this group

1шт.
