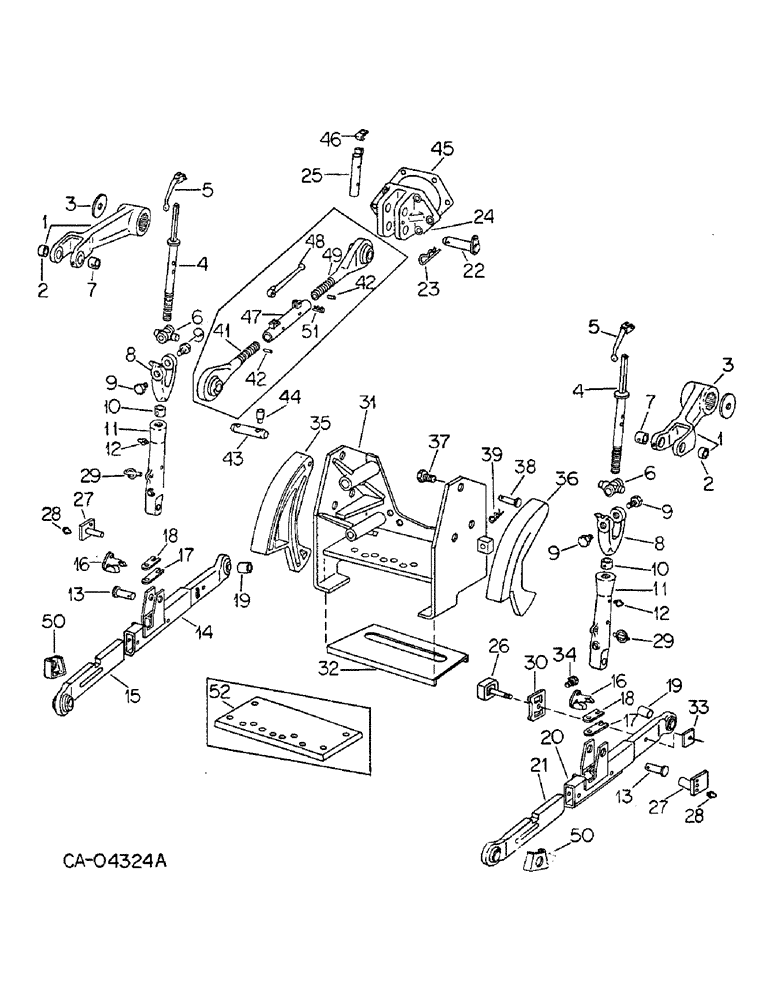

Запчасти Case IH 1566 (09-10) - FRAME, THREE POINT HITCH TRACTORS WITH DRAFT CONTROL AND SENSING AND CAM SWAY LIMITING SYSTEM (12) - FRAME

ATTACHEMENT, three point hitch with cam sway limiting system 70444C92

1шт.

1

67701C91

ARM

ASSY, rockshaft w/bushing

2шт.

2

392992R2

BUSHING,22.15mm ID x 34.87mm OD x 22.86mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

2шт.

4

398378R1

ROD

ASSY, leveling screw

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, , Leveling screw rod 1/4" x 1 3/8", Slotted

2шт.

5

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

2шт.

6

392152R1

TRUNNION

lift link

2шт.

618573R1

PIN,1/4" x 2 1/4", Coiled

2шт.

7

67702C1

BUSHING

lift link trunnion

2шт.

8

398382R1

YOKE

lift link hanger

2шт.

9

392155R1

BOLT (SPREADER),Shldr, Hex, 1 1/8" - 7 x 1.66"

BOLT, shoulder

4шт.

10

398383R1

COLLAR CLAMP

COLLAR, lift link float

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8-11 x 1 sq-hd cone-pt set

2шт.

11

398384R1

BODY

HOUSING, leveling screw

2шт.

12

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/14 drive-type str lub, leveling screw housing

2шт.

13

392915R1

AXLE PIN

PIN, leveling screw housing

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

70447C91

LINK

W/BUSHING, front section lower LH

1шт.

15

398395R1

LINK

ASSY, rear section LH

1шт.

16

398399R1

LATCH

lower link

2шт.

17

382192R1

SPRING

lower link latch

2шт.

18

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

2шт.

20126R1

PIN,1/2" x 2", Coiled

2шт.

19

392180R1

BUSHING

front lower link ball

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

2шт.

20

70448C91

LINK

W/BUSHING, front section lower RH

1шт.

21

398396R1

LINK

ASSY, rear section lower RH

1шт.

22

70804C1

AXLE PIN

PIN ASSY, upper link bracket

1шт.

23

591107R1

COTTER PIN

quick attachable cot.

1шт.

24

392210R3

ASSEMBLY

BRACKET ASSY, upper link

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

5шт.

614636R1

SCREW,Hex, 5/8"-11 x 1 7/8", G8, Full Thd

5/8-11 x 1-7/8 hex-hd cap

1шт.

25

393002R11

TUBE

ASSY, upper link storage

1шт.

26

70475C1

NO LONGER SERVICED

BUMPER ASSY, cam

2шт.

22244R1

LOCK NUT

3/4-10 nylon insert cad type ne

2шт.

27

70461C1

PIN

lower link

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight, Lower link pin 1/4"-28 NPT x .54" lg

2шт.

29

392181R91

PIN

ASSY, lower link drawbar

2шт.

30

70478C1

SPACER

cat. III

1шт.

31

123120C1

SUPPORT

cam limiter & drawbar, Replaces 70464C1, on orders for 70464C1 furnish 123120C1 support 123121C1 channel & two 271734 screw

1шт.

67872C1

WASHER

.656 x 1.25 x .25

8шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 hex-hd cap type 8

4шт.

27352R1

SCREW,Hex, 5/8"-11 x 7 1/2", G8

5/8-11 x 7-1/2 hex-hd cap type 8

4шт.

32

70474C1

BAR, drawbar support, Used with support 70464C1

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

33

70479C1

SHIM

.067 thick

10шт.

33

70480C1

SHIM

.033 thick

2шт.

34

383261R2

ADJUSTMENT SCREW

draft adjusting

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

35

70481C1

NO LONGER SERVICED

CAM, sway limiter LH

1шт.

36

70482C1

SPARE PART

CAM, sway limiter RH

1шт.

37

70483C1

BOLT, metal coated lock, cam mounting pivot, Used with support 70464C1

2шт.

37

26323R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4 x 1-1/2 phc pre-torq type 8, Used with support 123120C1

2шт.

38

21377R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x 2 headed znd, Used with support 70464C1

2шт.

38

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 headed, Used with support 123120C1

2шт.

39

545254R1

PIN

quick attaching cotter

2шт.

40

404632R91

TURNBUCKLE

W/SCREWS, upper link

1шт.

41

398401R1

SCREW

ASSY, LH thread

1шт.

42

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

43

392211R1

AXLE PIN

PIN, upper link implement

1шт.

44

392181R91

PIN

ASSY, upper hitch

2шт.

45

383330R1

GASKET

draft control adj opening cover

1шт.

46

393004R1

SUPPORT

CLIP, upper link storage bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

47

404633R1

BUCKLE

TURNBUCKLE, upper link

1шт.

48

392204R1

HANDLE

upper link turnbuckle

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 standard head

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

49

398404R1

SCREW

ASSY, RH thread

1шт.

50

404788R1

SHIELD

linch pin

2шт.

51

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

52

123121C1

CHANNEL

drawbar wear, Used with support 123120C1

1шт.

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

upper link rear ball

1шт.

374132R1

PIN

upper link implement

1шт.

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

lower link hitch point, Note, For use w/category II tools and implements when mounted on category III three point hitch

2шт.

393208R93

ACCESSORIES

PARTS ACCESSORY, three point hitch sway limiter, For tractors equipped with three point hitch & dual rear wheel attachment, Consists of

1шт.

393173R2

BLOCK

(NSS)

2шт.

520175R1

CLIP

PIN

2шт.

398622R91

STRIPPER PACKAGE

PARTS ACCESSORY, bushing & pin adapter, For use w/category II tools and implements when mounted on a category III three point hitch, Consists of

1шт.

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

upper link rear

1шт.

374132R1

PIN

upper link implement

1шт.

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

lower link hitch point

2шт.
