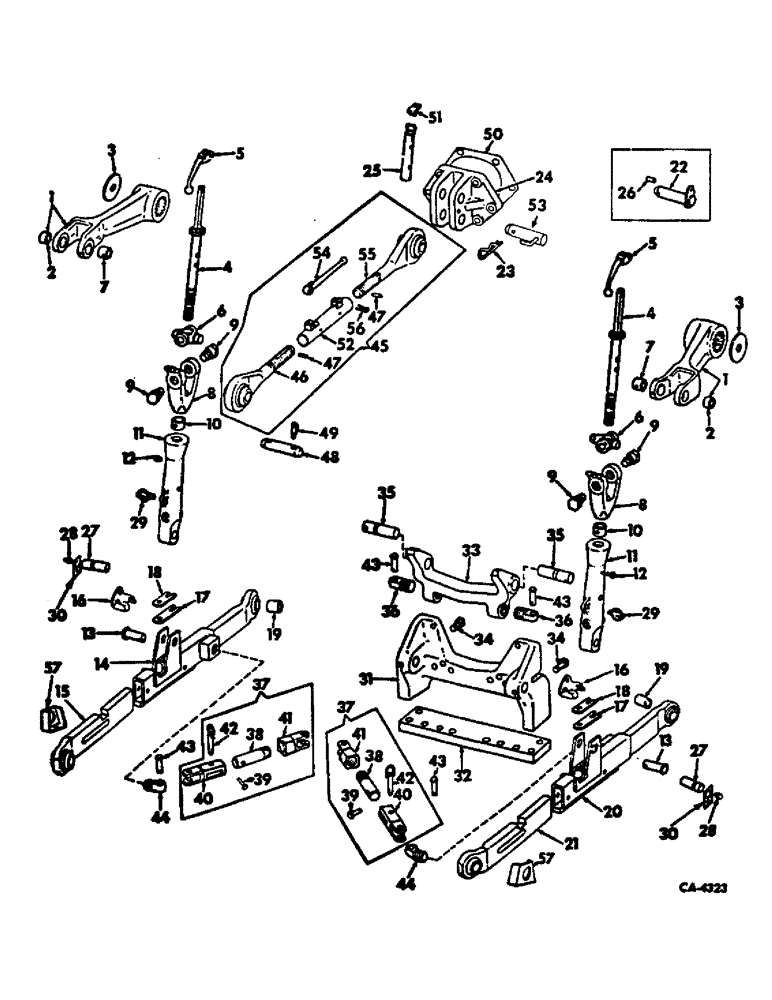

Запчасти Case IH 1566 (09-06) - FRAME, THREE POINT HITCH TRACTORS WITH DRAFT CONTROL & SENSING & W/O CAM SWAY LIMITING SYSTEM (12) - FRAME

1

67701C91

ARM

ASSY, rockshaft w/bushing

2шт.

2

392992R2

BUSHING,22.15mm ID x 34.87mm OD x 22.86mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

2шт.

4

398378R1

ROD

ASSY, leveling screw

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, , Leveling screw rod 1/4" x 1 3/8", Slotted

2шт.

5

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

2шт.

6

392152R1

TRUNNION

lift link

2шт.

618573R1

PIN,1/4" x 2 1/4", Coiled

2шт.

7

67702C1

BUSHING

left link trunnion

2шт.

8

398382R1

YOKE

lift link hanger

2шт.

9

392155R1

BOLT (SPREADER),Shldr, Hex, 1 1/8" - 7 x 1.66"

BOLT, shoulder

4шт.

10

398383R1

COLLAR CLAMP

COLLAR, lift link float

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8-11 x 1 sq-hd cone-pt set

2шт.

11

398384R1

BODY

HOUSING, leveling screw

2шт.

12

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive-type str lub, leveling screw housing

2шт.

13

392915R1

AXLE PIN

PIN, leveling screw housing

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

398387R92

ARM

LINK W/BUSHING, front section lower LH

1шт.

15

398395R1

LINK

ASSY, rear section LH

1шт.

16

398399R1

LATCH

lower link

2шт.

17

382192R1

SPRING

lower link latch

2шт.

18

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

2шт.

20126R1

PIN,1/2" x 2", Coiled

2шт.

19

392180R1

BUSHING

front lower link ball

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

2шт.

20

398388R92

ARM

LINK W/BUSHING, front section lower RH

1шт.

21

398396R1

LINK

ASSY, rear section lower RH

1шт.

22

392208R11

PIN

upper link bracket, Used with bracket 392210R21 only

1шт.

23

591107R1

COTTER PIN

quick attachable cot.

1шт.

24

392210R3

ASSEMBLY

BRACKET ASSY, upper link, Replaces 392210R21, on orders for 392210R21 furnish 392210R3 and 70804C1 pin

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

5шт.

614636R1

SCREW,Hex, 5/8"-11 x 1 7/8", G8, Full Thd

5/8-11 x 1-7/8 hex-hd cap

1шт.

25

393002R11

TUBE

ASSY, upper link storage

1шт.

26

20037R1

PIN, 7/16 x 1-1/4 dowel, Used with bracket 392210R21 only

1шт.

27

406686R1

PIN

lower link

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight, Lower link pin 1/4"-28 NPT x .54" lg

2шт.

29

392181R91

PIN

ASSY, lower link drawbar

2шт.

30

406687R1

RETAINER

lower link pin

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

31

108500C1

SUPPORT

drawbar, 1566 tractor, Start Serial: 7115

1шт.

31

108500C1

SUPPORT

drawbar, 1568 tractor, Start Serial: 7206

1шт.

31

393776R1

SUPPORT

swinging drawbar, 1566 tractor, Serial Range: -7114

1шт.

31

393776R1

SUPPORT

swinging drawbar, 1568 tractor, Serial Range: -7205

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap

2шт.

223442

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

SCREW, 5/8-11 x 3-1/2 hex-hd cap

6шт.

32

67867C1

BAR

drawbar support

1шт.

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4-10 x 2-1/2 hex-hd cap

4шт.

33

392183R1

ARM

stabilizer control

1шт.

34

383261R2

ADJUSTMENT SCREW

draft adjusting

2шт.

396467R1

NUT

adjusting

2шт.

35

67693C1

SHAFT

PIN, stabilizer control arm

2шт.

19684R1

LOCK PIN,1/2" x 2 3/4", Slotted

Pin, 1/2" x 2 3/4", Slotted

2шт.

36

392185R1

BOLT,1 3/8" - 6 x 2.50"

stabilizer front eye

2шт.

37

STABILIZER ASSY, lateral limiter, Not serviced as an assembly, order component parts

2шт.

38

69133C1

STUD

lateral limiter

2шт.

39

527370R1

PIN

5/8 x 2-1/2 headed

2шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

40

406248R2

YOKE

lateral limiter

2шт.

41

406249R1

YOKE

limiter front

2шт.

42

392193R11

PIN

ASSY, lockout

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

43

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, stabilizer

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

44

392195R1

BOLT,1 3/8" - 6 x 2.62", Full Thd

stabilizer rear eye

2шт.

45

404632R91

TURNBUCKLE

W/SCREWS, upper link

1шт.

46

398401R1

SCREW

ASSY, LH thread

1шт.

47

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

48

392211R1

AXLE PIN

PIN, upper link implement

1шт.

49

392181R91

PIN

ASSY, upper hitch

2шт.

50

383330R1

GASKET

draft control adj opening cover

1шт.

51

393004R1

SUPPORT

CLIP, upper link storage bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

52

404633R1

BUCKLE

TURNBUCKLE, upper link

1шт.

53

70804C1

AXLE PIN

PIN ASSY, upper link bracket

1шт.

54

392204R1

HANDLE

upper link turnbuckle

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 standard head

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

55

398404R1

SCREW

ASSY, RH thread

1шт.

56

517843R1

COTTER PIN

PIN, quick attachable cotter

1шт.

57

404788R1

SHIELD

link pin

2шт.

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

upper link rear ball

1шт.

For use with category II tools and implements when mounted on a category III point hitch.

1шт.

374132R1

PIN

upper link implement

1шт.

For use with category II tools and implements when mounted on a category III point hitch.

1шт.

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

lower link hitch point

2шт.
