(09-05[A]) - FRAME, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL & SENSING & NOT EQUIPPED WITH 2 OR 3-PT HITCH

Запчасти Case IH 1566 (09-05[A]) - FRAME, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL & SENSING & NOT EQUIPPED WITH 2 OR 3-PT HITCH (12) - FRAME

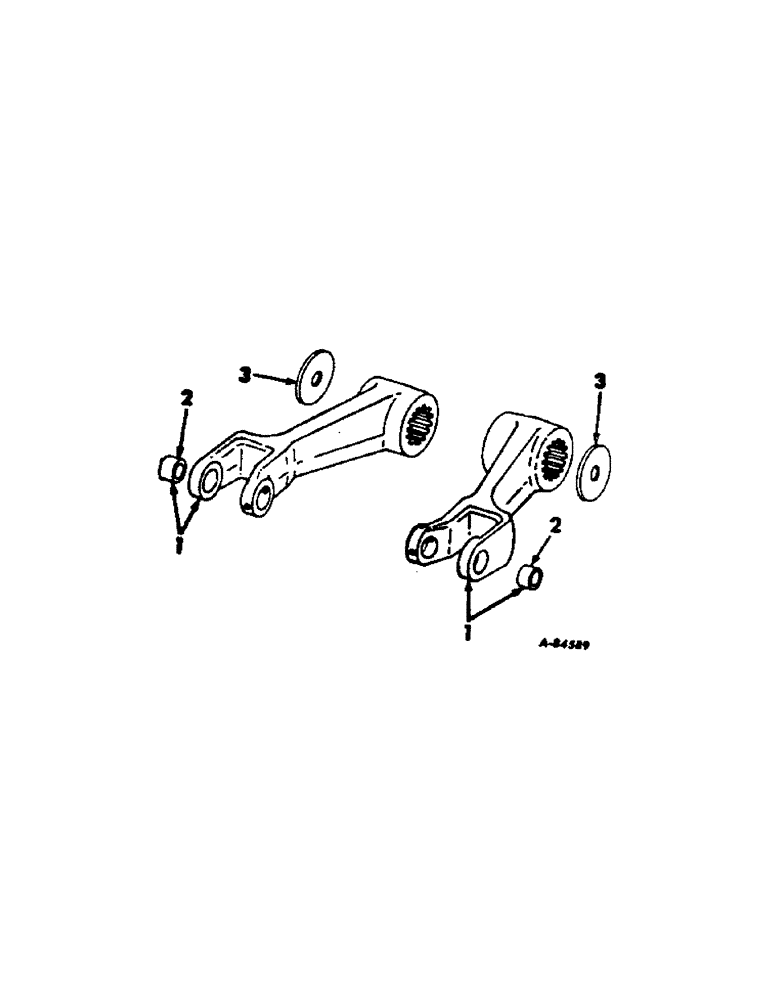

Схема запчастей Case IH 1566 - (09-05[A]) - FRAME, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL & SENSING & NOT EQUIPPED WITH 2 OR 3-PT HITCH (12) - FRAME
2
2
3
1
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

67701C91

ARM

ASSY, rockshaft

2шт.

2

392992R2

BUSHING,22.15mm ID x 34.87mm OD x 22.86mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.
