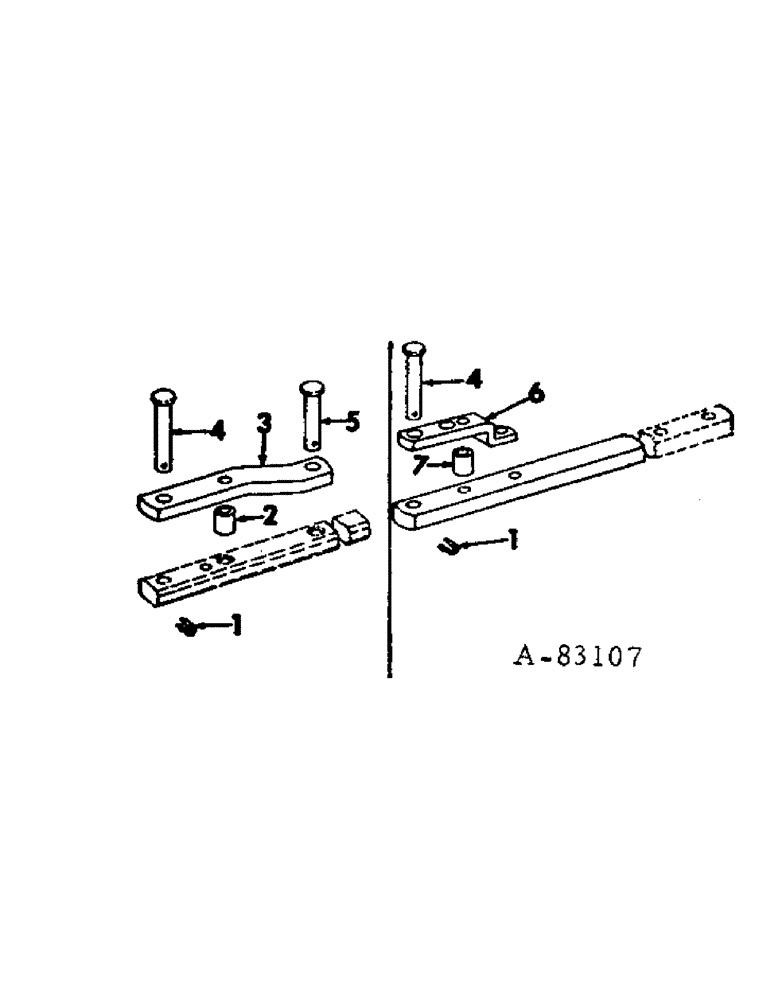

Запчасти Case IH 1566 (09-04[A]) - FRAME, HAMMER STRAP, TRACTORS WITH STOREAWAY SWINGING DRAWBAR (12) - FRAME

535811R91

PARTS ACCESSORY, hammer strap

1шт.

1

520175R11

AXLE PIN

PIN ASSY, quick attachable cot.

1шт.

2

483858R1

SPACER

drawbar strap

1шт.

3

535801R1

STRAP

drawbar, For use with drawbar 397066R2

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

102639

NUT,5/8"-11, G5

1шт.

575810R1

WASHER

21/32 x 1-1/2 x .120

2шт.

4

70498C1

PIN

swinging drawbar clevis

1шт.

5

389523R1

PIN

drawbar

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

NOT USED IN THIS APPLICATION

1шт.
