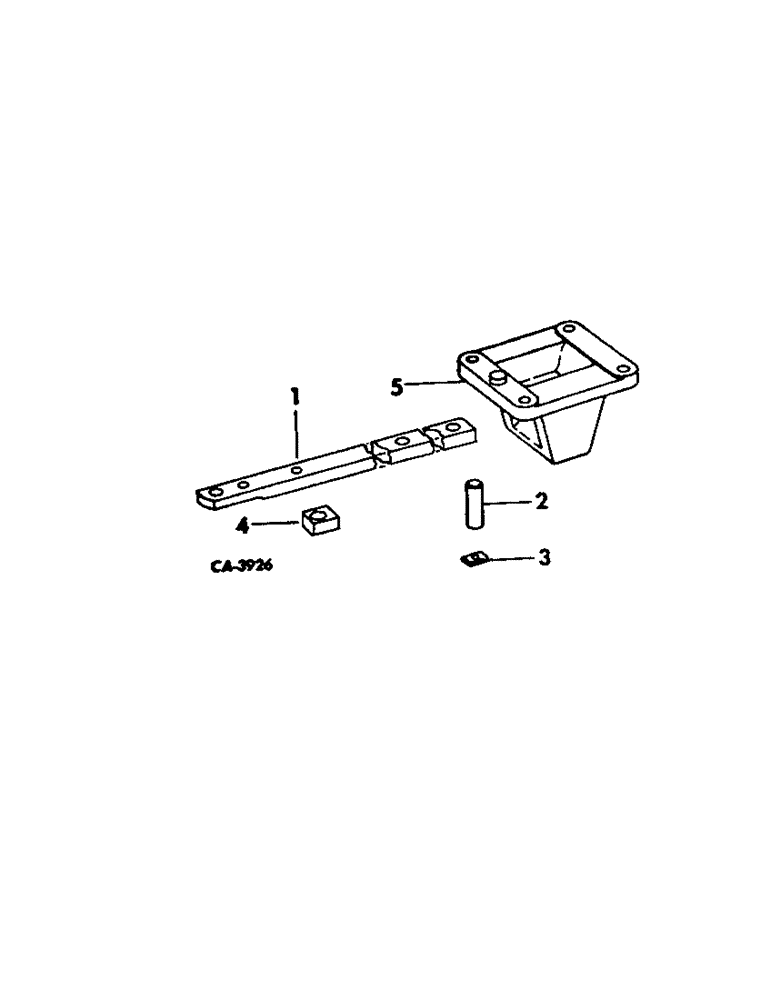

Запчасти Case IH 1566 (09-03[A]) - FRAME, SWINGING DRAWBAR, ONE PIECE, PART OF THREE POINT HITCH ATTACHMENT (12) - FRAME

1

108503C1

BAR

DRAWBAR, swinging, 62 in., For use with hammer strap 108506C1

1шт.

2

108505C1

PIN

swinging drawbar

1шт.

3

67828C1

RETAINER

swinging drawbar pin, tractors w/o cam sway limiting system

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

108507C1

BLOCK

swinging drawbar stop

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap, tractor w/o cam sway limiting system

2шт.

271734

ROTOR,Hex, 5/8" - 11 x 4 3/4", Gr 5

SCREW, 5/8-11 x 4-3/4 znd hex-hd cap, tractor w/cam sway limiting system

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., tractor w/cam sway limiting system

2шт.

5

391890R11

SUPPORT

ASSY, swinging drawbar pivot, 1566 tractor, Serial Range: -7114

1шт.

5

391890R11

SUPPORT

ASSY, swinging drawbar pivot, 1568 tractor, Serial Range: -7205

1шт.

5

108508C1

SUPPORT

ASSY, swinging drawbar pivot, 1566 tractor, Start Serial: 7115

1шт.

5

108508C1

SUPPORT

ASSY, swinging drawbar pivot, 1568 tractor, Start Serial: 7206

1шт.
