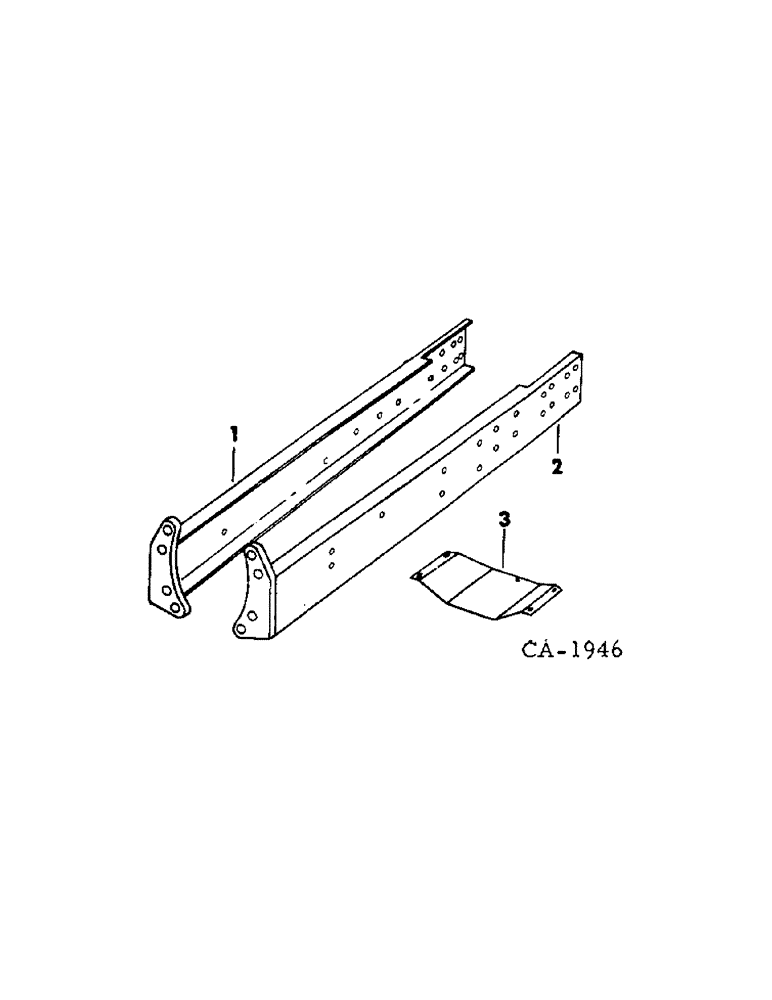

Запчасти Case IH 1566 (09-02) - FRAME, FRONT CHANNELS (12) - FRAME

1

532316R5

CHANNEL

ASSY, LH front frame, 1566 tractors

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 hex-hd cap, For use with hammer strap 535801R1

3шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4-10 x 3-1/2 12 pt cap

1шт.

1

538105R1

CHANNEL, LH front frame, 1568 tractors

1шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 hex-hd cap

2шт.

271616

SEAL KIT

SCREW, 3/4-10 x 3-1/4 hex-hd cap

2шт.

396842R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4"

SCREW, 3/4-10 x 3-1/4 12 pt cap

1шт.

2

532317R4

SUPPORT ASSY.

CHANNEL ASSY, RH front frame, 1566 tractors

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 hex-hd cap

3шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4-10 x 3-1/2 12 pt cap

1шт.

2

538106R1

CHANNEL, RH front frame, 1568 tractors

1шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

271574

BEARING ASSY

SCREW, 5/8-11 x 5 hex-hd cap

2шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 hex-hd cap

2шт.

396842R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4"

SCREW, 3/4-10 x 3-1/4 12 pt cap

1шт.

3

531245R1

SHIELD, fan pulley, 1566 tractors

1шт.

271552

SCREW

BOLT, 5/8 x 3/4 pln type 5

2шт.
