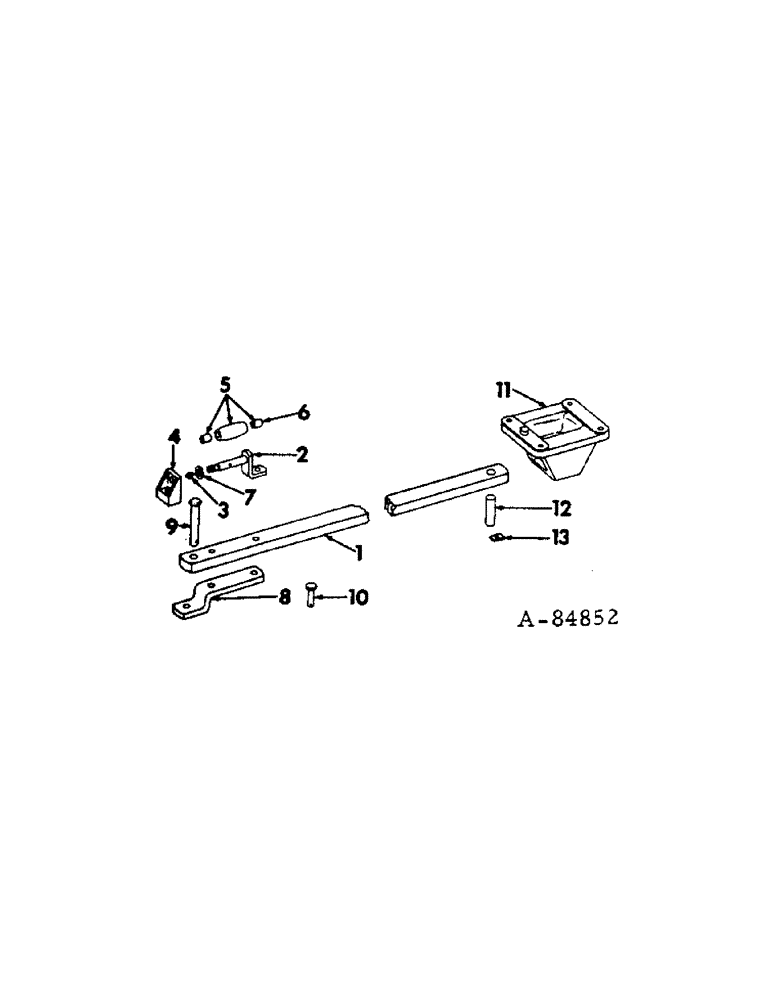

Запчасти Case IH 1566 (09-02[A]) - FRAME, HEAVY DUTY SWINGING DRAWBAR, PART OF FIXED NON-ADJUSTABLE DRAWBAR ATTACHMENT (12) - FRAME

1

404487R1

DRAWBAR, swinging, 1566 tractor, Serial Range: -7114

1шт.

1

404487R1

DRAWBAR, swinging, 1568 tractor, Serial Range: -7205

1шт.

1

70232C1

BAR

DRAWBAR, swinging, 1566 tractor, Start Serial: 7115

1шт.

1

70232C1

BAR

DRAWBAR, swinging, 1568 tractor, Start Serial: 7206

1шт.

2

391873R11

SHAFT

ASSY, swinging drawbar roller

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

1шт.

271619

CIRCLIP

3/4-10 x 4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 str lub

1шт.

4

391889R1

SUPPORT ASSY.

SUPPORT, swinging drawbar shaft rear

1шт.

17269R1

SCREW,Hex, 3/4" - 10 x 6 1/4", Gr 5

3/4-10 x 6-1/4 hex-hd cap

1шт.

5

400299R11

ROLLER

ASSY, swinging drawbar

1шт.

6

391869R1

BUSHING

swinging drawbar roller

2шт.

7

391870R1

WASHER

swinging drawbar roller shaft

2шт.

9

400298R1

BRACKET

swinging drawbar guide

1шт.

9

530149R1

PIN

ASSY, drawbar clevis, Optional w/400300R1

1шт.

9

400300R1

CLEVIS PIN

PIN ASSY, drawbar clevis, Optional w/530149R1

1шт.

520175R11

AXLE PIN

PIN ASSY, quick attachable cot.

1шт.

10

P14608

AXLE PIN

PIN, 3/4 x 2-3/4 headed, drawbar roller stop

2шт.

520175R1

CLIP

PIN, quick attachable cotter

2шт.

11

67823C1

SUPPORT ASSY, swinging, drawbar pivot, 1566 tractor, Serial Range: -7114

1шт.

11

67823C1

SUPPORT ASSY, swinging, drawbar pivot, 1568 tractor, Serial Range: -7205

1шт.

11

108508C1

SUPPORT

ASSY, swinging drawbar pivot, 1566 tractor, Start Serial: 7115

1шт.

11

108508C1

SUPPORT

ASSY, swinging drawbar pivot, 1568 tractor, Start Serial: 7206

1шт.

12

67827C1

AXLE PIN

PIN, drawbar, Use w/404487R1 drawbar

1шт.

12

108505C1

PIN

drawbar, Use w/70232C1 drawbar

1шт.

Q3485

WASHER

1.406 x 2.25 x .120

2шт.

13

67828C1

RETAINER

pin

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
