Запчасти Case IH 1566 (10-27) - HYDRAULICS, DOUBLE ACTING CHECK VALVE (07) - HYDRAULICS

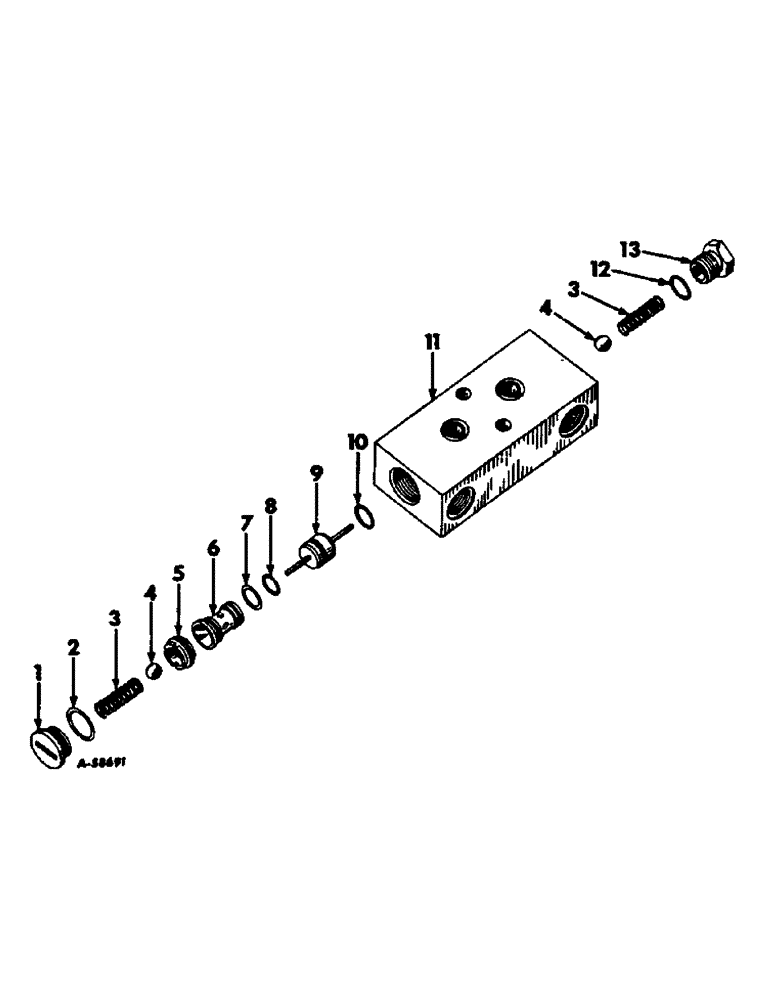

Схема запчастей Case IH 1566 - (10-27) - HYDRAULICS, DOUBLE ACTING CHECK VALVE (07) - HYDRAULICS
9
1
3
2
5
10
13
4
12
8
4
6
11
3
7

Артикул

Название

Примечание

Количество

544840R91

LOCK VALVE

VALVE ASSY, double acting check

1шт.

546830R91

VALVE

ASSY, alternating check, For tractors equipped w/implement using hydraulic mast control or marker

1шт.

1

374088R1

PLUG

check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/6 x 7/64, check valve plug

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

check valve ball retainer

1шт.

6

374087R21

RETAINER

ASSY, check valve ball

1шт.

7

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

8

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16, ball retainer small

1шт.

9

374085R11

PISTON

ASSY, check valve actuator, Used w/valve assy 544840R91

1шт.

9

530442R2

PISTON ASSY.

PISTON ASSY, alternating check, Used w/valve assy 546830R91

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, piston

1шт.

11

BLOCK ASSY, check valve, Not serviced separately, Order check valve assy

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve plug

1шт.

13

374089R1

PLUG

check valve

1шт.

Выбрано товаров: 16
