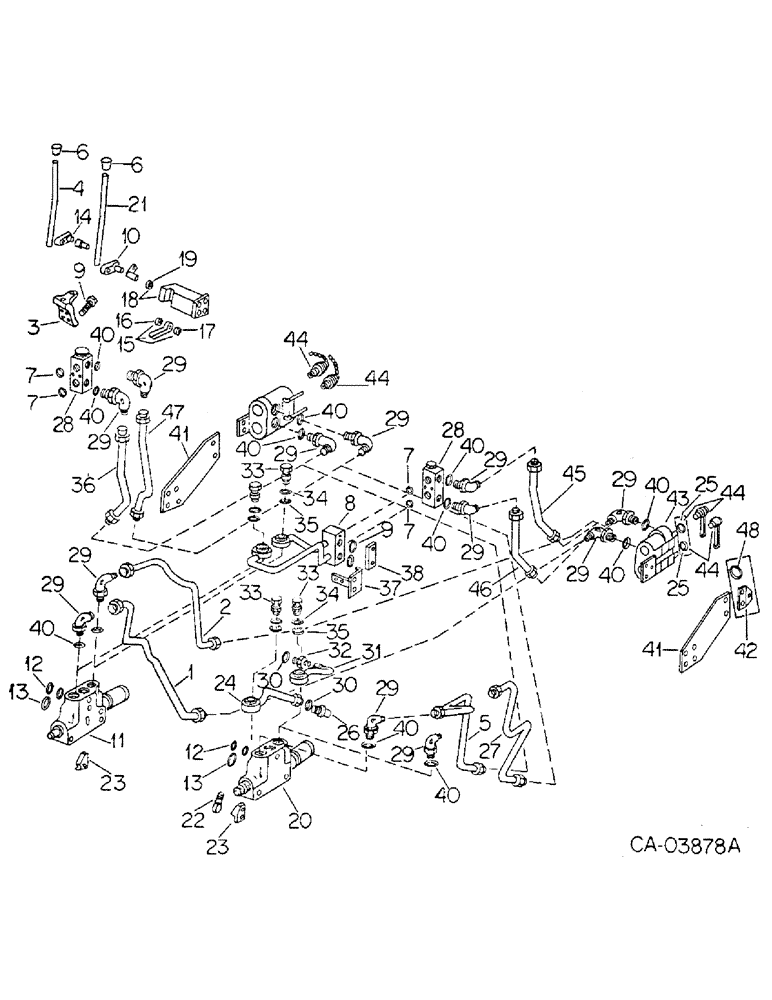

Запчасти Case IH 1566 (10-21) - HYDRAULICS, AUXILIARY VALVES AND TUBES REAR (07) - HYDRAULICS

ATTACHMENT, double auxiliary hydraulic valve w/left and right rear outlets, Consists of all unmarked parts, and those marked unit A

1шт.

ATTACHMENT, double auxiliary hydraulic valve w/left and right rear outlets and check valve on each rear outlet, Consists of all unmarked parts, and those marked unit B

1шт.

ATTACHMENT, single auxiliary hydraulic valve w/left rear outlet, Consists of all unmarked parts, and those marked unit C

1шт.

ATTACHMENT, single auxiliary hydraulic valve w/left rear outlet and check valve, Consists of all unmarked parts, and those marked unit D

1шт.

70363C91

PARTS ACCESSORY, second auxiliary hydraulic valve w/right rear outlet, gear drive tractors with single auxiliary hydraulic valve, Consists of all unmarked parts, and those marked unit E

1шт.

1

536976R1

TUBE

ASSY, LH drop, Units A and C

1шт.

2

536978R1

TUBE

ASSY, LH lift, Units A and C

1шт.

3

389605R1

BRACKET

float lockout, Units A, B, C and D

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

389167R1

LEVER

HANDLE, auxiliary valve control outer, Units A, B, and E

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

5

536977R1

TUBE

ASSY, RH drop, Units A and E

1шт.

6

389168R1

KNOB

auxiliary valve control handle, 1 per control handle

1шт.

7

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, 2 for units B and D

1шт.

8

398420R1

MANIFOLD

ASSY, left rear, Units B & D

1шт.

9

20641R1

SCREW

5/16-18 x 1-3/8 hex-hd mach, adjusting screw, 1 for units C, D and E, 2 for units A and B

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1 per screw Jam, 5/16"-18, G5

1шт.

10

389164R12

BASE

ASSY, auxiliary valve inner handle, Units A, B, C and D

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

529912R92

VALVE

ASSY, hyd open center control, Units A, B and E

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap, 3 for unit E

1шт.

12

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, open center control valve small, 2 for units C, D and E, 4 for units A and B

1шт.

13

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, open center control valve large, 1 for units C, D and E, 2 for units A and B

1шт.

14

389166R12

BASE

ASSY, auxiliary valve outer handle, 1 for units A, B and E

1шт.

15

384111R91

SUPPORT

ASSY, double control lever tube inner

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

383234R1

BUSHING,11.14mm ID x 12.71mm OD x 6.35mm L

control lever shaft, 1 for units A, B and E

1шт.

17

383233R1

BUSHING,19.15mm ID x 20.65mm OD x 9.65mm L

control lever tube

1шт.

18

383235R21

BRACKET

SUPPORT ASSY, control lever, Units A, B, C and D

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control lever outer, Units A, B, and C and D

1шт.

20

61082C91

VALVE

ASSY, hyd open center control, Units A, B, C and D, gear drive tractors, For components see list of parts under details of hydraulic control valve

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap, 3 for units A and B

1шт.

631994R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 hex-hd cap, 3 for units C and D

1шт.

21

389165R1

SHAFT

HANDLE, auxiliary valve control inner, Units A, B, C and D

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

22

383243R92

ARM

ASSY, valve operating outer, 1 for units A, B and E

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

23

384112R11

DRIVE ASSY.

ACTUATOR ASSY, valve spool, 1 per valve

1шт.

24

398433R1

TUBE

ASSY, right rear lift, Unit B

1шт.

25

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1 per plug, Used only w/plug, 537589R91

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube tube adj str thd 90 deg, right rear lift tube, Unit B

1шт.

27

536979R1

TUBE

ASSY, RH lift, Units A and E

1шт.

28

544840R91

LOCK VALVE

VALVE ASSY, double acting check, tractors w/serial no. and below

1шт.

28

546830R91

VALVE

ASSY, alternating check, tractors w/serial no. and above, 1 for unit D, 2 for unit B, For components see list of parts under details of double acting check valve

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2 for unit B Hex, 3/8"-16 x 2", G5

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2 for units B and D Hex, 3/8"-16 x 4", G5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), 2 for unit D, 4 for unit B 3/8"

1шт.

102635

NUT,3/8"-16, G5

2 for unit D, 4 for unit B 3/8"-16, G5

1шт.

29

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg, 4 for units C, D and E, 8 for units A and B

1шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, right rear lift tube, 2 for unit B

1шт.

31

398426R1

TUBE

ASSY, right rear drop, Unit B

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, rear drop tube, Unit B

1шт.

33

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, union inlet, 2 for unit D, 4 for unit B

1шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for unit D, 4 for unit B

1шт.

35

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, 2 for unit D, 4 for unit B

1шт.

36

535042R1

TUBE

ASSY, RH coupler lower, Unit B

1шт.

37

398425R1

ANGLE

BRACKET, left rear manifold, Units B and D

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

38

398424R1

BAR, left tube manifold block cap, Units B and D

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

39

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/34 x 15/16 x 3/32, manifold block cap, 2 for units B and D

1шт.

40

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for units C, D and E, 8 for units A and B

1шт.

41

535033R2

BRACKET

coupler, 1 for units C, D and E, 2 for units A and B

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap, 2 per bracket

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap, 2 per bracket

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap, tractors w/heavy duty drawbar, 3 per bracket

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, tractors w/two point hitch cross drawbar, 3 per bracket

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga, 2 per bracket

1шт.

42

537588R1

PLUG

BRACKET, dust plug mounting, order plug, 64757C1, 1 for units C, D and E, 2 for units A and B

1шт.

43

544786R93

COUPLING

COUPLER ASSY, female, 1 for units C, D and E, 2 for units A and B, For components, see list of parts under details of female coupler

1шт.

44

64757C1

PLUG

ASSY, coupler dust, Replaces 537589R91, 2 for units C, D and E, 4 for units A and B

1шт.

45

535034R1

TUBE

ASSY, LH coupler upper, Units B and D

1шт.

46

535035R1

TUBE

ASSY, LH coupler lower, Units B and D

1шт.

47

535041R1

TUBE

ASSY, RH coupler upper, Unit B

1шт.

48

25641R1

OIL SEAL

RING, retaining, 1 per 2 plug assy, Used only w/plug 537589R91

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, male, 2 for units C, D and E, 4 for units A and B

1шт.
