Запчасти Case IH 1566 (10-19) - HYDRAULICS, HYDRAULIC CYLINDER AND HYDRAULIC SEAT ATTACHMENT (07) - HYDRAULICS

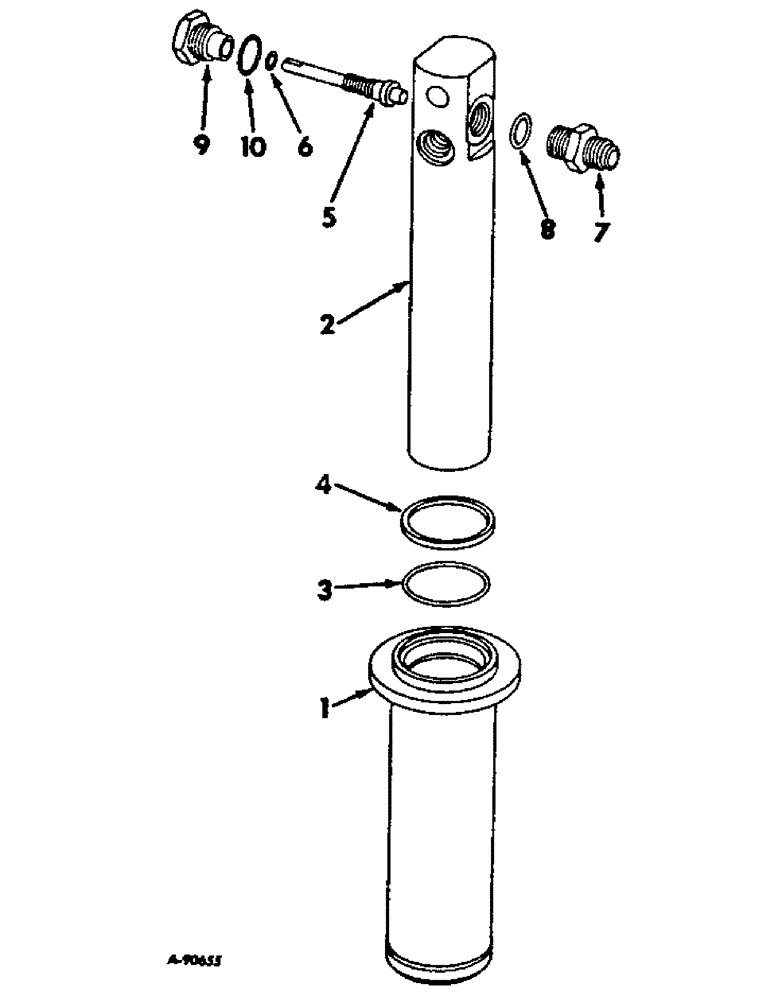

Схема запчастей Case IH 1566 - (10-19) - HYDRAULICS, HYDRAULIC CYLINDER AND HYDRAULIC SEAT ATTACHMENT (07) - HYDRAULICS
10
9
8
7
6
2
3
5
4
1

Артикул

Название

Примечание

Количество

399093R93

HYDRAULIC CYLINDER

CYLINDER ASSY, single acting ram hyd

1шт.

1

58097C1

BODY

ASSY, hydraulic cylinder, also order wiper, 403845R1

1шт.

2

399313R1

ROD

ASSY, hyd cylinder

1шт.

3

123462C1

CLAMP

SEAL, cylinder body, Replaces 290287R1

1шт.

4

403845R1

WIPER SEAL

WIPER, rod

1шт.

5

399317R1

ADJUSTMENT SCREW

SCREW, adjusting

1шт.

6

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Adjusting screw

1шт.

7

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel, hydraulic cylinder body

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

9

399318R1

RETAINER

adjusting screw

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

Выбрано товаров: 11
