Запчасти Case IH 1566 (10-16) - HYDRAULICS, TILT STEERING WHEEL (07) - HYDRAULICS

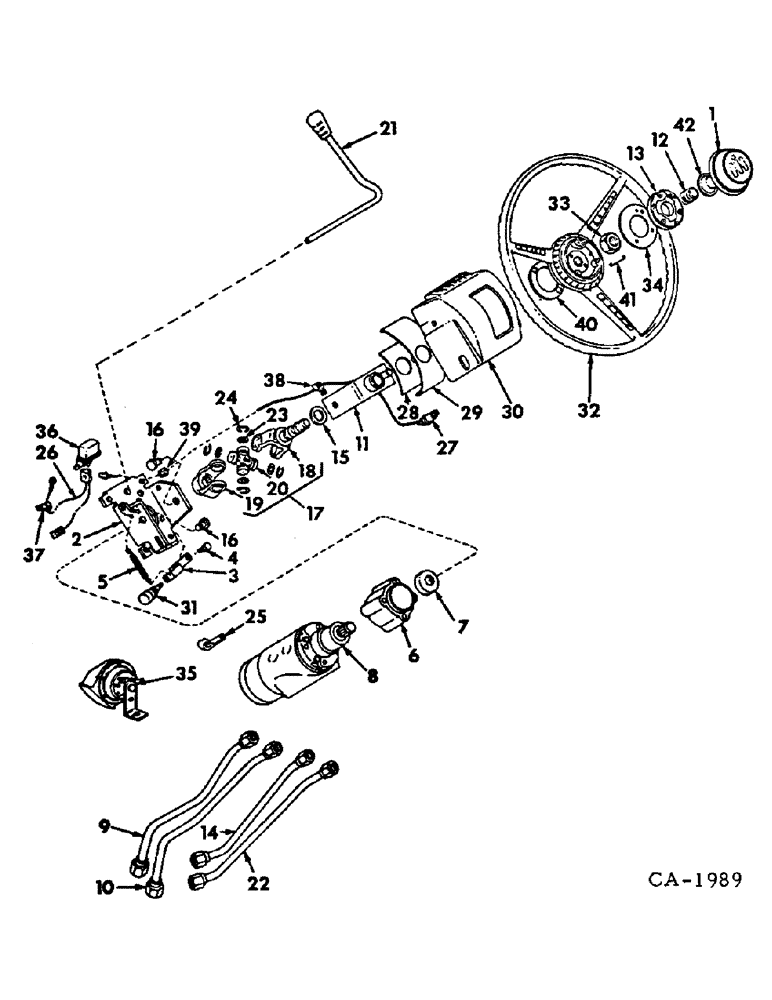

Схема запчастей Case IH 1566 - (10-16) - HYDRAULICS, TILT STEERING WHEEL (07) - HYDRAULICS
41
34
38
37
5
35
14
11
32
22
12
20
42
3
40
28
7
1
15
6
39
25
31
24
36
21
33
8
4
23
17
13
10
27
19
26
9
29
18
16
30
2
16

Артикул

Название

Примечание

Количество

1

400220R1

BUTTON

AND INSERT ASSY, horn

1шт.

2

534586R1

SUPPORT

steering wheel lower

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/8-18 x 3/4 C-Z hex-hd cap

3шт.

3

400183R2

SUPPORT ASSY, release lever

1шт.

4

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

shoulder

1шт.

5

400185R1

SPRING

release lever

1шт.

6

534587R1

HUB, power steering hand pump

1шт.

7

226032R1

SEAL

hand pump dust

1шт.

8

70114C93

PUMP

ASSY, power steering hand, For components see list of parts under details of hydrostatic power steering hand pump

1шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

SCREW, 5/16-18 x 2-3/4 C-Z hex-hd cap

3шт.

404178R1

SCREW, steering wheel support

1шт.

9

534588R1

HYD TUBE

TUBE ASSY, hand pump to cylinder left upper section

1шт.

10

534589R1

HYD TUBE

TUBE ASSY, hand pump to cylinder right upper section

1шт.

11

400193R91

SUPPORT

AND BUSHING ASSY, upper

1шт.

12

400396R1

SPRING

steering wheel horn button

1шт.

13

400395R1

PLATE

ASSY, base

1шт.

162906

SCREW, no. 10 x 5/8 C-Z slt-rd hd type B tap

3шт.

14

65377C1

TUBE

ASSY, power steering pressure upper section

1шт.

15

403472R1

SPACER

tilt steering wheel, .015, (Or as required)

2шт.

15

403473R1

SPACER

tilt steering wheel, .030, (Or as required)

1шт.

16

400200R2

PIVOT PIN

PIN, upper shaft support pivot

2шт.

376787R1

WASHER

X-type

2шт.

17

400201R91

JOINT

ASSY, tilt wheel shaft and yoke

1шт.

18

400202R1

YOKE

ASSY, tilt wheel shaft

1шт.

19

400205R1

YOKE

fitting

1шт.

20

150635R92

SPIDER

BEARING AND SPIDER ASSY

1шт.

21

534592R3

HANDLE ASSY, governor control

1шт.

22

65378C1

TUBE

ASSY, power steering return upper section

1шт.

23

357425R1

CORK SEAL

WASHER, cork, blood bros

4шт.

23

M32994

WASHER, cork, mechanics

4шт.

24

357426R1

RING

retaining, blood bros

4шт.

24

M32991

RING, retaining, mechanics

4шт.

25

384554R1

CLIP

horn button cable

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

1шт.

26

534594R1

CABLE ASSY, horn relay

1шт.

27

400391R1

SWITCH

contact roller

1шт.

28

400211R1

SHIM, shield back-up

1шт.

29

400212R1

SHIELD

tilt wheel

1шт.

30

400213R1

COVER

tilt wheel

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

3шт.

31

400214R2

GRIP

ASSY, release lever

1шт.

32

400217R1

WHEEL (STEERING)

WHEEL, steering

1шт.

33

400219R1

NUT, steering wheel

1шт.

34

402434R1

SEAL, horn button

1шт.

35

9000239

HORN

ASSY, 166166R91

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

36

1116920

RELAY

horn, 241120R91

1шт.

37

366460R1

CABLE CLIP

CLIP, horn switch to horn cable

1шт.

38

400392R1

CLIP

contact roller switch cable

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

140711

GROMMET,1/4" ID x 5/8" x .188", Str Cut

rubber

1шт.

40

400393R1

PLATE, steering wheel contact roller

1шт.

125702

SCREW, 6-18 x 1/2 slt-f-hd tap

2шт.

41

400394R1

SPRING

base plate to contact rate

1шт.

42

68025H

CUP

contact

1шт.

Выбрано товаров: 57
