Запчасти Case IH 1566 (10-14) - HYDRAULICS, HYDROSTATIC POWER STEERING, HAND PUMP (07) - HYDRAULICS

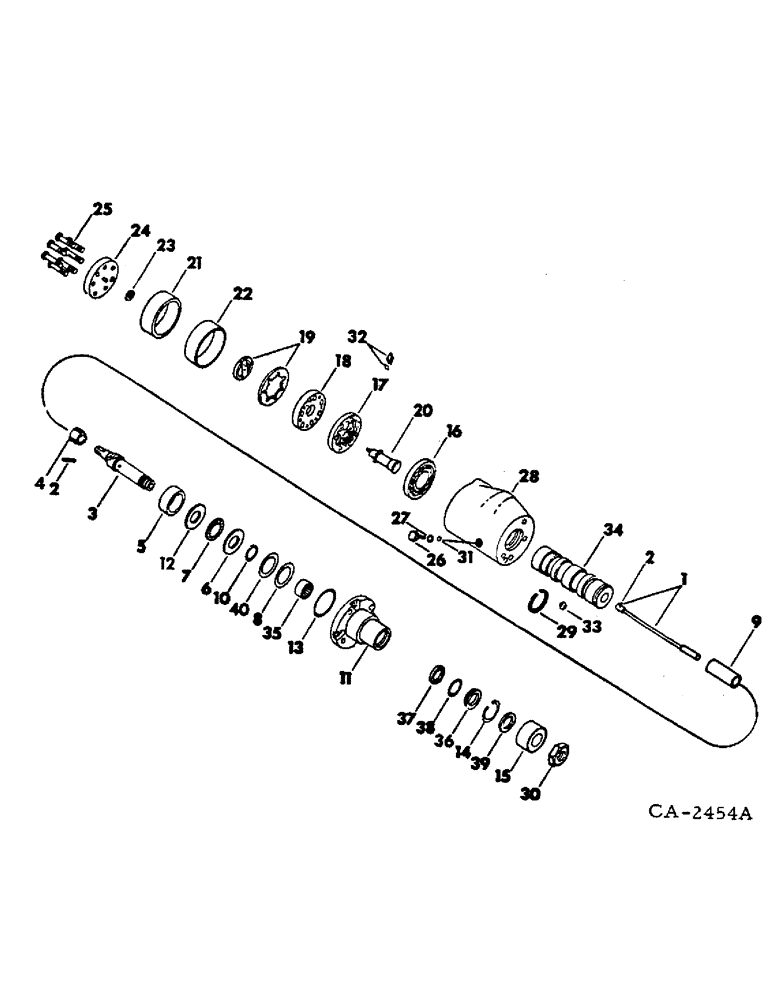

Схема запчастей Case IH 1566 - (10-14) - HYDRAULICS, HYDROSTATIC POWER STEERING, HAND PUMP (07) - HYDRAULICS
1
7
38
13
4
33
8
35
23
25
2
3
2
37
20
39
5
36
34
6
16
21
17
27
29
40
19
14
15
26
10
18
31
32
11
12
24
30
28
9
22

Артикул

Название

Примечание

Количество

70111C93

HYDRAULIC STEERING

PUMP ASSY, power steering hand, Composed of all unmarked parts, and those marked unit A

1шт.

70114C93

PUMP

ASSY, power steering hand, Composed of all unmarked parts, and those marked unit B, tractors w/tilt steering

1шт.

1

537271R1

ROD

TORSION BAR ASSY

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

535057R1

SHAFT

input, unit A

1шт.

3

537281R1

SHAFT

input, unit B

1шт.

4

535058R1

RING

drive

1шт.

5

928468C1

SPACER

1шт.

6

535087R1

THRUST WASHER

thrust

1шт.

7

379783R91

THRUST BEARING

BEARING, thrust

1шт.

8

67567C1

PACKAGE

KIT, shim, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .002

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .03

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .005

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .010

1шт.

9

537272R1

SPACER

drive link

1шт.

10

454331R1

SNAP RING,#87, Ext

1шт.

11

70115C1

COVER

ASSY, upper

1шт.

24481R1

SCREW

5/16-18 x 3/4 flanged 12-pt

4шт.

12

379785R1

THRUST WASHER

WASHER, thrust

1шт.

13

535091R1

RING

seal

1шт.

14

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

15

382587R1

SEAL

SHIELD, pump shaft, Not included in pump assy

1шт.

16

535093R1

SPACER

1шт.

17

537273R1

ROTOR

SET

1шт.

18

535096R1

MANIFOLD

1шт.

19

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

20

538069R1

DRIVE

LINK, drive

1шт.

21

537274R1

SEAL

rotor

1шт.

22

71361C1

RETAINER

seal

1шт.

23

535100R1

THRUST WASHER

1шт.

24

535101R1

COVER

ASSY, end

1шт.

25

537276R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.688", Gr 5

end cover

7шт.

26

379901R91

PLUG

AND ROLL PIN ASSY

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss Plug

1шт.

28

BODY ASSY, Not serviced separately, Order pump assy

1шт.

29

536360R1

SPRING

ball pre-load

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

NUT, 13/16-20 hex, unit A

1шт.

31

16008R1

BALL,1/4" Dia, Steel

1/4 diameter steel

1шт.

32

405785R91

PACKAGE, REPAIR

PACKAGE, vane and spring

1шт.

33

16010R1

BALL

5/16 diameter steel

1шт.

34

SPOOL, body, Not serviced separately, Order pump assy

1шт.

35

BEARING, needle, Not serviced separately, Order cover assy, 70115C1

1шт.

36

SPACER, seal, Not serviced separately, Order package, 123465C1

1шт.

37

RING, shaft seal, Not serviced separately, Order package, 123465C1

1шт.

38

SEAL, shaft ring, Not serviced separately, Order package, 123465C1

1шт.

39

SEAL, felt dust, Not serviced separately, Order package, 123465C1

1шт.

40

928469C1

WAVE WASHER

wave

1шт.

123465C1

X

PACKAGE, hydrostatic power steering hand pump service, Replaces 70116C1, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

SEAL, spacer

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

SERVICE BULLETIN

1шт.

Выбрано товаров: 53
