Запчасти Case IH 1566 (10-09) - HYDRAULICS, POWER STEERING, 1566 TRACTORS (07) - HYDRAULICS

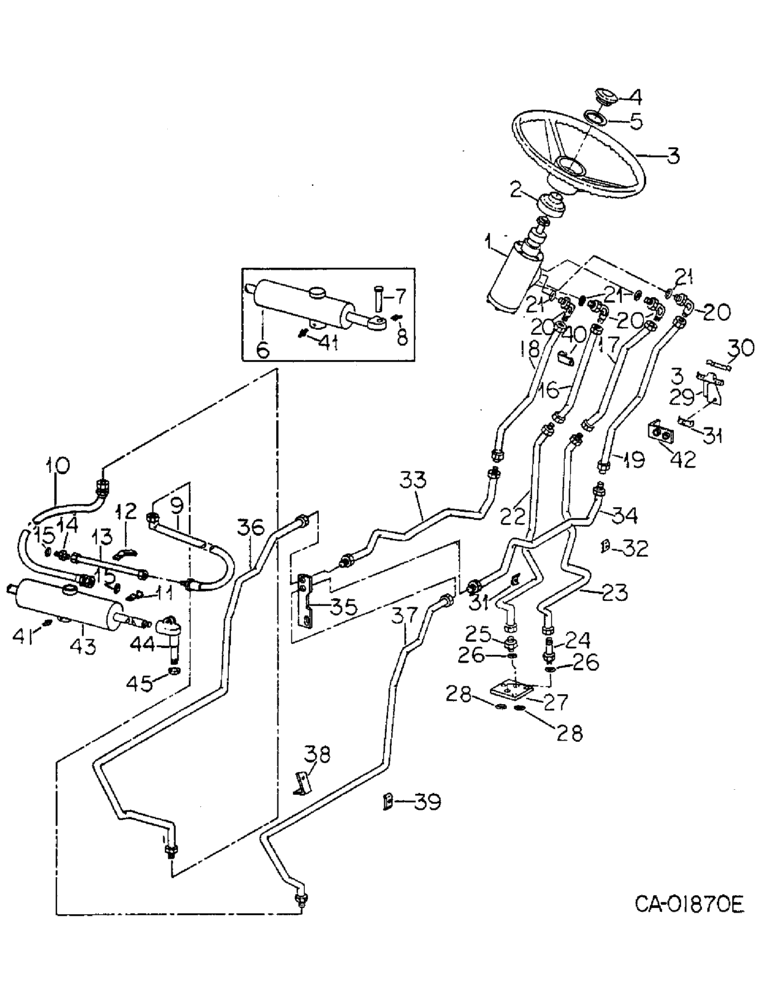

Схема запчастей Case IH 1566 - (10-09) - HYDRAULICS, POWER STEERING, 1566 TRACTORS (07) - HYDRAULICS
45
7
11
20
8
35
28
3
41
21
16
6
37
31
5
24
31
17
10
29
22
13
30
41
26
18
2
12
39
42
33
14
4
21
44
34
19
40
26
23
20
43
9
1
3
25
15
28
38
32
15
27
21
20
36

Артикул

Название

Примечание

Количество

1

70111C93

HYDRAULIC STEERING

PUMP ASSY, power steering hand, For components, see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

382587R1

SEAL

power steering hand pump shaft

1шт.

3

385156R1

WHEEL (STEERING)

WHEEL, 16 in. diameter steering

1шт.

3

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

4

68837C1

CAP

steering wheel

1шт.

5

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

6

533279R93

CYLINDER BLOCK

CYLINDER ASSY, hyd power steering, For components, see list of parts under details of power steering cylinder, 1566 tractor, Serial Range: -13608

1шт.

6

533279R94GV

STEERING CYLINDER

Value, Steering Cylinder

1шт.

7

533580R2

PIN,25.3mm OD x 142.24mm L

cylinder mount

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , 1566 tractor 1/4" x 1 1/2", Serial Range: -13608

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, 1566 tractor 1/8"-27 x .66 lg, Serial Range: -13608

1шт.

9

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY, power steering LH

1шт.

Ref 9 is straight on both ends, per print. One end is female, one is male.

1шт.

10

70313C2

HOSE,0.38" ID x 22.75", SAE 100R7

Power Steering RH 0.38" ID x 22.75", SAE 100R7

1шт.

11

533578R2

CLAMP

tube

1шт.

12

533577R2

CLAMP

hose

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

1шт.

13

533579R2

TUBE

ASSY, cyl RH port to steering LH hose

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube short swivel

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

16

65371C1

TUBE

ASSY, power steering pressure upper section

1шт.

17

65372C1

TUBE

ASSY, power steering return upper section

1шт.

18

534549R1

HYD TUBE

TUBE ASSY, hand pump to cyl right upper section

1шт.

19

534548R1

HYD TUBE

TUBE ASSY, hand pump to cyl left upper section

1шт.

20

531711R1

ELBOW UNION

ELBOW, 9/16-18 37 deg hyd flared tube adj str thd 90 deg

4шт.

21

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

22

65373C1

TUBE ASSY.

TUBE ASSY, power steering pressure lower

1шт.

23

65374C1

TUBE ASSY.

TUBE ASSY, power steering return lower

1шт.

24

9410228

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

UNION, 9/16-18 C-Z 37 deg hyd flared tube long swivel

1шт.

25

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube short swivel

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

27

537840R1

BLOCK

power steering manifold, Replaces 537841R1

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

28

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

2шт.

29

537846R1

SUPPORT

ASSY, power steering tube rear

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

Q286

WASHER, 9/32 x 1 x .048

1шт.

30

537842R1

CLAMP

ASSY, power steering tubes rear

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

535307R1

CLAMP

tube

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

535306R1

CLAMP

ASSY, tube

1шт.

33

537837R1

HYD TUBE

TUBE ASSY, power steering center section RH

1шт.

9410059

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 adj str thd fitting lock

1шт.

34

537836R1

HYD TUBE

TUBE ASSY, power steering center section LH

1шт.

9410059

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 adj str thd fitting lock

1шт.

35

537839R1

SUPPORT, power steering center section bulkhead

1шт.

NLS

NO LONGER SERVICED

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

36

70311C1

TUBE

ASSY, power steering front section and cylinder right turn

1шт.

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulkhead union lock

1шт.

37

70310C1

TUBE

ASSY, power steering front section and cylinder left turn

1шт.

Ref #37 (P/N 70310C1) - refer to SB 3236

1шт.

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulkhead union lock

1шт.

38

537844R1

BRACKET

ASSY, power steering tube support front channel

1шт.

39

535307R1

CLAMP

power steering tube bracket

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

40

155850H1

CLAMP,3/8", 1/4" Bolt

power steering tube

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

41

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

42

65379C1

BRACKET ASSY, upper tube mounting

1шт.

671943R1

ELBOW

FITTING, bulkhead 90 deg

2шт.

43

63864C91

CYLINDER

ASSY, hyd power steering, for components, See list of parts under details of power steering cylinder, 1566 tractors, Start Serial: 13609

1шт.

44

71820C91

END

ball joint rod, Use w/cylinder 63864C91

1шт.

614451C1

BLADE

WASHER, 1-1/32 x 1-3/4 x .105 znd

1шт.

272322

WASHER

7/8-14 slt thick hex

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

69981R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex w/nylon insert

1шт.

45

71822C1

SEAL

dust, Use w/cylinder 63864C91

1шт.

Выбрано товаров: 77
