Запчасти Case IH 1566 (10-08) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULICS

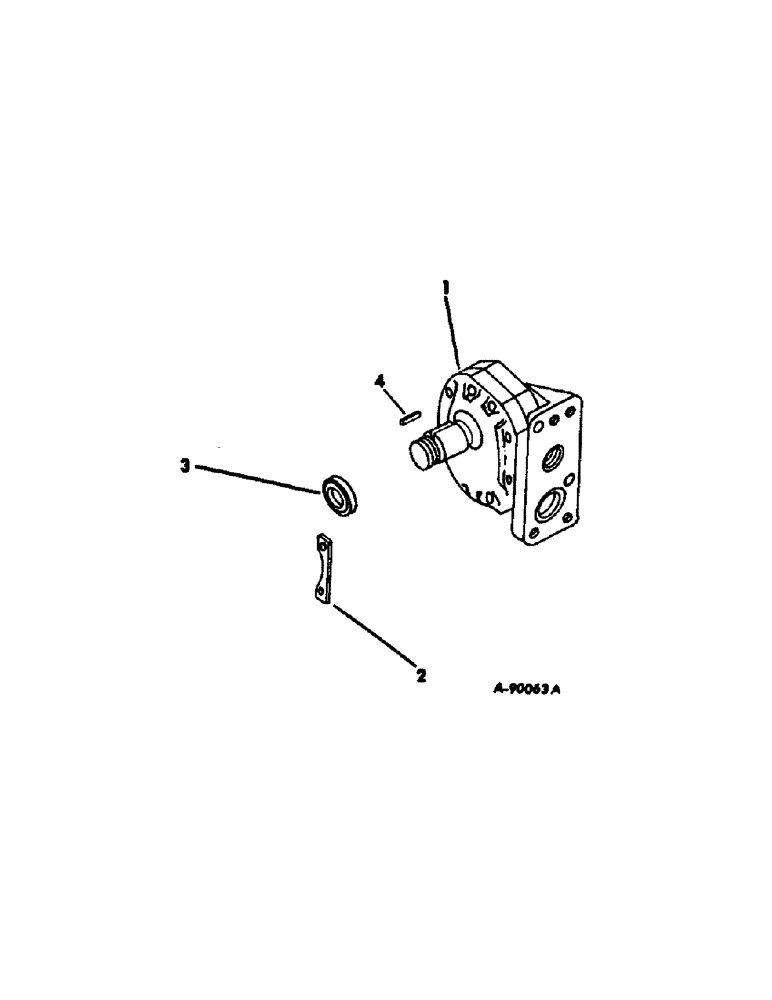

Схема запчастей Case IH 1566 - (10-08) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULICS
2
1
4
3

Артикул

Название

Примечание

Количество

1

527397R92

HYDRAULIC PUMP

PUMP ASSY, hydraulic, Includes ref nos 2, 3 and 4, Optional with 64801C91

1шт.

1

1949304C1

REMAN-HYD PUMP

Reman for New PN 527397R92

1шт.

1

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

531530R1

LARGE PLATE

PLATE, washer

1шт.

528174R1

SCREW

5/16-18 special hex-hd cap

2шт.

3

383534R91

OIL SEAL

pump drive shaft

1шт.

4

383539R1

KEY

pump drive shaft

1шт.

63687C1

KIT

PACKAGE, hydraulic pump gasket service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

DIAPHRAGM

1шт.

NSS

NOT SOLD SEPARAT

GASKET, nomex

1шт.

NSS

NOT SOLD SEPARAT

GASKET, steel

1шт.

NSS

NOT SOLD SEPARAT

PLATE

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

Выбрано товаров: 15
