Запчасти Case IH 1486 (07-54) - DRIVE TRAIN, SADDLE ASSEMBLY, TRACTORS WITH ALL WHEEL DRIVE, ELWOOD FRONT AXLE (04) - Drive Train

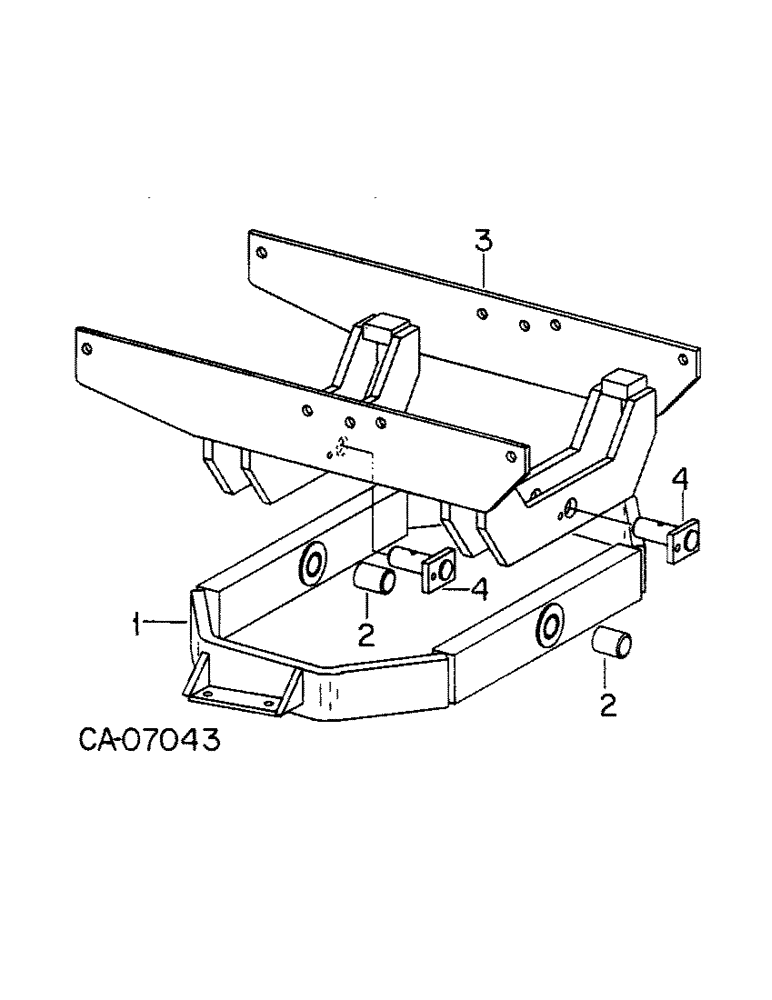

Схема запчастей Case IH 1486 - (07-54) - DRIVE TRAIN, SADDLE ASSEMBLY, TRACTORS WITH ALL WHEEL DRIVE, ELWOOD FRONT AXLE (04) - Drive Train
1
4
2
3
4
2

Артикул

Название

Примечание

Количество

1

148815C1

SADDLE, lower

1шт.

2

148816C1

SPACER

bushing

2шт.

3

148817C1

SADDLE, upper

1шт.

4

148818C1

PIN

saddle

2шт.

172745

WASHER, 1.625 x 3.500 x .153 pln

4шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

109457

LUBE NIPPLE,65 Degree, 5/16" NPT x .70" lg, Drive

FITTING, 1/8 ptf extra short lub

2шт.

271589

SCREW,Hex, 5/8" - 18 x 2 1/2", Gr 5

5/8-NF x 2-1/2 pln type 5

4шт.

425-1110

NUT,5/8"-18, G5

8шт.

Выбрано товаров: 10
