Запчасти Case IH 1486 (07-33) - DRIVE TRAIN, INDEPENDENT POWER TAKE OFF, SINGLE SPEED, 1486 TRACTOR WITH SERIAL NO. 25999 AND BELOW (04) - Drive Train

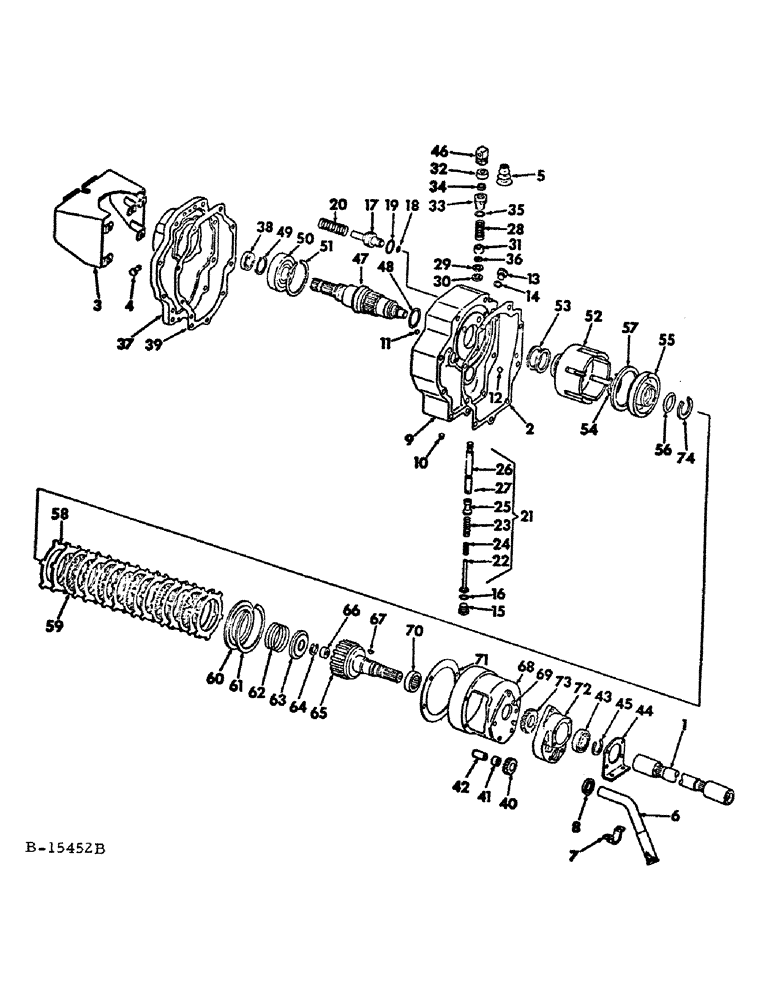

Схема запчастей Case IH 1486 - (07-33) - DRIVE TRAIN, INDEPENDENT POWER TAKE OFF, SINGLE SPEED, 1486 TRACTOR WITH SERIAL NO. 25999 AND BELOW (04) - Drive Train
69
24
21
73
72
50
9
28
16
54
22
42
27
47
40
52
25
66
11
60
65
6
37
46
51
68
74
71
10
49
58
13
18
32
56
64
45
41
2
63
44
48
67
1
57
3
59
7
23
43
62
14
53
12
20
33
39
26
8
30
4
61
15
29
31
70
36
17
34
5
35
38
55
19

Артикул

Название

Примечание

Количество

1

381513R11

SHAFT

ASSY, PTO extension

1шт.

Both couplers are the same on this shaft, P/N 360168R1.

1шт.

2

381467R1

GASKET

PTO housing & rear frame

1шт.

3

401151R2

PROTECTOR

SHIELD ASSY, independent PTO safety

1шт.

4

390973R1

BOLT,Hex, 1/2" - 13 x 0.94"

BOLT, independent PTO safety shield

4шт.

5

393071R2

BELLOWS

BOOT, control dust

1шт.

6

395120R1

TUBE

ASSY, suction

1шт.

7

381525R1

SUPPORT TUBE,2.8" Length

SUPPORT, suction tube

1шт.

109084

NUT,1/4"-20, G5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4 -20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

suction tube

1шт.

9

381462R21

HOUSING

w/ball, 16008R1, ball, 16020R1, & plug, 444660, independent PTO

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

10

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc-hd pipe

1шт.

11

17008R1

BALL,1/4" Dia

Grade 2, Chrome-Steel 1/4" Dia

1шт.

12

17020R1

BALL,5/8" Dia

5/8 grade 2 cr-stl

1шт.

13

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/8-24 str thd-o-ring boss, gauge hole

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Gauge hole plug

1шт.

15

9410360

PLUG

7/8-14 str thd-o-ring boss, valve stop

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, valve stop plug

1шт.

17

381464R22

PISTON

ASSY, anti-creep brake

3шт.

18

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16, anti-creep brake piston

3шт.

19

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1-3/8 x 1-5/8 x 1/16, anti-creep brake piston

3шт.

20

381466R1

SPRING

anti-creep brake piston

3шт.

21

534386R91

LOCK VALVE

VALVE ASSY, control

1шт.

22

381469R12

GUIDE

ASSY, control valve

1шт.

23

381760R1

SPRING

control valve light

1шт.

24

403905R2

VALVE SPRING

SPRING, control valve heavy

1шт.

25

381472R1

VALVE

control

1шт.

26

NSS

NOT SOLD SEPARAT

STEM, control valve guide, (Not serviced separately) order valve assy, 534386C91

1шт.

27

400518R2

PIN,1.59mm OD x 9.4mm L

control valve dowel

1шт.

28

133362C1

VALVE SPRING

SPRING, control valve bumper, replaces 381762R1

1шт.

496-21047

WASHER

.469 x .922 x .051 pln

1шт.

29

384562R1

SHIM

bumpers spring

1шт.

30

384564R1

SPACER

bumper spring pre-load sleeve

1шт.

31

381763R1

SEAT

SLEEVE, bumper spring pre-load

1шт.

32

528486R1

STOP

control valve stem

1шт.

102635

NUT,3/8"-16, G5

1шт.

33

381476R3

PLUG

COVER, control valve

1шт.

34

381477R91

SEAL,9.73mm ID x 22.33mm OD x 6.35mm Thk

control valve cover oil

1шт.

35

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64, control valve cover

1шт.

36

384875R1

WASHER

control valve stem

1шт.

37

64787C91

COVER

W/PRODUCT GRAPHIC, independent PTO housing

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/4 x 1-1/4 dowel

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

2шт.

187152

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5 pln type 5

8шт.

38

381480R91

OIL SEAL

output shaft oil

1шт.

39

381481R1

GASKET

independent PTO cover & housing

1шт.

40

381500R1

PINION

GEAR, pump idler

1шт.

41

381501R91

NEEDLE BEARING

pump idler gear needle

1шт.

42

381502R1

SHAFT

pump idler gear

1шт.

43

ST568

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, drive shaft front

1шт.

44

381503R1

RETAINER

drive shaft front bearing

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

45

359141R1

RING, SNAP

RING, drive shaft front bearing snap

1шт.

46

384194R2

NUT,3/8" - 16

valve adjustment

1шт.

47

71257C1

SHAFT

independent PTO

1шт.

48

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2-1/8 x 2-5/16 x 3/32, independent PTO shaft

1шт.

49

359894R1

RING, SNAP

RING, output shaft locating snap

1шт.

50

381483R91

ROLLER BEARING,1.7717" ID x 3.337" OD x 0.9843"

output shaft rear ball

1шт.

51

357201R1

RING

shaft rear brg retaining snap

1шт.

52

381484R2

CUP

clutch

1шт.

53

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

clutch cup seal

2шт.

54

68625C1

RING

clutch cup retaining snap

1шт.

55

68080C1

PISTON

clutch

1шт.

56

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1-7/8 x 2-1/4 x 3/16

1шт.

57

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL, clutch piston oil

1шт.

58

NSS

NOT SOLD SEPARAT

DISC, clutch driven, (not serviced separately) order package, 68802C91

1шт.

59

NSS

NOT SOLD SEPARAT

PLATE ASSY, clutch, (not serviced separately) order package 68802C91

1шт.

60

381491R1

RETAINER

clutch driven disc

1шт.

61

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING, clutch driven disc retainer snap

1шт.

62

381493R1

SPRING

clutch release

1шт.

63

381494R1

RETAINER

clutch release spring

1шт.

64

370504R1

RING

clutch release spring retainer snap

1шт.

65

389529R1

SHAFT

drive

1шт.

66

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, drive shaft front

1шт.

67

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

68

529564R31

CARRIER

ASSY, independent PTO clutch

1шт.

27907R1

CAPSCREW,Flange, 3/8" x 2.50", Alloy Steel

SCREW, 3/8 x 2.500 pln type 8 12 pt flg

4шт.

69

19879R1

SPLIT PIN/SAFETY PIN

PIN, 5/16 x 3/4 dowel

2шт.

70

359950R91

NEEDLE BEARING

BEARING, drive shaft rear

1шт.

71

529565R1

GASKET

IPTO clutch carrier, clutch pressure tube

1шт.

72

381498R1

HOUSING

pump

1шт.

NLS

NO LONGER SERVICED

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

73

381499R1

PINION

GEAR, pump driver

1шт.

74

258400C1

SNAP RING,#187, Ext

Ring, Snap, , clutch piston stop #187, Ext

1шт.

68802C91

DISC

PACKAGE, independent PTO clutch plate and disc, consists of (12) disc 381489R3 (NSS), (5) plate 381490R92 (NSS)

1шт.

77721C91

STRIPPER PACKAGE

PACKAGE, seal and gasket, consists of ref nos 2, 5, 8, 14, 16, 17, 18, 19, 27, 29, 30, 34, 35, 38, 39, 48, 53, 56, 57, 67 and 70 and service parts not applicable to this tractor

1шт.

389131R1

GASKET

1шт.

530690R1

GASKET

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

Выбрано товаров: 95
