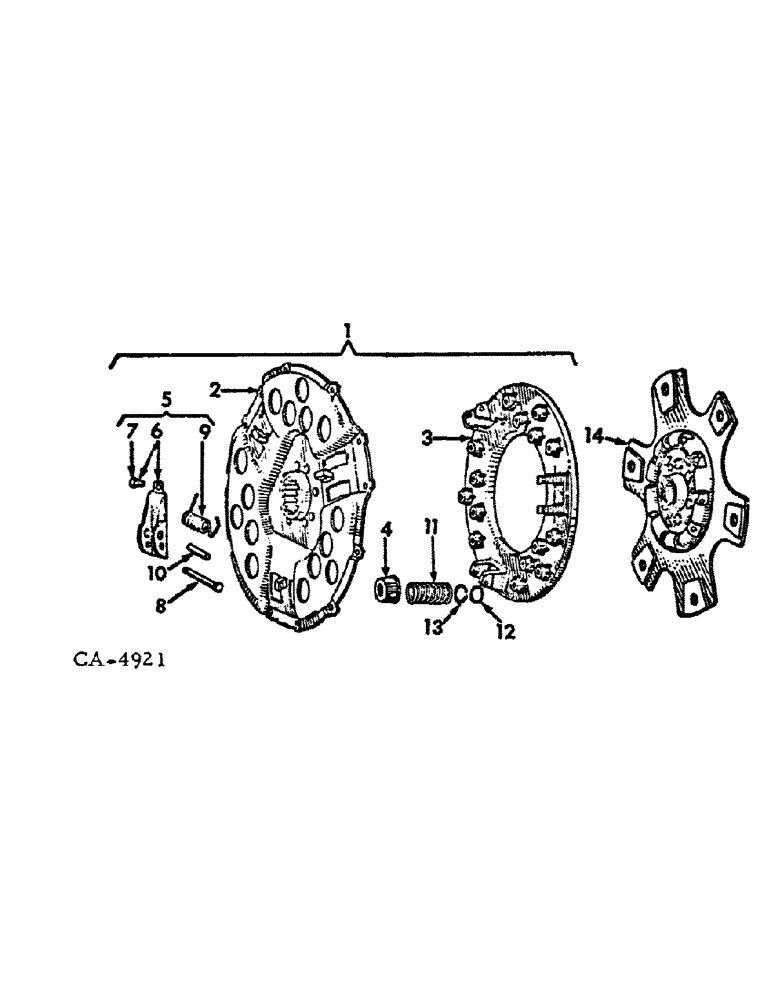

Запчасти Case IH 1486 (07-03) - DRIVE TRAIN, CLUTCH, 1086 AND 1486 TRACTORS (04) - Drive Train

1

120181C92

PLATE ASSY.

PLATE ASSY, clutch pressure, 1086 tractor

1шт.

1

120181C92R

REMAN-CLUTCH PLATE

Remanufactured 14" Clutch Plate Assembly INC. 12 Springs

1шт.

1

120181C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1

389769A1

REMAN-CLUTCH KIT

1086, 1486, Kit Includes: 1 - 120181C92R Plate W/ 12 Springs, 1 - 393117R93R Disc, 1 - 69789C91 Pkg., 1 - 524598R91 Brg.

1шт.

1

389769A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

1

1251688C91

CLUTCH

PLATE ASSY, clutch pressure, renewed for 120181C92

1шт.

1

67597C92

COVER

PLATE ASSY, clutch pressure, 1486 tractor

1шт.

1

67597C92R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 14 in, 17 tooth Hub, 15 Springs

1шт.

1

67597C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1

1251686C91

CLUTCH

PLATE ASSY, clutch pressure, renewed for 67597C92

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

12шт.

2

390806R92

PLATE

PLATE ASSY, clutch pressure back

1шт.

3

390807R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

4

353316R1

SPRING CUP

CUP, clutch pressure spring

15шт.

5

390808R92

PACKAGE

PACKAGE, clutch lever

3шт.

6

390810R92

LEVER

LEVER ASSY, clutch

3шт.

7

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

SCREW, clutch lever adjusting

3шт.

8

146809R1

PIN

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

120394

WASHER,3/8", SAE

WASHER, 11/32 x 13/16 x .065

3шт.

9

390809R2

SPRING

SPRING, clutch lever

3шт.

10

146810R1

AXLE PIN

PIN, lever pivot

3шт.

11

71805C1

SPRING

SPRING, clutch pressure, 1086 tractor

15шт.

11

172062R1

SPRING

SPRING, clutch pressue, 1486 tractor

15шт.

12

311291C1

INSULATING WASHER

WASHER, insulating

15шт.

13

311292C1

WASHER

WASHER, retainer

15шт.

14

393117R92

CLUTCH DISC

CLUTCH DISK DISC ASSY, clutch driven, dyna life, 1086 tractor

1шт.

14

393117R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 14 in., 11 Tooth Hub, 6 Paddle

1шт.

14

393117R93C

CORE-CLUTCH DISC

Return Part Number

1шт.

14

1251684C91

CLUTCH

DISC ASSY, clutch driven, dyna life, renewed for 393117R92

1шт.

14

67600C1

DISC

DISC ASSY, clutch driven, dyna life, 1486 tractor

1шт.

14

1251678C1

CLUTCH

DISC ASSY, clutch driven, dyna life, renewed for 67600C1

1шт.
