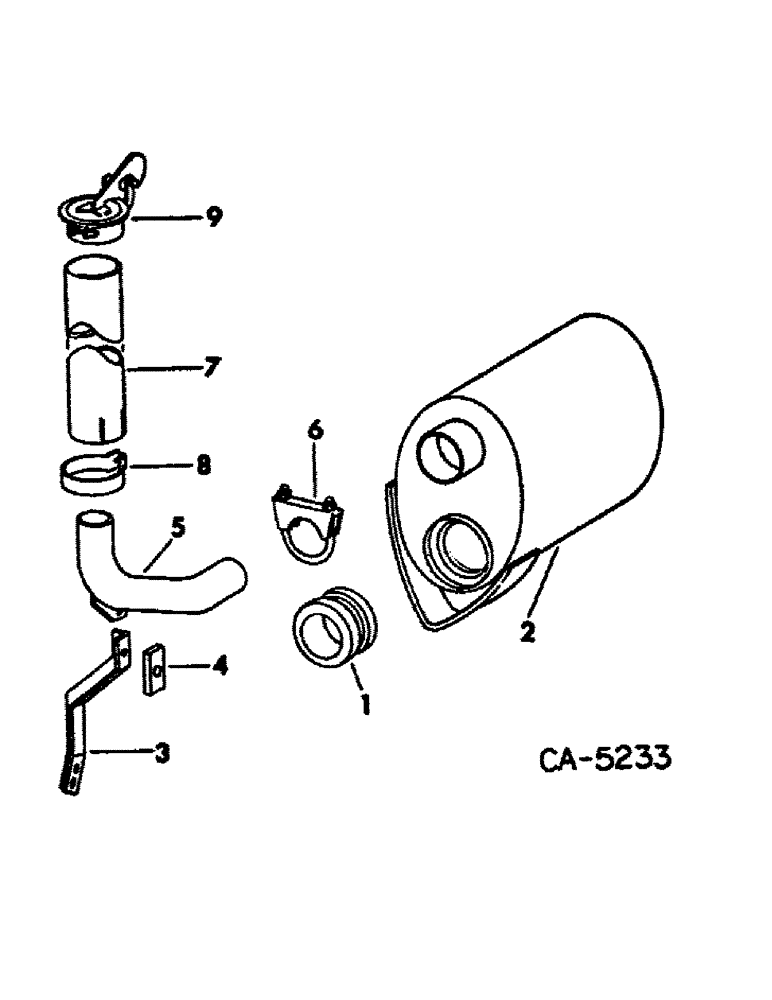

Запчасти Case IH 1486 (12-06) - POWER, EXHAUST SYSTEM, 1086 AND 1486 TRACTORS Power

1

107594C1

SPACER

SLEEVE, turbo exhaust, w/Aspirator

1шт.

2

103978C2

MUFFLER

exhaust

1шт.

2

103978C2GV

MUFFLER

exhaust

1шт.

NLS

NO LONGER SERVICED

4шт.

3

76550C1

SUPPORT

exhaust elbow mounting, replaces 120316C1 support & 120317C1 bar

1шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 hex-hd cap

1шт.

4

(Not used in this application)

1шт.

5

103980C1

ELBOW UNION

ELBOW ASSY, exhaust muffler outlet

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21496R1

WASHER

.344 x .75 x .105 zn

2шт.

6

877978R92

COLLAR CLAMP

CLAMP ASSY, muffler

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

146520C2

PIPE

exhaust, swept back pipe

1шт.

7

103983C1

PIPE CLAMP

PIPE, exhaust, straight pipe

1шт.

8

663432C1

CLAMP,69.85mm - 82.65mm

exhaust

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hardened

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

321575R91

CAP

ASSY, exhaust, used w/103983C1

1шт.
