Запчасти Case IH 1486 (12-02) - POWER, AIR CLEANER CONNECTIONS, 1086 AND 1486 TRACTORS Power

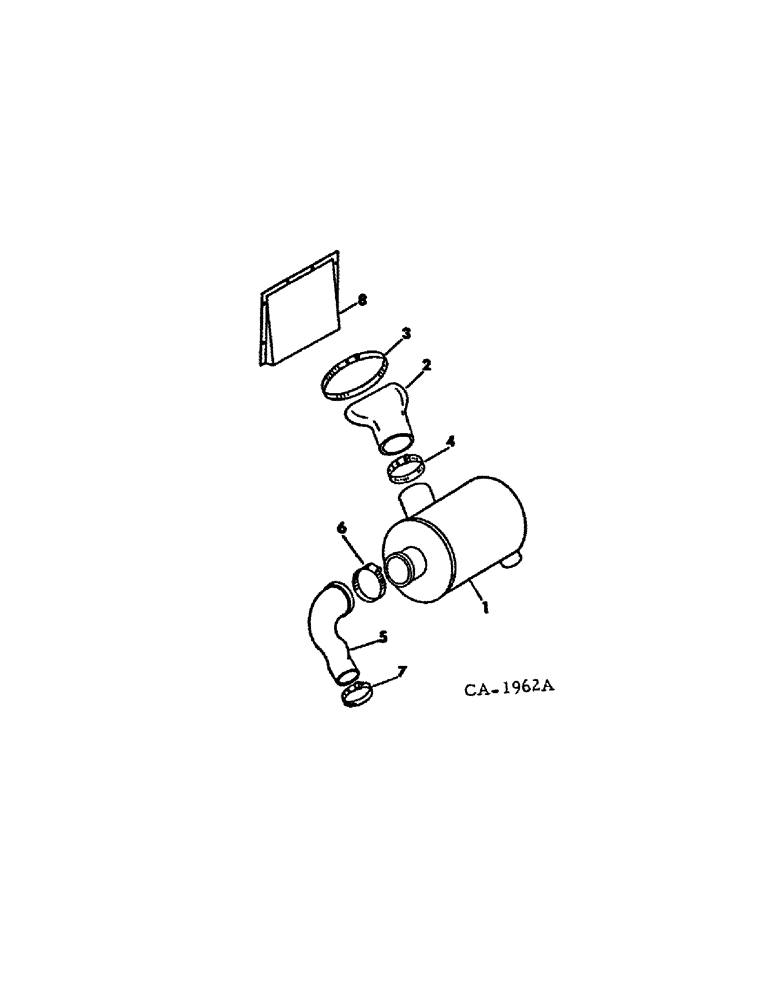

Схема запчастей Case IH 1486 - (12-02) - POWER, AIR CLEANER CONNECTIONS, 1086 AND 1486 TRACTORS Power
5
1
4
2
6
8
3
7

Артикул

Название

Примечание

Количество

1

CLEANER ASSY, air, refer to air cleaner assy, for list of component parts

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179902

BOLT,Hex, 9/16" - 12 x 1", Gr 5

SCREW, 9/16-12 x 1 hex-hd cap

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

103344

19/32 x 1-3/16 x 16 ga

1шт.

2

532455R1

INTAKE AIR HOSE

HOSE, air cleaner intake

1шт.

3

427312R91

HOSE CLAMP,#100, 5.88/6.75 Type F Worm

CLAMP, intake hose front

1шт.

4

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP, intake hose rear

1шт.

5

532457R1

INTAKE AIR HOSE

HOSE, air cleaner outlet, 1086 tractors, Serial Range: -25509

1шт.

5

67684C1

INTAKE AIR HOSE,101.60 mm ID x 138.00 mm

- Air cleaner outlet, 1486 tractor 101.60 mm ID x 138.00 mm

1шт.

5

67684C1

INTAKE AIR HOSE,101.60 mm ID x 138.00 mm

- Air cleaner outlet, 1086 tractors 101.60 mm ID x 138.00 mm, Start Serial: 25510

1шт.

6

397258R1

HOSE CLAMP,#64, 3.56/4.50 Type F Worm, W/liner

CLAMP, air cleaner outlet hose front, 1086 tractors, Serial Range: -25509

1шт.

6

146570C1

CLAMP

air cleaner outlet hose frt, replaces 397270R1, 1486 tractor

1шт.

6

146570C1

CLAMP

air cleaner outlet hose frt, replaces 397270R1, 1086 tractors, Start Serial: 25510

1шт.

7

146569C1

CLAMP

air cleaner outlet hose rear, replaces 400446R1

1шт.

8

120201C1

BAFFLE

pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

Выбрано товаров: 17
