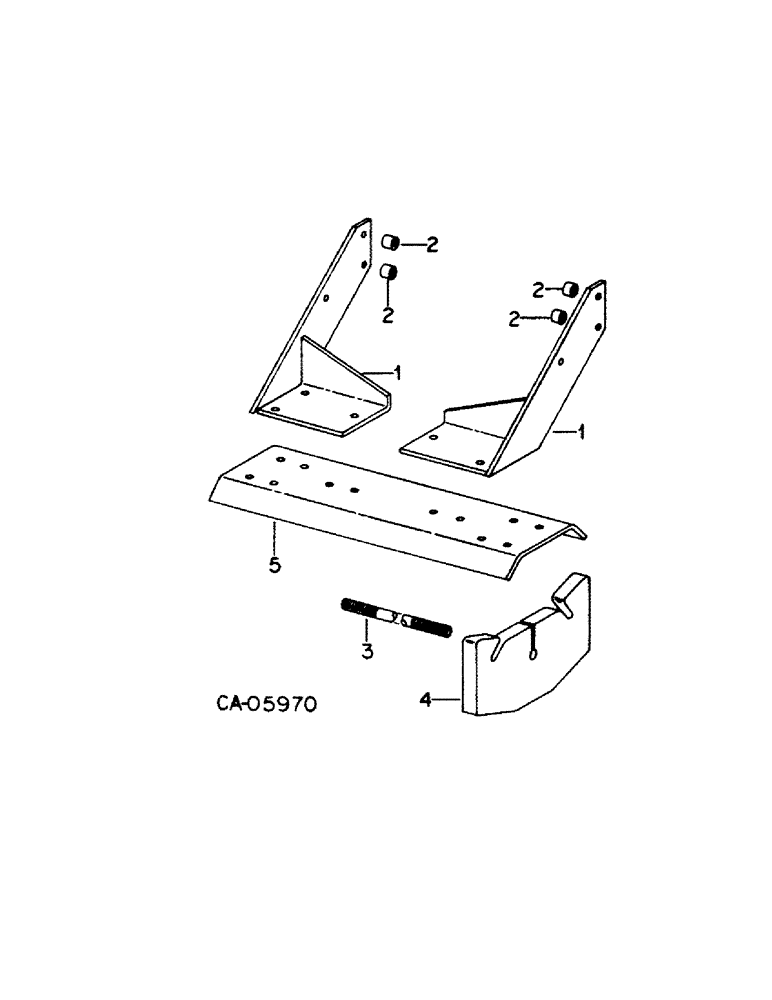

Запчасти Case IH 1486 (09-14[A]) - FRAME, AUXILIARY FRONT END WEIGHT BRACKET AND WEIGHTS, 1086 AND 1486 TRACTORS (12) - FRAME

1

73797C2

SUPPORT, auxiliary weight, LH

1шт.

1

73798C2

SUPPORT

auxiliary weight, RH

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

4шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, used w/bracket 120428C1

2шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, used w/bracket 70484C1

2шт.

2

M42263

SPACER,3/4" X-Strng Pipe x 1"

.742 x 1.05 x 1.00, used w/bracket 120428C1

4шт.

2

27901R1

SPACER, .742 x 1.05 x 3.625, used w/bracket 70484C1

4шт.

3

73799C1

ROD, weight cross-tie

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

656049R1

WASHER

SPACER, .906 x 1.5 x .164

2шт.

4

64928C1

WEIGHT, front end, 42 lbs

1шт.

5

73838C1

PLATE ASSY, front auxiliary weight

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Also furnish lube fitting 127743 for front axle pivot pin 1/2"-13, G5

1шт.
