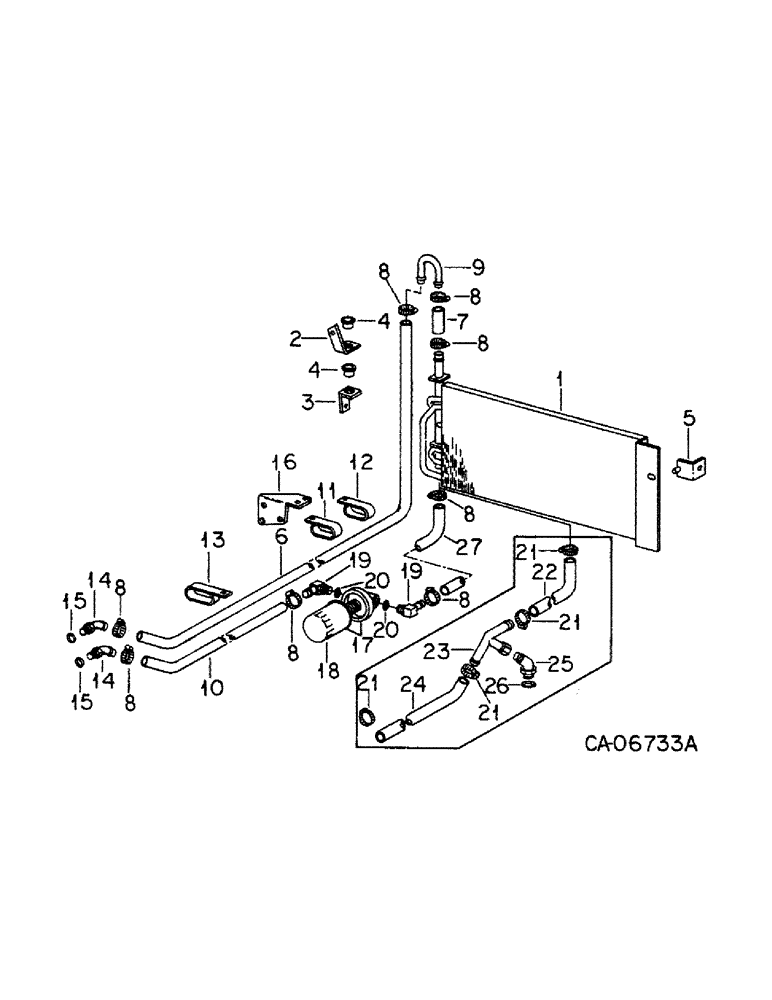

Запчасти Case IH 1486 (06-03) - COOLING, OIL COOLER Cooling

1

120300C1

COOLER

ASSY, oil, 986 and 1086 tractors

1шт.

1

68437C1

COOLER

ASSY, oil, 1486 tractors

1шт.

1

104238C1

COOLER ASSY.

Oil, 986 and 1086 tractors w/air conditioned cab

1шт.

1

104740C1

COOLER ASSY.

Oil, 1486 w/air conditioned cab

1шт.

2

533235R2

HINGE

Upper mtg

1шт.

2

104742C1

HINGE

Oil cooler, tractor w/air conditioned cab

1шт.

3

533236R2

SUPPORT

BRACKET ASSY, oil cooler mtg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

4

387327R1

BUSHING

Oil cooler pivot

2шт.

5

533241R2

BRACKET

ASSY, oil cooler latch

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

5

104743C1

SUPPORT

BRACKET ASSY, cooler latch LH, tractor w/air conditioned cab

1шт.

5

104744C1

SUPPORT

BRACKET ASSY, cooler latch RH, tractor w/air conditioned cab

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

5шт.

104745C2

ROD

LINK, cooler retaining

2шт.

6

HOSE, oil cooler inlet, furnish 98.0 in. from bulk roll marked 146785C1

1шт.

7

HOSE, oil cooler inlet pipe, furnish 2-1/2 in. from bulk roll marked 146785C1

1шт.

8

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

Oil cooler

8шт.

9

71462C1

SPARE PART Oil cooler front upper 1.5" OD

1шт.

10

HOSE, filter to MCV, furnish 37 in. from bulk roll marked 146785C1

1шт.

11

(Not used in this application)

1шт.

12

104773C3

CLAMP

CLIP, oil cooler hose, frt channel

1шт.

615031R1

WASHER

.375 x .875 x .064 pln

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

13

104773C3

CLAMP

CLIP, oil cooler hose, clutch

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 pln type 5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

14

104776C3

ELBOW

2шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

16

138047C1

SUPPORT

BRACKET, filter mtg

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

137938C91

HYDRAULIC OIL FILTER

FILTER, OIL ASSY

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

18

1282428C1

FILTER, ELEMENT

ELEMENT, FILTER (Replaces 137939C1)

1шт.

19

133824C1

ELBOW

90 deg

2шт.

20

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

2шт.

21

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

4шт.

For tractors with tryicycle front upper bolster.

1шт.

22

HOSE, oil cooler outlet upper, furnish 16 in. from bulk roll marked 146785C1

1шт.

For tractors with tryicycle front upper bolster.

1шт.

23

120482C1

TUBE,1" Length

ASSY, steering relief

1шт.

For tractors with tryicycle front upper bolster.

1шт.

24

HOSE, oil cooler outlet lower, furnish 33 in. from bulk roll marked 146785C1

1шт.

For tractors with tryicycle front upper bolster.

1шт.

25

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

See note

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

For tractors with tryicycle front upper bolster.

1шт.

306132C1

CABLE TIE,14.5" L

CABLE STRAP Hose lock

1шт.

For tractors with tryicycle front upper bolster.

1шт.

27

HOSE, oil cooler to filter, use 51 in. from bulk roll marked 146785C1

1шт.
