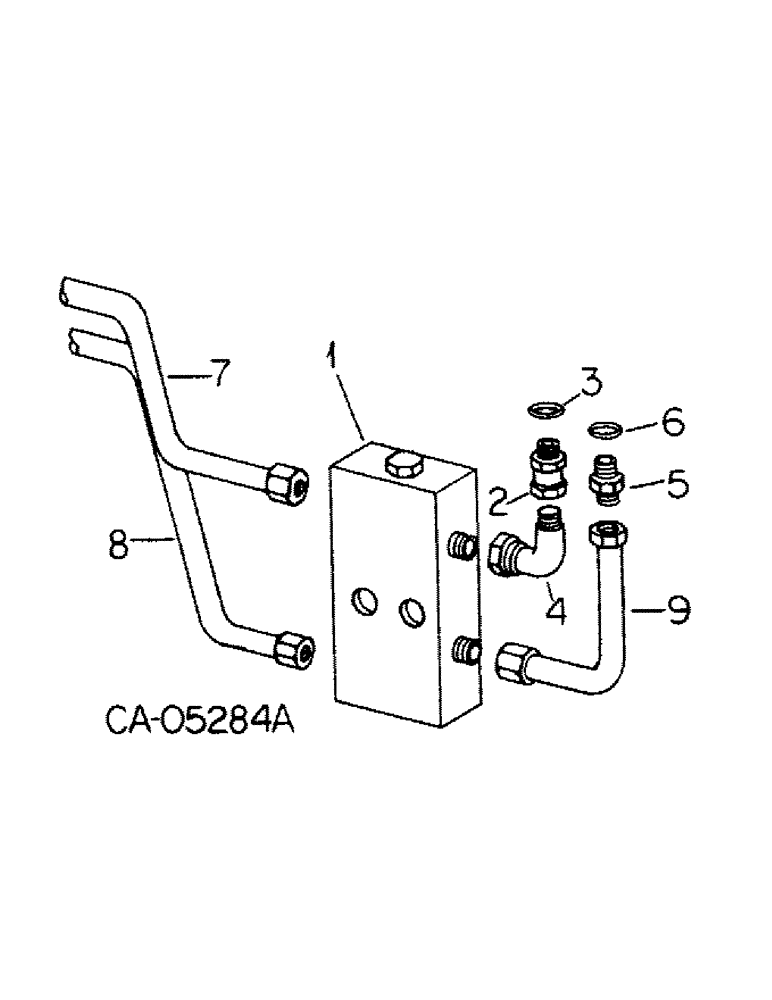

Запчасти Case IH 1486 (10-63) - HYDRAULIC, ALTERNATING CHECK VALVE CONNECTIONS (07) - HYDRAULICS

139166C91

LOCK VALVE

PARTS ACCESSORY, alternating check valve for second aux valve, consists of one each of refs 1-9

1шт.

139168C91

PARTS ACCESSORY, alternating check valve for third aux valve, 986 tractors, consists of one each of refs 1-9

1шт.

139167C91

PARTS ACCESSORY, alternating check valve for third aux valve, 1086 & 1486 tractors, consists of one each of refs 1-9

1шт.

1

142864C95

VALVE

ASSY, alternating check

1шт.

2

66895C1

FITTING

COUPLER, check valve

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

4

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube 90 deg swivel

1шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube short swivel

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

127957C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

7

133333C1

PIPE

TUBE ASSY, 3rd valve raise, 986 tractors

1шт.

7

128012C1

HYD TUBE

TUBE ASSY, 3rd valve raise, 1086 & 1486

1шт.

8

127958C1

HYD TUBE

TUBE ASSY, 2nd valve drop

1шт.

8

128013C1

HYD TUBE

TUBE ASSY, 3rd valve drop

1шт.

9

127956C1

HYD TUBE

TUBE ASSY, check valve to aux valve

1шт.
