Артикул
Название
Примечание
Количество
139164C91

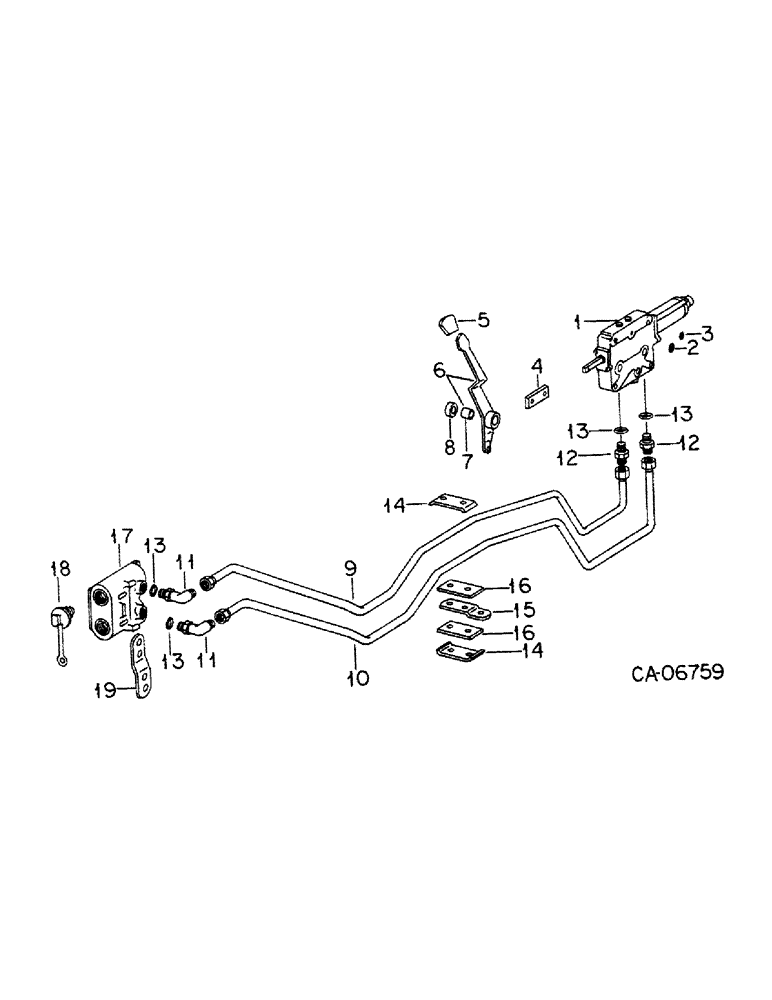

PARTS ACCESSORY, third auxiliary valve, 1086 & 1486 tractors
1шт.
1
113888C93
VALVE
ASSY, close center aux valve, refer to close center control valve this group for list of components
1шт.
20058R1
BOLT,Hex, 3/8" - 16 x 7", Gr 8
3/8 x 7 pln type 8
4шт.
2
391912R1
O-RING,0.737" ID x 0.103" Width
3/4 x 15/16 x 3/32
4шт.
3
702788R1
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
3/8 x 9/16 x 3/32
2шт.
4
139013C1
LINK
aux valve operating
1шт.
400862R1
BOLT,Hex, 5/16" - 18 x 0.85"
shoulder
2шт.
390304C1
WASHER
.344 x .688 x .065 hdn
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
5
1259762C1
KNOB
aux valve control, blue, replaces 139211C1
1шт.
6
120470C91
HANDLE
ASSY, third aux valve
1шт.
7
120464C1
BUSHING,19.07mm ID x 20.68mm OD x 13.21mm L
valve operating lever
1шт.
16066R1
WASHER
SPACER, valve handle outer
1шт.
21018R1
WASHER
SPACER, valve handle outer
1шт.
8
120476R1
SPACER valve handle hub
1шт.
9
127968C1
TUBE
ASSY, third valve raise, cat. III, 1086 & 1486 tractors
1шт.
9
133430C1
HYD TUBE
TUBE ASSY, third valve raise, cat. II, 886 & 986 tractors
1шт.
10
127969C1
HYD TUBE
TUBE ASSY, third valve drop
1шт.
11
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
7/8-14 37 deg hyd flared tube adj str thd 90 deg
2шт.
12
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR, 7/8-14 37 deg hyd flared tube
2шт.
13
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
4шт.
14
104795C1
CLAMP
aux valve tubes
2шт.
15
104797C1
PLATE
isomount aux valve tubes
1шт.
16
104798C1
STRIP
isomount aux valve tubes
2шт.
180137
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
3/8 x 2-3/4 type 5
1шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8 PHC p/t lock type 5
1шт.
17
544786R95
COUPLING, BREAK AWAY
COUPLER ASSY, female, refer to female coupler this group for list of components
1шт.
18
64757C1
PLUG
coupler dust
2шт.
19
120012C1
SUPPORT
BAR, coupler mtg
1шт.
179882
PIN
1/2 x 1-1/8 pln type 5
2шт.
Выбрано товаров: 31
