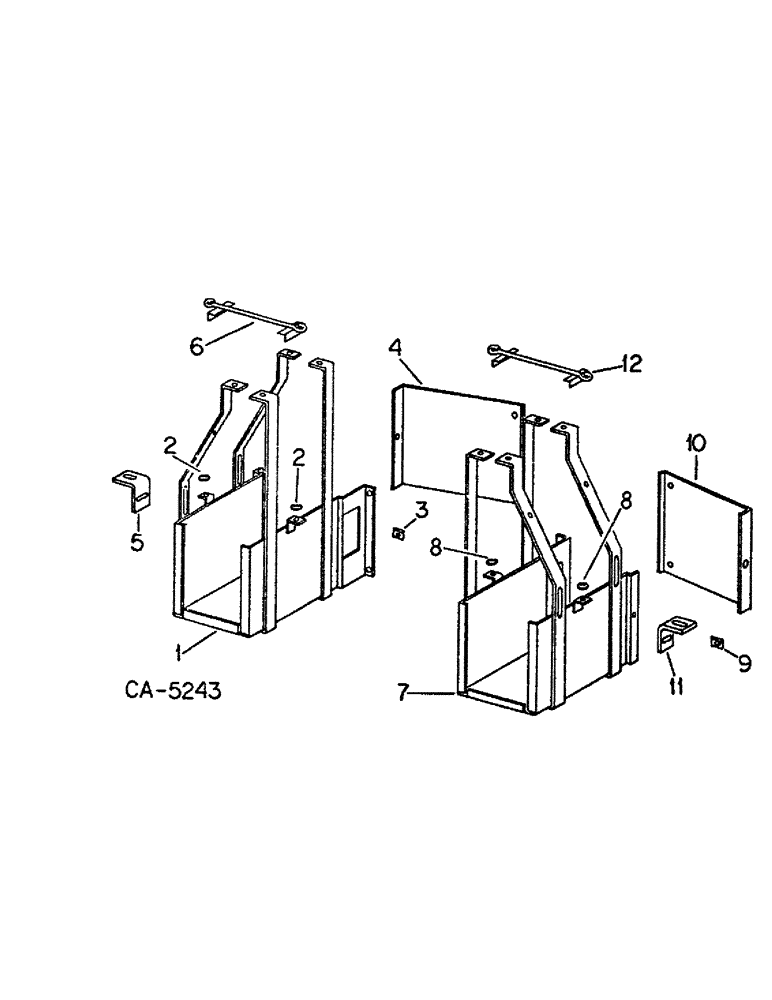

Запчасти Case IH 1486 (08-01) - ELECTRICAL, BATTERY BOX AND MOUNTING (06) - ELECTRICAL

1

104859C3

BOX

ASSY, LH battery

1шт.

550794R1

CARRIAGE BOLT,3/8" - 16 x 3/4", Grade 5

BOLT, 3/8-16 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

598799R1

BOLT

1/4-20 x 1-3/4 znd sq-nk crg

2шт.

2

103932C1

WASHER

springrip, fastener

2шт.

3

104329C1

NUT

speed

3шт.

4

103935C1

SUPPORT

battery box front, cover

1шт.

369918R1

SCREW

SCREW, hex washer hd cap

3шт.

5

104861C1

ANGLE

strap support, bracket

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

SCREW, 3/8-16 x 1 sq-nk crg

2шт.

21741R1

WASHER

.406 x .875 x .105

2шт.

21333R1

NUT,3/8"-16, G8

3/8-16 hex.

2шт.

6

103936C1

SUPPORT

BRACKET ASSY, battery hold down

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 znd

2шт.

86627130

WING NUT,1/4"-20

NUT, 1/4-20 znd wing

2шт.

7

64851C91

BOX

ASSY, RH battery w/product graphic

1шт.

550794R1

CARRIAGE BOLT,3/8" - 16 x 3/4", Grade 5

BOLT, 3/8-16 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

598799R1

BOLT

1/4-20 x 1-3/4 znd sq-nk crg

2шт.

120391C1

DECAL

PRODUCT GRAPHIC, caution instruction

1шт.

8

103932C1

WASHER

springrip, fastener

2шт.

9

104329C1

NUT

speed

3шт.

10

103935C1

SUPPORT

battery box front, cover

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

hex washer hd cap

3шт.

11

104861C1

ANGLE

BRACKET, strap support

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

SCREW, 3/8-16 x 1 sq-nk crg

2шт.

21741R1

WASHER

.406 x .875 x .105

2шт.

21333R1

NUT,3/8"-16, G8

3/8-16 hex.

2шт.

12

103936C1

SUPPORT

BRACKET ASSY, battery hold down

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 znd

2шт.

126177

WING NUT

NUT, 1/4-20 znd wing

2шт.
