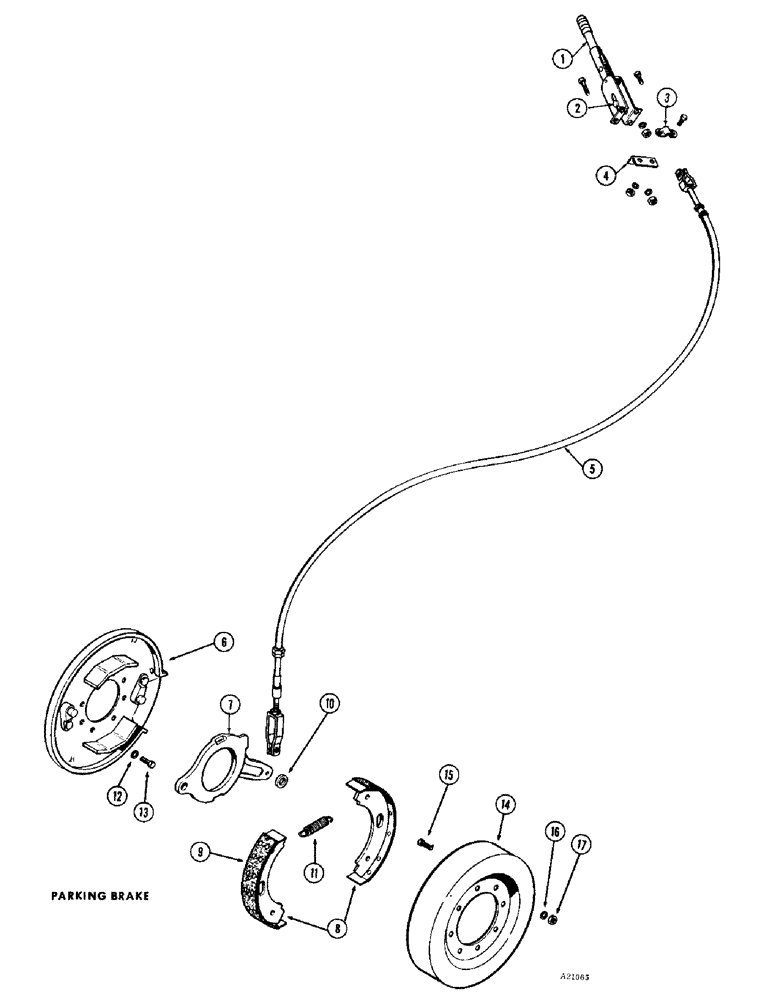

Запчасти Case IH 1470 (122) - PARKING BRAKE (07) - BRAKES

1

A17214

LEVER

ASSEMBLY, Includes: Ref. 2

1шт.

2

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - clevis

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

3

A55980

CLAMP

- cable

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

4

A55979

BRACKET - brake cable

1шт.

5

A55978

CABLE

ASSY. - parking brake

1шт.

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

1шт.

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

A25270

BRAKE ASSY.

- parking, rear axle, Includes: Ref. 6 - 11

1шт.

6

A25269

BACKING PLATE

PLATE ASSY. - back brake

1шт.

7

A12779

LEVER

- cam, brake actuating

1шт.

8

A12780

BRAKE SHOE

SHOE ASSY - brake (1 shoe), Includes: Ref. 9

2шт.

9

A12843

PACKAGE

LINING KIT - brake shoe

1шт.

10

A16642

WASHER

ROLLER - cam lever

1шт.

11

A12788

SPRING - return, brake shoe

2шт.

12

92-7

LOCK WASHER,7/16"

7шт.

13

113-307

X

BOLT - plate to adapter, 7/16" x 1-1/8" N.C. hex.

7шт.

14

A25271

BRAKE DRUM

DRUM - brake

1шт.

15

28-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

- drum to flange, 3/8" x 1-1/4" N.F. hex.

8шт.

16

92-6

LOCK WASHER,3/8"

8шт.

17

129-524

NUT,3/8"-24, G8

8шт.
