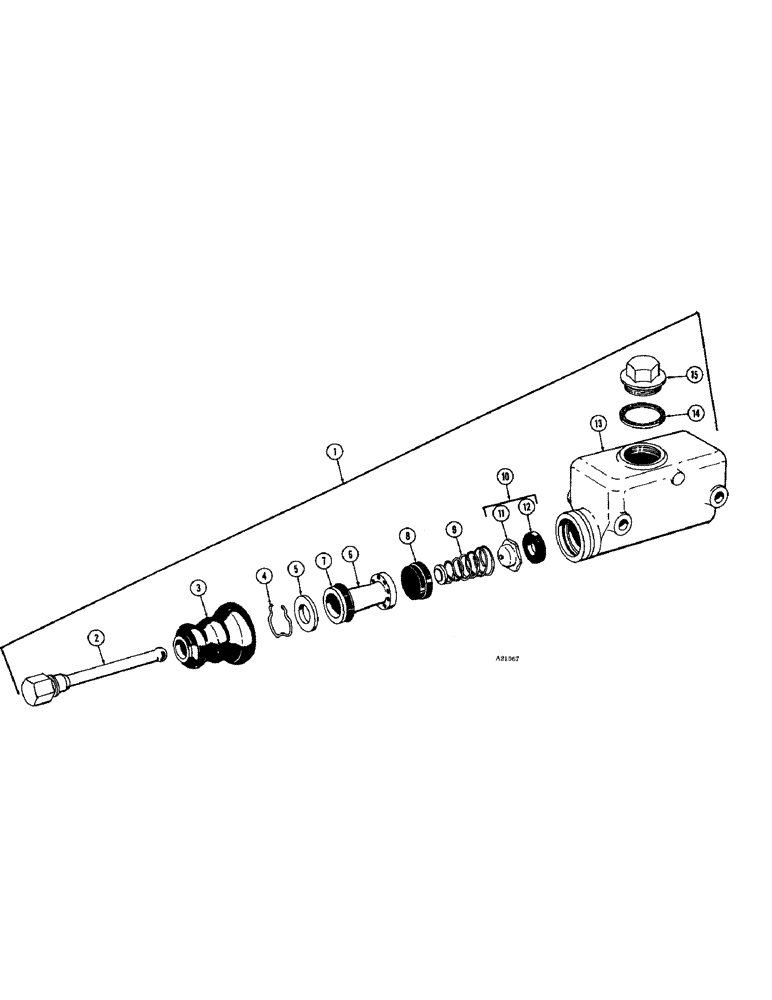

Запчасти Case IH 1470 (118) - MASTER BRAKE CYLINDER (07) - BRAKES

1

T38858

CYLINDER

ASSY. - master brake, Includes: Ref. 2 - 15

1шт.

2

T39013

ROD - cylinder push

1шт.

3

A59966

BOOT

- cylinder dust (Replaced A12434)

1шт.

Part of repair Kit P/N T39155

1шт.

4

T39011

LOCKING DEVICE

LOCKWIRE - piston stop

1шт.

Part of repair Kit P/N T39155

1шт.

5

T39010

PLATE

- piston stop

1шт.

6

T39008

PISTON

ASSY. - cylinder, Includes: Ref. 7

1шт.

Part of repair Kit P/N T39155

1шт.

7

T39009

CUP

- secondary

1шт.

8

T39007

SEAL

CUP - piston primary

1шт.

Part of repair Kit P/N T39155

1шт.

9

T39006

VALVE SPRING

SPRING - return

1шт.

10

T39164

VALVE

& SEAT - cylinder, Includes: Ref. 11 and 12

1шт.

Part of repair Kit P/N T39155

1шт.

11

NSS

NOT SOLD SEPARAT

CHECK VALVE ASSY.

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order T38858)

1шт.

14

A19755

GASKET

- filler plug

1шт.

15

A19754

X

PLUG - filler

1шт.

T39155

REPAIR KIT

KIT - repairs - master brake cylinder (Consists of Refs. 3, 4, 6, 8 and 10)

1шт.
