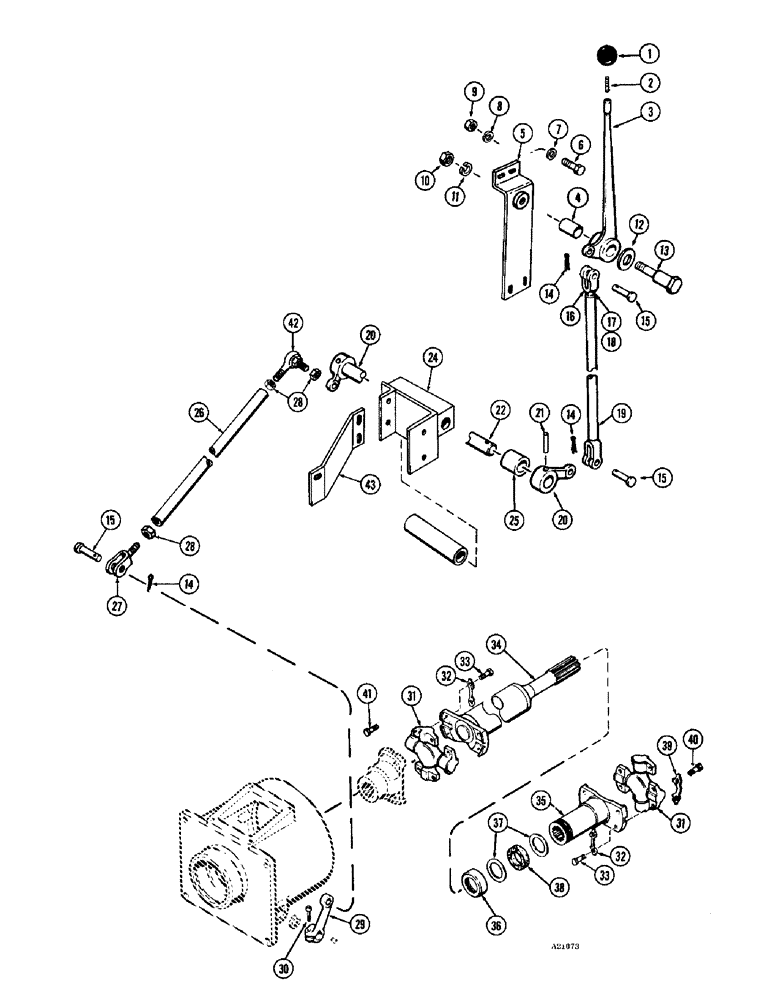

Запчасти Case IH 1470 (166) - P.T.O. CONTROLS AND DRIVE SHAFT (06) - POWER TRAIN

T88062

ATTACH. - P.T.O. drive & clutch (Mach. item), Includes: Ref. 1 - 41

1шт.

1

A18852

KNOB

- P.T.O. control lever

1шт.

2

A16775

STUD

- P.T.O. control lever knob

1шт.

3

A56115

LEVER ASSY. - clutch control P.T.O., Includes: Ref. 4

1шт.

4

L10083

BUSHING

- control lever

1шт.

5

T38677

SUPPORT ASSY. - P.T.O. control lever

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

7

195-25

WASHER,3/8"

- plain, 3/8"

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

10

25-110

POSTER

NUT - 5/8" N.F. hex.

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

A56120

WASHER

- lever pin

1шт.

13

A7442

PIN - P.T.O. control lever mounting

1шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

3шт.

15

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" yoke end

3шт.

16

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - adj., 1/2"

1шт.

17

195-33

WASHER,1/2"

- plain, 1/2"

1шт.

18

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

1шт.

19

T38674

ROD - P.T.O. control lever

1шт.

20

A12115

LEVER - P.T.O. clutch cross shaft

2шт.

21

135-360

PULLEY

PIN - groove, 1/4" x 1-3/4"

2шт.

22

A56126

SHAFT - P.T.O. clutch cross

1шт.

23

B18238

SPACER - cross shaft

1шт.

24

T39740

SUPPORT ASSY. - cross shaft pivot, Includes: Ref. 25

1шт.

25

A31082

BUSHING

- support assy.

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

A56131

TUBE - P.T.O. clutch control

1шт.

27

A56132

FORK

YOKE - control tube

1шт.

28

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

3шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

29

A55456

LEVER - clutch

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Lever Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

T38675

SHAFT

ASSY. - P.T.O. drive, Includes: Ref. 31 - 38

1шт.

31

A40200

U-JOINT SPIDER

SPIDER ASSY. - drive shaft

2шт.

32

A17297

PLATE

LOCK - bolt, drive shaft

4шт.

33

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - drive, Serial Range: shaft-spider

8шт.

34

T39148

TUBE,37.56" L

ASSY. - drive shaft

1шт.

35

A43502

YOKE

ASSY. - drive shaft slip

1шт.

36

A18388

CAP

RETAINER - washer & felt

1шт.

37

A18387

WASHER

- felt retainer

2шт.

38

A18390

WASHER

- slip yoke felt

1шт.

39

L11835

LOCKING PLATE

LOCK - bolt, drive shaft

2шт.

40

A17298

BOLT,Hex, 3/8" x 1 11/16"

- 3/8" x 1-11/16" N.C. hex.

4шт.

41

L10222

BOLT - 3/8" x 2-1/4" N.C. hex.

4шт.

131-5

LOCK NUT,3/8"-16, GB

LOCKNUT - 3/8" Essna

4шт.

42

A55558

BALL JOINT

END - rod

1шт.

43

T39742

BRACE - pivot support

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

195-526

WASHER,7/16" x 7/8" x .083"

- 3/8" Z.P.

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
