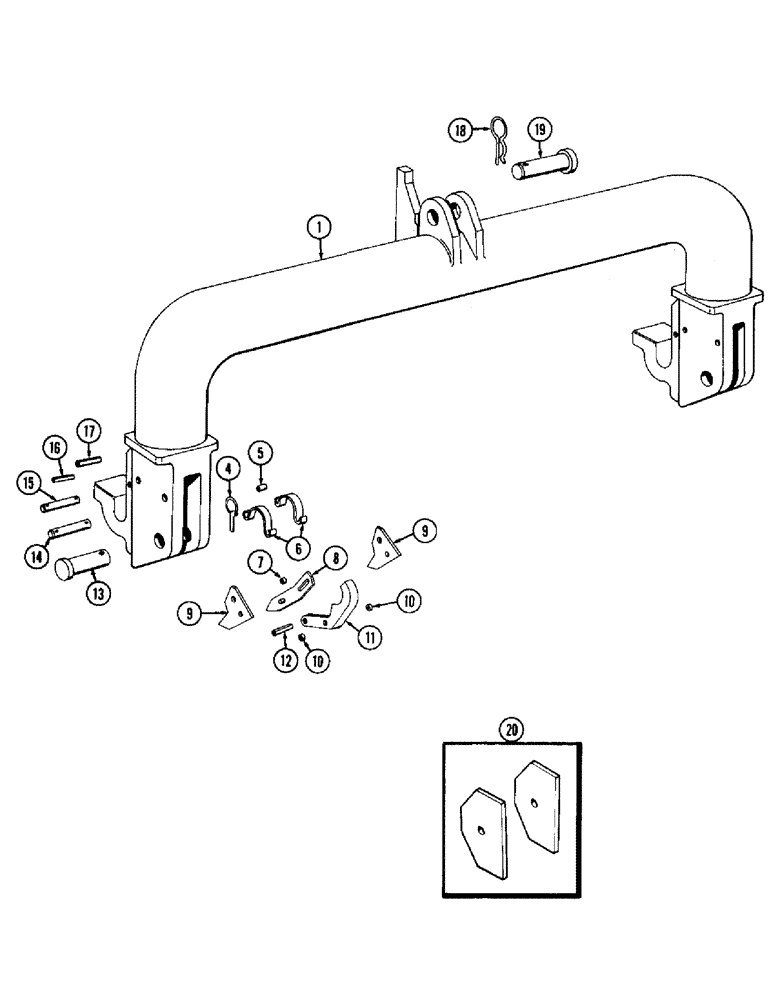

Запчасти Case IH 1470 (164) - HITCH COUPLER ASSEMBLY (06) - POWER TRAIN

T87847

ATTACHMENT - coupler (Mach. item), Includes: Ref. 1 - 19

1шт.

T38740

COUPLER ASSY. - hitch, Includes: Ref. 1 - 19

1шт.

1

T38739

FRAME

- hitch coupler

1шт.

4

A64204

PIN

- keeper (Replaced D33805)

2шт.

5

L10264

BUSHING

SPACER - actuator

2шт.

6

L10263

SPRING

- activator

4шт.

7

A29701

BUSHING

SPACER - release activator

2шт.

8

L10088

PLATE

ASSY. - actuator release (w/pin)

2шт.

9

L10177

PLATE

- implement lock

4шт.

10

T30946

BUSHING

SPACER - handle

4шт.

11

L10175

HANDLE

- release

2шт.

12

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, 3/8" x 1 3/4", Slotted

2шт.

13

A75028

PIN,36.45mm OD x 138mm L

- lower hitch (Replaces L10181)

2шт.

14

L10262

PIN

- pivot

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

15

L10261

PIN

- anchor spring

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

16

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

2шт.

17

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

2шт.

18

A56393

PIN

COTTER - hairpin

1шт.

19

A56401

PIN

- swivel

1шт.

20

A64331

BUSHING

SPACER - sway block

4шт.
