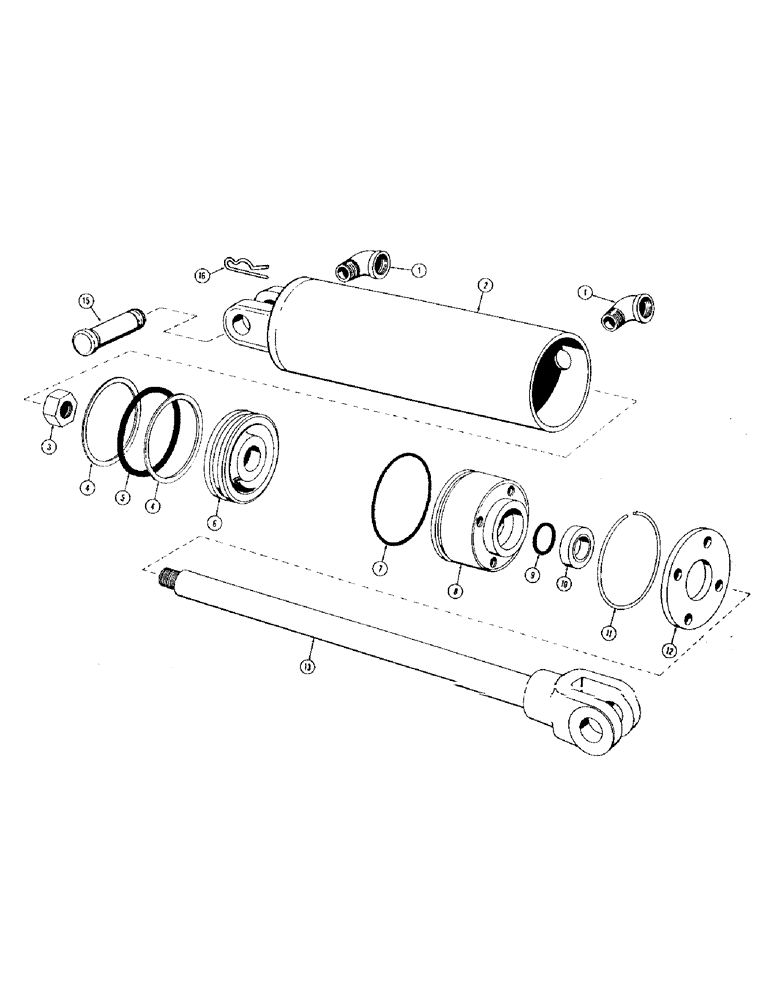

Запчасти Case IH 1470 (162) - T39000 HYDRAULIC CYLINDER, 3-1/4 X 8 FOR THREE POINT HITCH (06) - POWER TRAIN

T39000

CYLINDER ASSY. - (3-1/4" x 8"), Includes: Ref. 1 - 13

2шт.

1

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 1/2" x 90 degrees

2шт.

2

A31162

HEAD AND BODY - cylinder

1шт.

3

131-369

LOCK NUT,7/8"-14, GA

LOCKNUT - 7/8"-14

1шт.

Part of seal Kit P/N T39039

1шт.

4

A23562

OIL SEAL

RING - back-up

2шт.

Part of seal Kit P/N T39039

1шт.

5

A30893

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

"O" RING - piston

1шт.

Part of seal Kit P/N T39039

1шт.

6

T38999

PISTON - cylinder rod

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - inner cylinder head

1шт.

Part of seal Kit P/N T39039

1шт.

8

A31198

HEAD - inner, cylinder

1шт.

9

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - piston rod

1шт.

Part of seal Kit P/N T39039

1шт.

10

A26758

OIL SEAL

SEAL - oil, piston rod

1шт.

Part of seal Kit P/N T39039

1шт.

11

A31158

RING, SNAP

RING - snap, cylinder head

1шт.

12

A31199

PLATE - end, cylinder

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

92-5

LOCK WASHER,5/16"

4шт.

13

A30972

ROD ASSY. - piston

1шт.

T39039

SEAL KIT

KIT - cylinder repair (Consists of Refs. 3, 4, 5, 7, 9 and 10)

1шт.

15

A27347

PIN

- mounting cylinder

4шт.

16

A29054

HAIR PIN COTTER

COTTER - hair pin

4шт.
