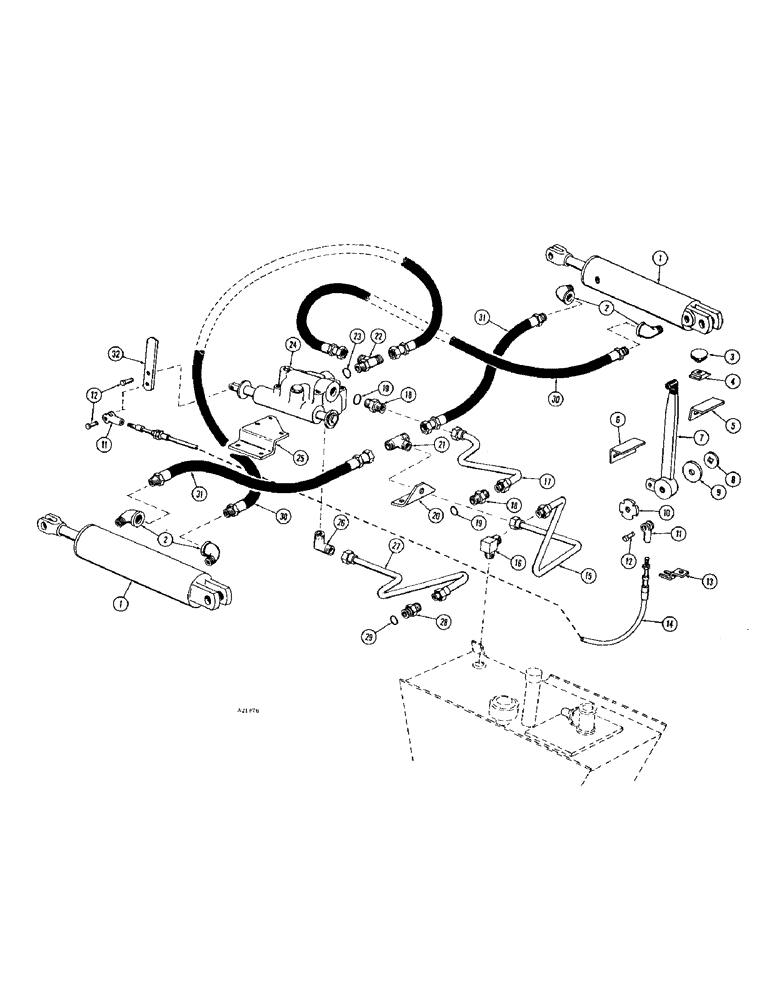

Запчасти Case IH 1470 (158) - THREE POINT HITCH CONTROLS (06) - POWER TRAIN

1

T39000

CYLINDER - hyd., cpt. (Repairs - Figure 162), Includes: Ref. 2

2шт.

2

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 1/2" x 90 degrees

4шт.

3

G15951

NUT

- knurled

2шт.

4

A56332

STOP

2шт.

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

2шт.

195-104

WASHER,3/8"

- plain 7/16" x 1" x 14 ga. Z.P.

2шт.

5

T38682

STOP - draft control, R.H.

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

T38683

STOP - draft control, L.H.

1шт.

7

T38723

LEVER - draft arm control

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" cge.

1шт.

159-33

WASHER - plain, 1/2"

1шт.

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

8

195-45

WASHER,3/4"

1шт.

9

G10786

DISC

- friction, control lever

1шт.

10

G49412

WASHER

- spring, control lever

1шт.

11

A18709

CLEVIS

YOKE - adj., 1/4" rod end

2шт.

12

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Adj. yoke 5/16" x .940"

3шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

13

T38686

STRAP - cable anchor

1шт.

14

T38709

CABLE

- control valve

1шт.

15

T38733

TUBE - cyl. return tank

1шт.

16

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degrees - 1/2" x 3/8"

1шт.

17

T38734

TUBE - pressure, hitch valve 0.75" OD

1шт.

18

218-5048

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

CONNECTOR, Includes: Ref. 19

2шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING

2шт.

20

T38498

BRACKET - tee mounting, bulkhead

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

21

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead

1шт.

195-2087

WASHER,0.81" ID x 1.12" OD x 0.15" Thk

- 1.12 x 13/16" x 9 ga.

1шт.

22

218-5246

TEE - standard thread tube, Includes: Ref. 23

1шт.

23

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING

1шт.

24

L10043

VALVE

ASSY. - depth & position (Repairs - Figure 160)

1шт.

25

T38724

BRACKET - valve mounting

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16" x 3-1/4" N.C. hex.

2шт.

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- 5/16" x 4" N.C. hex.

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

26

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

valve 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

27

T38732

TUBE - return, valve

1шт.

28

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING ASSY. - valve block, Incl. Ref. 29

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

30

T38720

HOSE - valve to cylinder (1/2" I.D. x 36")

2шт.

31

T38692

HOSE - cylinder return (1/2" I.D. x 21")

2шт.

32

T38710

LEVER - control valve arm

1шт.
