(114) - SINGLE DRIVE WHEELS

Запчасти Case IH 1470 (114) - SINGLE DRIVE WHEELS (06) - POWER TRAIN

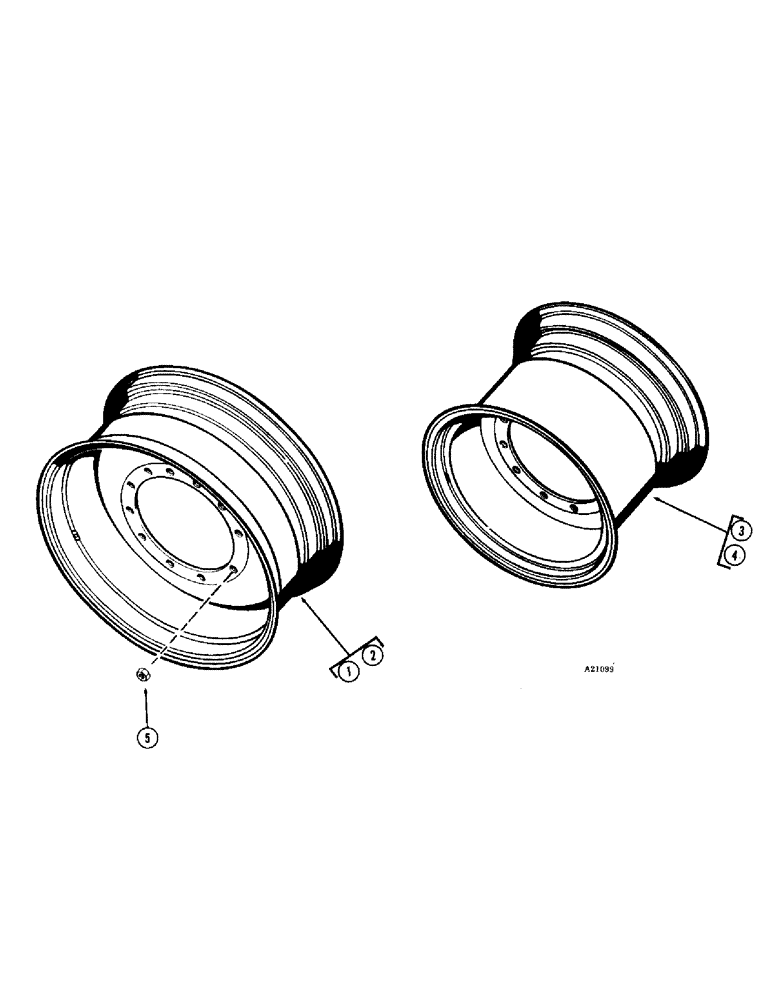

Схема запчастей Case IH 1470 - (114) - SINGLE DRIVE WHEELS (06) - POWER TRAIN
1
2
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T38668

WHEEL - drive, 18.4 x 15-30 tire

4шт.

2

T38670

WHEEL - drive, 18.4 x 15-34 tire

4шт.

3

T39983

WHEEL

- drive, 23.1 x 18-26 tire (Replaces T38669)

4шт.

3

A75078

WHEEL

- drive, 23.1 x 20-26 tire

4шт.

3

A76230

WHEEL - drive, 23.1 x 20-30 tire

4шт.

4

T39986

WHEEL

- drive, 28.1 x 25-26 tire (Replaces T38671)

4шт.

5

A12522

WHEEL NUT

- wheel

48шт.
