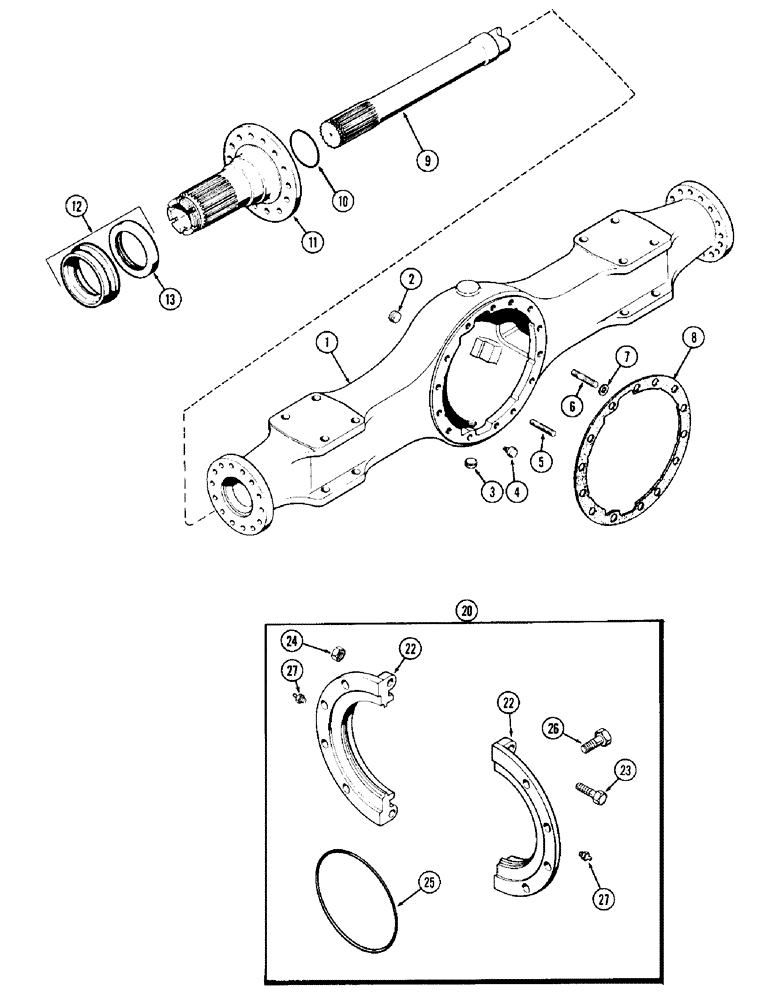

Запчасти Case IH 1470 (113A) - REAR AXLE HOUSING (06) - POWER TRAIN

T50258

AXLE ASSEMBLY - rear, non-steerable, Includes: Ref. 1 - 13

1шт.

1

T51061

HOUSING - rear axle, non-steerable, Includes: Ref. 2 - 6

1шт.

2

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, 1-1/4" sq. hd.

1шт.

3

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, 1-1/4" socket head

1шт.

4

A12928

BREATHER

- oil, axle housing

1шт.

5

L30677

STUD

- carrier to housing (Long)

4шт.

6

L30676

STUD

- carrier to housing (Short)

10шт.

7

L30678

WASHER

- housing stud

14шт.

131-60

LOCK NUT,5/8"-18

NUT - housing stud

14шт.

8

A15460

GASKET

-, Serial Range: carrier-housing

1шт.

9

T51062

SHAFT - rear axle

2шт.

10

A14986

O-RING,5" ID x 1 /8"

SEAL - ring, spindle to housing

1шт.

11

A14983

SPINDLE

- wheel

2шт.

12

A14989

CAP

RETAINER ASSY. - oil seal, wheel hub w/seal

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

20

A75035

KIT

ATTACHMENT - rear axle seal collar, Includes: Ref. 22 - 27

1шт.

A75036

COLLAR

ASSY. - axle seal, rear attachment, Includes: Ref. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

COLLAR - axle seal half (Matched set), rear attachment

2шт.

23

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Rear axle seal collar attachment Hex, 1/2"-13 x 2", G5

2шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

Rear axle seal collar attachment 1/2"-13, G5

2шт.

25

A75038

SEALING STRIP

- grease (Round strip), rear axle seal collar attachment

4шт.

26

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

Rear axle seal collar attachment Hex, 5/8"-11 x 1 3/4", G5

32шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" straight), rear axle seal collar attachment

8шт.
