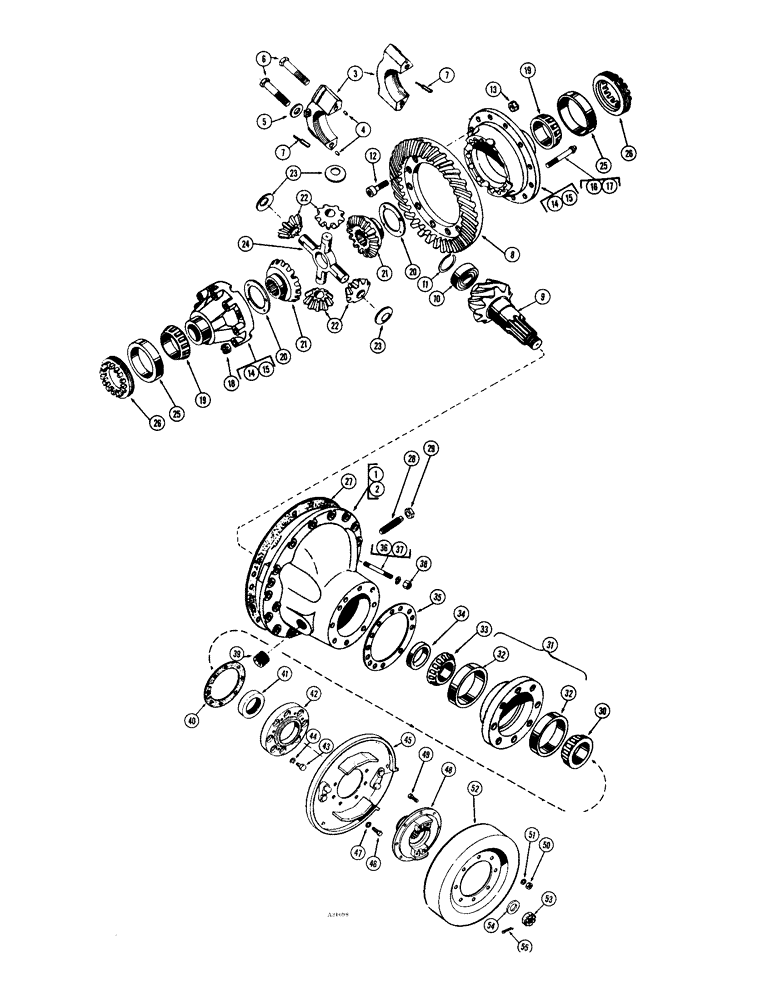

Запчасти Case IH 1470 (110) - T39194 REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

T39440

DIFFERENTIAL ASSY. - rear axle, Includes: Ref. 1 - 55

1шт.

1

L31600

CARRIER

ASSY. - differential, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order Ref. 1)

1шт.

3

NSS

NOT SOLD SEPARAT

CAP ASSY. - bearing, differential (Order Ref. 1), Includes: Ref. 4

1шт.

4

A15443

DOWEL

- bearing cap locating

2шт.

5

A16782

WASHER

- differential cap bolt

4шт.

6

A16781

SCREW,7/8" - 9 x 5 1/2", Gr 8

BOLT -, Serial Range: cap-carrier

4шт.

7

A18196

HARDWARE

PIN - cotter, diff. brg. adj. ring lock

2шт.

8

T39438

RING GEAR

GEAR & PINION ASSY. - notched diff., Includes: Ref. 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - ring (Order T39438)

1шт.

9

NSS

NOT SOLD SEPARAT

PINION & BEARING ASSY. - (Order T39438), Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

PINION - (Order T39438)

1шт.

10

A15438

BALL BEARING,1.378" ID x 3.1436" OD x 0.8868"

BEARING - rear drive pinion

1шт.

11

A15442

LOCK

RING - lock

1шт.

12

L34059

BOLT

- case to gear (1st used '73 prod.)

12шт.

12

A16438

BOLT

- case to gear (Used prior to '73 prod.)

12шт.

13

131-1137

NUT,5/8"-11, GC

- case to gear (1st used '73 prod.)

12шт.

13

129-283

NUT

- case to gear (Used prior to '73 prod.)

12шт.

14

A15469

DIFFERENTIAL ASSY

CASE ASSY. - differential (Order L32865), Includes: Ref. 15 - 24

1шт.

15

L31604

CASE SET - matched, differential

1шт.

16

A15429

BOLT

- diff. case halves (1/2" N.F. long)

8шт.

17

A15430

BOLT

- diff. case halves (1/2" N.F. short)

4шт.

18

129-282

SLOTTED NUT

- high hex. slotted, 1/2" N.F.

12шт.

19

A27024

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing, differential case

2шт.

20

A15439

WASHER

- thrust, side gear

2шт.

21

A15463

GEAR

- differential side

2шт.

22

A15462

GEAR

PINION - differential

4шт.

23

A15440

WASHER

- thrust, pinion

4шт.

24

A15471

U-JOINT SPIDER

SPIDER - ring gear pinion

1шт.

25

A15434

CUP

- bearing, differential

2шт.

26

A15465

RING

- adj., case bearing

2шт.

27

A15460

GASKET

- carrier to axle housing

1шт.

8

L31659

BOLT,7/8" x 3 5/8"

SCREW - drive gear thrust

1шт.

29

A15428

NUT

- drive screw

1шт.

30

A15435

ROLLER BEARING,2.125" ID x 1.3085"

BEARING - cone, inner

1шт.

31

A15468

CAGE

ASSY. - pinion bearing, Includes: Ref. 32

1шт.

32

A15437

BEARING, CUP,63.525 mm ID x 140.055 mm OD x 23.52, 36.71 mm

CUP - cone bearing, inner & outer

2шт.

33

A15436

ROLLER BEARING,2.25" ID x 1.3085"

BEARING - cone, pinion inner

1шт.

34

A15448

SPACER

- pinion bearing (.220)

1шт.

34

A15449

SPACER

- pinion bearing (.221)

1шт.

34

A15450

SPACER

- pinion bearing (.222)

1шт.

34

A15451

SPACER

- pinion bearing (.223)

1шт.

34

A15452

SPACER

- pinion bearing (.224)

1шт.

34

A15453

SPACER

- pinion bearing (.225)

1шт.

34

A15454

SPACER

- pinion bearing (.231)

1шт.

34

A15455

SPACER

- pinion bearing (.237)

1шт.

34

A15456

SPACER

- pinion bearing (.243)

1шт.

34

A15457

SPACER

- pinion bearing (.249)

1шт.

34

A15458

SPACER - pinion bearing (.255)

1шт.

35

A15445

SHIM

- pinion bearing cage (.005)

1шт.

35

A15446

SHIM

- pinion bearing cage (.010)

1шт.

35

A15459

SHIM

- pinion bearing cage (.003)

1шт.

36

L30676

STUD

- carrier to axle housing (Short)

10шт.

37

L30677

STUD

- carrier to axle housing (Long)

4шт.

38

131-60

LOCK NUT,5/8"-18

NUT - hex., 5/8" N.F.

14шт.

39

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, 3/4" sq. hd.

1шт.

40

A15461

GASKET

- pinion, bearing cover

1шт.

41

T39338

OIL SEAL

- oil, pinion bearing cover

1шт.

42

T39337

COVER

- pinion bearing & brake mtg.

1шт.

43

113-408

X

BOLT - hex. hd. 1/2" x 2" N.C. (Grade 8)

8шт.

44

92-8

LOCK WASHER,1/2"

8шт.

45

A25269

BACKING PLATE

PLATE ASSY. - back, parking brake

1шт.

46

L34034

BOLT

- brake plate mtg, 7/16" x 1-1/8" N.C. hex. (Grade 8)

7шт.

46

113-307

X

BOLT - 7/16 x 1-1/8" N.C. hex.

7шт.

47

92-7

LOCK WASHER,7/16"

7шт.

48

T39339

FLANGE

- companion

1шт.

49

28-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

- brake drum mtg., 3/8" x 1-1/4" N.F. hex.

8шт.

50

129-524

NUT,3/8"-24, G8

Drum mtg. bolt 3/8"-24, G8

8шт.

51

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

8шт.

52

A25271

BRAKE DRUM

DRUM - parking brake

1шт.

53

D46765

LOCK NUT

NUT - companion yoke

1шт.

54

A15441

WASHER

- companion yoke nut

1шт.

55

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

1шт.
