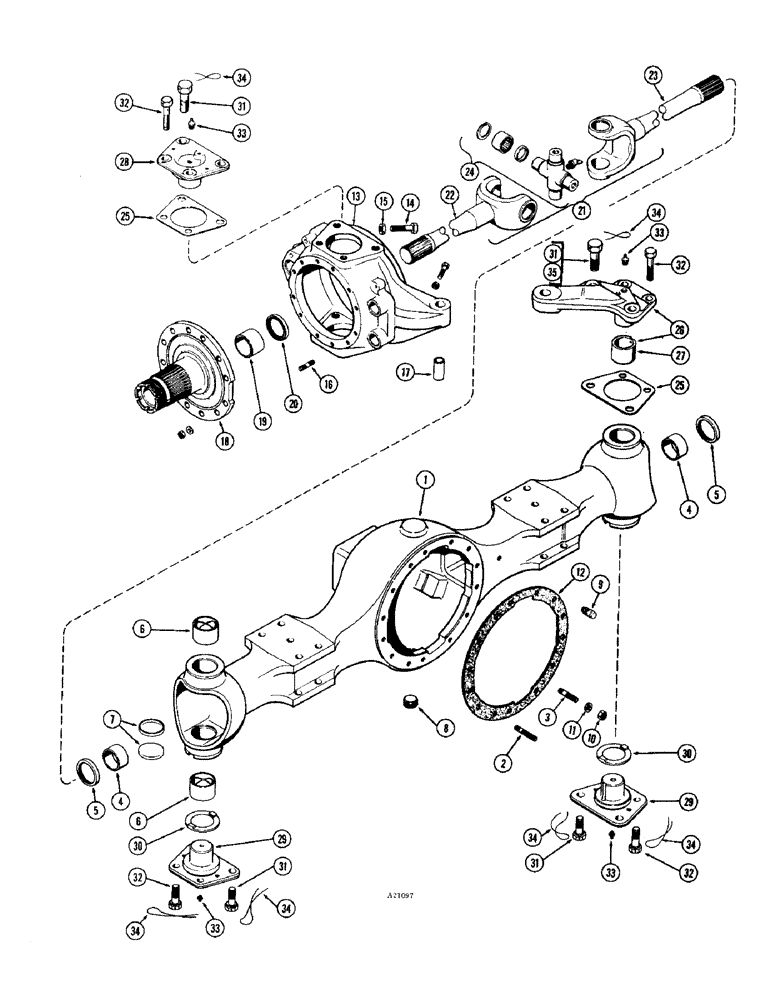

Запчасти Case IH 1470 (108) - T39194 REAR AXLE HOUSING AND KNUCKLE (06) - POWER TRAIN

1

T39340

HOUSING ASSY. - axle, rear, Includes: Ref. 2 - 7

1шт.

2

L30677

STUD

- carrier to housing (Long)

4шт.

3

L30676

STUD

- carrier to housing (Short)

10шт.

4

A25234

BUSHING,57.63mm ID x 65.2mm OD x 31.75mm L

- univ. joint & shaft support

2шт.

5

L30578

OIL SEAL

- oil, univ. joint & shaft

2шт.

6

L30579

BUSHING,62.94mm ID x 69.32mm OD x 46.74mm L

- steering bearing

4шт.

7

L34009

PLUG

- cover, steering bushing

4шт.

8

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- housing drain, 1/4" P.T. sq. sckt. hd.

1шт.

9

A12928

BREATHER

- oil, axle housing

1шт.

10

131-60

LOCK NUT,5/8"-18

NUT - housing stud, 1/2" N.F. hex. Cessna

14шт.

11

L30678

WASHER

- housing stud

14шт.

12

A15460

GASKET

-, Serial Range: carrier-housing

1шт.

13

T39333

STEERING KNUCKLE, Includes: Ref. 14 - 17

2шт.

14

113-635

X

STOP SCREW - steering

1шт.

15

L30570

NUT

- jam, stop screw

1шт.

16

L30575

STUD - spindle to steering knuckle

12шт.

17

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- tie rod steering knuckle

12шт.

18

L30605

SPINDLE

ASSY. - steering knuckle

2шт.

19

L30581

BUSHING,57.73mm ID x 65.2mm OD x 44.45mm L

- universal joint, Includes: Ref. 20

1шт.

20

L30578

OIL SEAL

- oil, universal joint

1шт.

21

T39334

UNIVERSAL JOINT

SHAFT ASSY. - univeral joint, knuckle, Includes: Ref. 22 - 24

2шт.

22

A25149

YOKE

SHAFT - universal outer

1шт.

23

T39342

JOINT

SHAFT - universal inner

1шт.

24

A25151

KIT

- universal spider

1шт.

25

L30590

SHIM

- steering knuckle cap (.003)

1шт.

25

L30591

SHIM

- steering knuckle cap (.005)

1шт.

25

L30592

SHIM

- steering knuckle cap (.020)

1шт.

26

L34052

ARM ASSY. - steering, axle (Replaces T39336), Includes: Ref. 27

1шт.

27

L30580

SLEEVE CYLINDER

SLEEVE - steering arm

1шт.

28

L34050

CAP

- upper R.H. steering knuckle (Replaces L30600)

1шт.

29

L34051

CAP

- lower, steering knuckle (Replaces L30601)

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

4шт.

30

L30583

WASHER,63.5mm ID x 85.72mm OD x 5.21mm Thk

- thrust, steering knuckle bearing

2шт.

31

L30571

BOLT (SPREADER)

BOLT - inner, knuckle cap & arm

6шт.

32

L30576

BOLT (SPREADER)

BOLT - outer, knuckle cap & arm

8шт.

33

A50096

VALVE

FITTING - relief, knuckle cap & arm

4шт.

34

NSS

NOT SOLD SEPARAT

LOCKWIRE - knuckle cap & arm bolt

16шт.

35

L30572

BOLT (SPREADER)

BOLT - inner, knuckle cap & arm

2шт.
